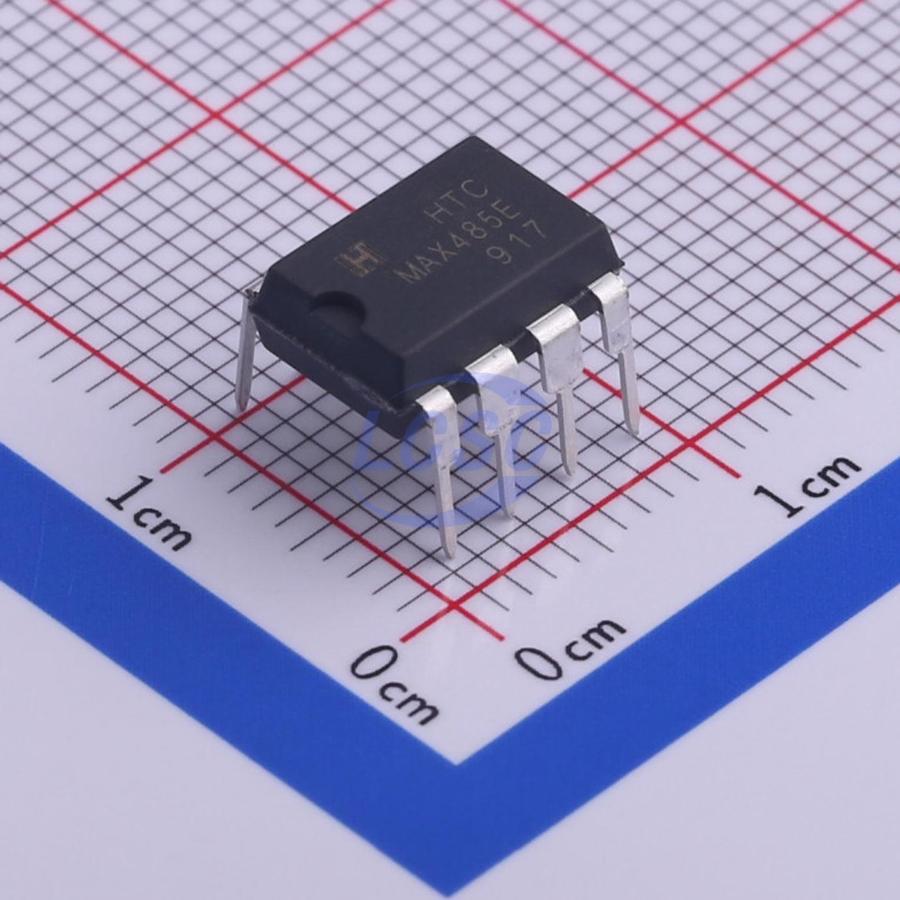

MAX485EN
4.75V~5.25V Transceiver 5Mbps 32 DIP-8 Drivers, Receivers, Transceivers RoHS
DIP-8ROHS CompliantActive
Low-Power, Slew-Rate-Limited RS-485/RS-422 Transceivers
- Manufacturer
- HTC
- Manufacturer part #
- MAX485EN
- Store part #
- C481665
- Package / case
- DIP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,410 in stock
#C481665
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹46.75 | ₹233.75 |
| 50+ | ₹37.45 | ₹1,872.50 |
| 150+ | ₹33.46 | ₹5,019.00 |
| 500+ | ₹28.48 | ₹14,240.00 |
| 2,000+ | ₹26.27 | ₹52,540.00 |
| 4,000+ | ₹24.94 | ₹99,760.00 |
5 × ₹46.75
₹233.75
excl. GST
₹275.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
MAX485EN
₹233.75 for 5 + GST
Specifications
- Voltage - Supply
- 4.75V~5.25V
- Type
- Transceiver
- Data Rate
- 5Mbps
- Number of Nodes
- 32
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±8kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown
- Number of Receivers
- 1
- Quiescent Supply Current
- 1mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.76 g
Overview
The MAX485 is a half-duplex transceiver that meets the specifications of RS-485 and RS-422. Its BiCMOS design allows low power operation without sacrificing performance. The MAX485 meets the requirements of the RS-485 and RS-422 protocols up to 5Mbps underload. The ESD tolerance is more than ±8kV for both Human Body Model and ±15kV for IEC61000-4-2 Air Discharge Method on this device.
Applications
- Low Power RS-485 Systems
- DTE-DCE Interface
- Packet Switching
- Local Area Networks
- Data Concentration
- Data Multiplexers
- Integrated Services Digital Network (ISDN)
Key features
- Single +5V Supply
- Low Power BiCMOS
- Driver/Receiver Enable for Multi-Drop Configurations
- Half-Duplex Versions Available
- Data rate: 5 Mbps
- ESD Specifications - ±15kV IEC61000-4-2 Air Discharge - ±8kV Human Body Model
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN75176N#C2835217HGSEMI · DIP-8 | HGSEMI | DIP-8 | 1,285 | ₹27.28 · 1,285 in stock | View |
 | ADM485ANZ-TUDI#C53286029Tudi · DIP-8 | Tudi | DIP-8 | 200 | ₹38.92 · 200 in stock | View |
 | ISL8485EIPZ-TUDI#C53200318Tudi · DIP-8 | Tudi | DIP-8 | 200 | ₹122.51 · 200 in stock | View |
 | ADM485JNZ-TUDI#C53286028Tudi · DIP-8 | Tudi | DIP-8 | 191 | ₹199.69 · 191 in stock | View |
 | ISL8485ECPZ-TUDI#C53200317Tudi · DIP-8 | Tudi | DIP-8 | 200 | ₹122.51 · 200 in stock | View |
