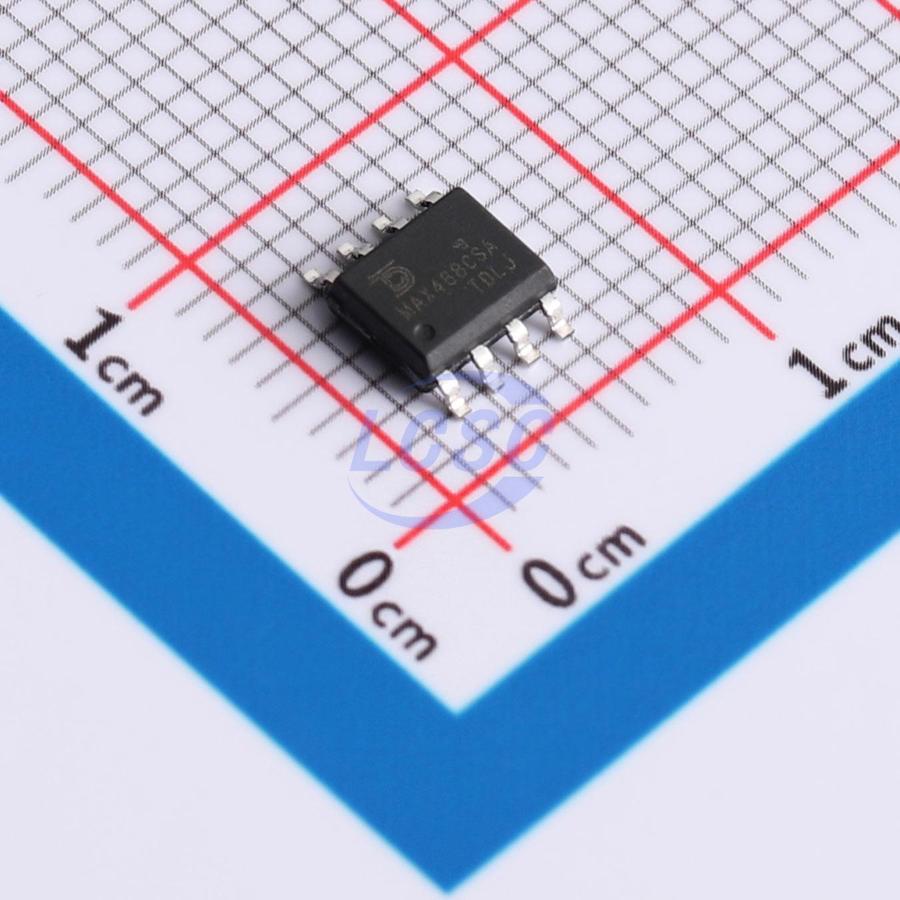

MAX488CSA-TUDI
4.5V~5.5V Transceiver 14Mbps 256 SOP-8 Drivers, Receivers, Transceivers
SOP-8RoHSActive
- Manufacturer
- Tudi
- Manufacturer part #
- MAX488CSA-TUDI
- Store part #
- C53086244
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,575 in stock
#C53086244
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.05 | ₹65.05 |
| 10+ | ₹51.39 | ₹513.90 |
| 30+ | ₹45.54 | ₹1,366.20 |
| 100+ | ₹38.17 | ₹3,817.00 |
| 500+ | ₹34.91 | ₹17,455.00 |
| 1,000+ | ₹32.96 | ₹32,960.00 |
1 × ₹65.05
₹65.05
excl. GST
₹76.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX488CSA-TUDI
₹65.05 for 1 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Type
- Transceiver
- Data Rate
- 14Mbps
- Operating Temperature
- 0℃~+70℃
- Number of Nodes
- 256
- ESD Protect
- ±15kV
- Communication Mode
- Full-Duplex
- Number of Drivers
- 1
- Features
- Overcurrent Protection
- Number of Receivers
- 1
- Quiescent Supply Current
- 220uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.133 g
Overview
TUDI-MAX488 is a full-duplex, low-power RS-485 transceiver compliant with the T/EIA-485 standard. Operating from a 4.5V to 5.5V supply, it integrates one driver and one receiver, both capable of independent signal transmission. The device features a 1/8 unit load, allowing up to 256 TUDI-MAX488 transceivers to be connected in parallel on the same communication bus. It supports error-free data transmission at rates up to 14Mbps. With an operating voltage range of 3.0V to 5.5V, it provides failsafe protection, current limiting, overvoltage protection, and hot-plug capability on control ports. The device offers excellent ESD performance with a Human Body Model protection rating of ±15KV.
Applications
- Low-power RS-485/RS-422 transceiver
- Level translator
- Transceiver for EMI-sensitive applications
- Industrial control LAN
Key features
- Strong noise immunity
- Integrated transient voltage suppression
- Data transfer rates up to 2.5Mbps in electrically noisy environments
- Supply voltage 4.5V~5.5V, full-duplex operation
- Fail-safe functionality
- 1/8 unit load, supports up to 256 devices on the bus
- Driver output short-circuit protection
- Receiver open-circuit fail-safe protection
- Port A & B protection: Human Body Model ±15KV
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX488ESA-TUDI#C53086248Tudi · SOP-8 | Tudi | SOP-8 | 109 | ₹73.51 · 109 in stock | View |
 | SN75179BDR-TUDI#C53086294Tudi · SOP-8 | Tudi | SOP-8 | 155 | ₹122.51 · 155 in stock | View |
 | LTC2851CS8-TUDI#C53200423Tudi · SOP-8 | Tudi | SOP-8 | 200 | ₹325.01 · 200 in stock | View |
 | SN75179ADR-TUDI#C53086293Tudi · SOP-8 | Tudi | SOP-8 | 200 | ₹216.60 · 200 in stock | View |
 | LTC490CS8-TUDI#C53086203Tudi · SOP-8 | Tudi | SOP-8 | 180 | ₹352.33 · 180 in stock | View |
