MAXIM

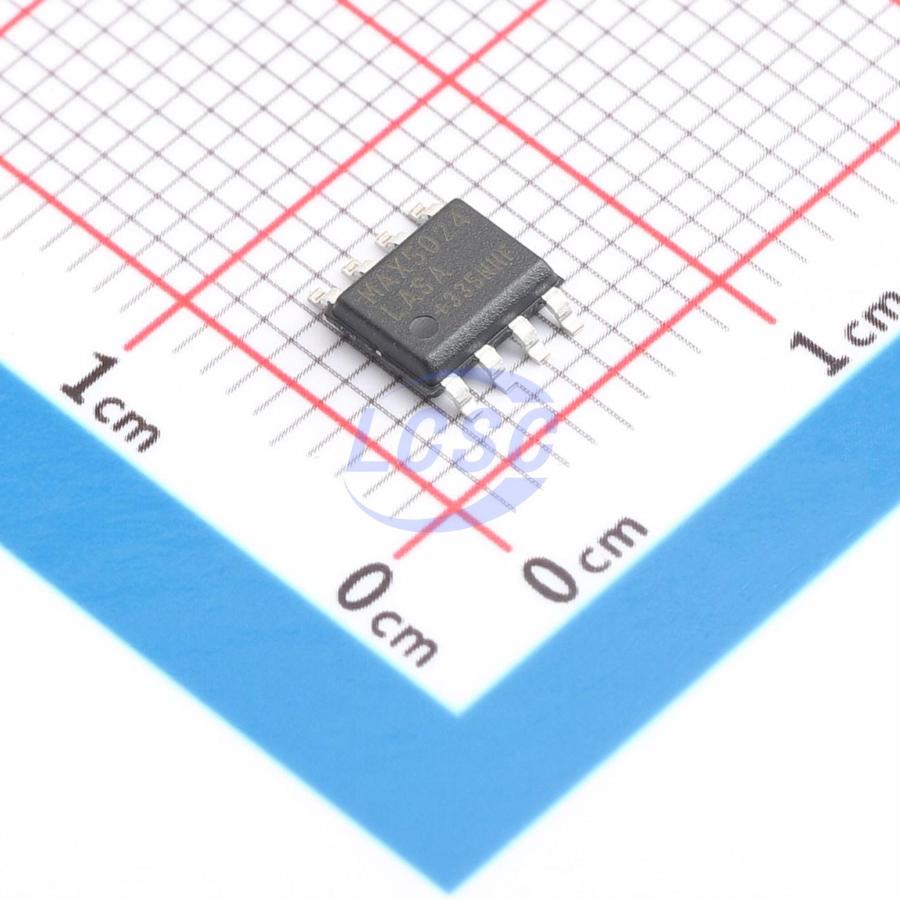

MAX5024LASA+T

Positive SOIC-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOIC-8ROHS3 CompliantActive

65V, Low-Quiescent-Current, High-Voltage Linear Regulators with μP Reset and Watchdog Timer

Manufacturer: MAXIM
Manufacturer part #: MAX5024LASA+T
Store part #: C2682661
Package / case: SOIC-8
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10 in stock

#C2682661

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹1,009.57	₹1,009.57
10+	₹985.66	₹9,856.60
30+	₹970.02	₹29,100.60
100+	₹954.16	₹95,416.00

Quantity (min 1)

1 × ₹1,009.57

₹1,009.57

excl. GST

₹1,191.29 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

MAX5024LASA+T

₹1,009.57 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 5V;2.5V~11V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Ta)
Supply Current (Iq): 140uA
Output Configuration: Positive
Operating Voltage: 65V
Output Current: 150mA
Features: Enable control;Reset function;Reverse polarity voltage protection;Short Circuit Protection;Thermal shutdown;Over Current Protection;Operating status indication
Output Type: Fixed;Adjustable

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.213 g

Overview

The MAX5023/MAX5024 high-voltage linear regulators operate from a +6.5V to +65V input voltage and deliver up to 150mA of output current. These devices consume only 60μA of quiescent current with no load and withstand a -60V reverse-battery voltage at the input. The MAX5023/ MAX5024 include an active-low internal microprocessor (μP) reset circuit that asserts when the regulator output drops below the preset output voltage threshold by 7.5% or 12.5%, depending on the device selected. Both devices are available with a fixed +3.3V or +5V output. These devices are short-circuit protected and include thermal shutdown. In addition to an enable input to turn on or off the regulator, the MAX5023/MAX5024 include a HOLD input that allows for the implementation of a self-holding circuit without requiring external components. Setting HOLD low after enabling the regulator, forces the regulator to remain on even if EN is subsequently set low. Releasing HOLD shuts down the regulator. The MAX5023 includes a watchdog input that monitors a pulse train from the μP and generates reset pulses if the watchdog input remains high or low for a duration longer than the 1.6s watchdog timeout period. The MAX5024 includes a SET input which, when connected to ground, selects a preset output voltage of +3.3V (MAX5024S/ MAX5024T) or +5V (MAX5024L/MAX5024M). Set the adjustable output voltage by connecting SET to the regulator’s output through a resistive-divider network. The MAX5023/MAX5024 operate over the automotive temperature range (-40°C to +125°C) and are available in a thermally enhanced, surface-mount 8-pin SO-EP package.

Applications

Automotive
Industrial
Home Security
Fire/Smoke Alarms
Telecom/Networking

Key features

Wide Operating Input Voltage Range +6.5V to +65V
Thermally Enhanced 8-Pin SO Package with Exposed Pad Dissipates 1.5W
Guaranteed 150mA Output Current
60μA No-Load Supply Current
-60V Reverse-Battery Protection
Preset +3.3V or +5.0V Output Voltage
Thermal and Short-Circuit Protection
Operate Over -40°C to +125°C Temperature Range
Integrated μP Reset Circuit
Watchdog Timer with 1.6s Timeout Period (MAX5023) Regulator Enable and Hold Inputs Implement SelfHolding Circuit
SET Input for Adjustable Output Voltage (MAX5024)
