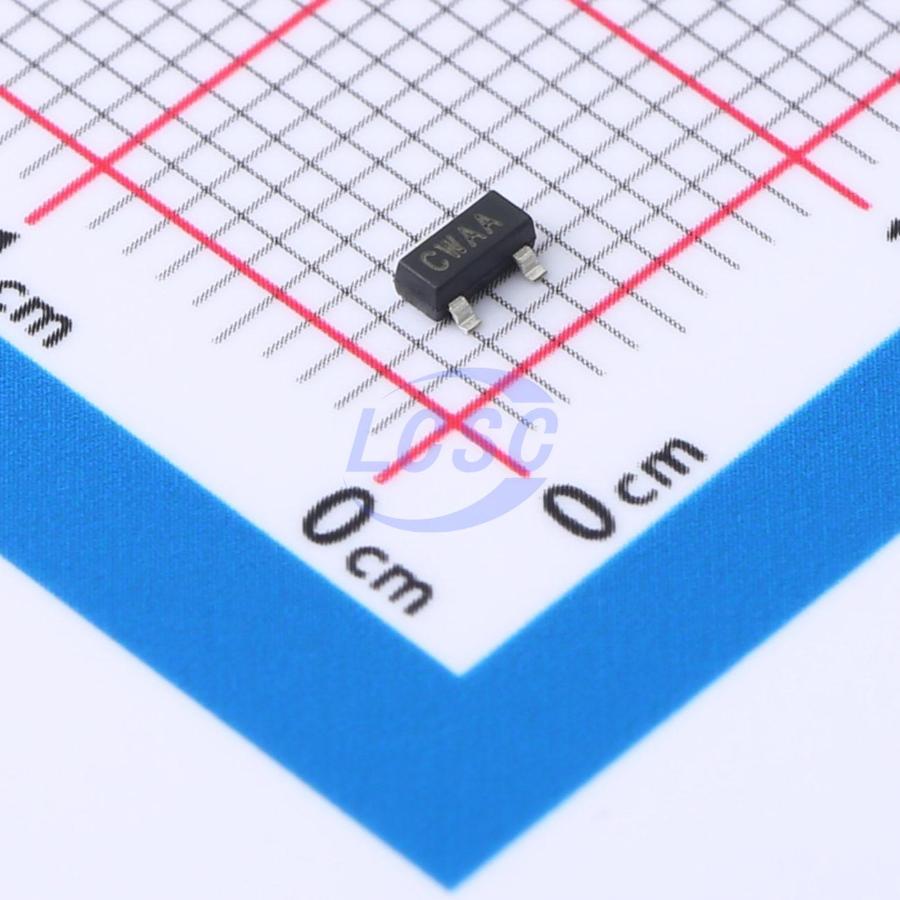

MAX809J
Supervisor Push-Pull 1 Channel SOT-23
Microprocessor Voltage Detection and Reset IC
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- MAX809J
- Store part #
- C7202963
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,240 in stock
#C7202963
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹8.80 | ₹44.00 |
| 50+ | ₹7.75 | ₹387.50 |
| 150+ | ₹7.24 | ₹1,086.00 |
| 500+ | ₹6.84 | ₹3,420.00 |
| 3,000+ | ₹6.52 | ₹19,560.00 |
| 6,000+ | ₹6.36 | ₹38,160.00 |
5 × ₹8.80
₹44.00
excl. GST
₹51.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MAX809J
₹44.00 for 5 + GST
Specifications
- Reset Timeout
- 140ms
- output type
- Push-pull
- Operating Temperature
- -40℃~+85℃
- Reset Active Level
- Active Low
- standby current
- 14uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage Detector
- Threshold Voltage
- 4V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
Voltage monitoring IC for power supply voltage supervision in digital systems, operating over the industrial-grade temperature range. The MAX809 asserts a reset signal low when the system supply voltage drops below the threshold, and deasserts the reset signal high at least 140ms after the supply voltage recovers above the threshold. The MAX809 series supports any customer-specified threshold voltage. Seven standard industrial threshold options are currently available, covering four supply voltage categories: 5.0V, 3.3V, 3.0V, and 2.5V. The MAX809 features a push-pull output stage that drives the reset output high when the monitored voltage exceeds the threshold. Fast power supply transients, glitches, and noise are filtered internally to prevent false triggering, while correct output logic and full performance specifications are guaranteed even with supply voltages as low as 1.0V. The MAX809 is available in a compact 3-pin SOT-23 package.
Applications
- Computers, servers, laptops, modems
- Wireless switches
- Embedded systems
- Home appliances, power meters
- PDAs and handheld devices
Key features
- Industrial temperature range operation: -40°C to +85°C
- Operates down to 1V supply voltage
- Power supply glitch immunity
- Available in SOT-23 package
- Lead-free and RoHS compliant
