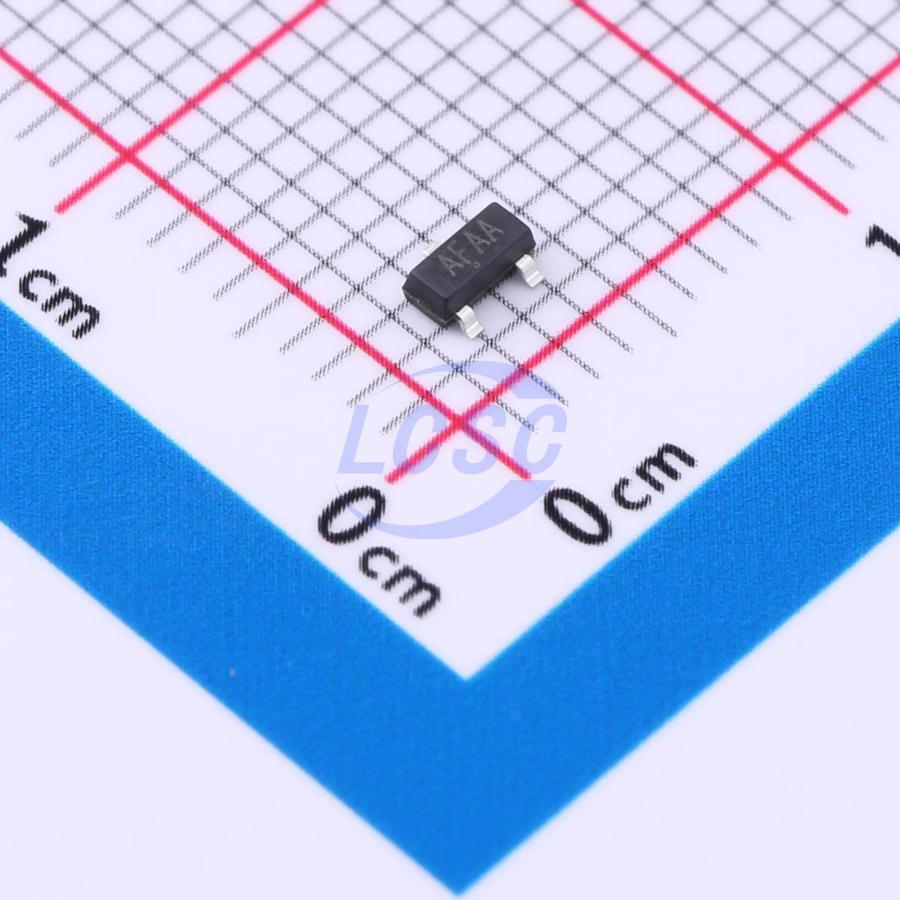

MAX809R
Supervisor Push-Pull 1 Channel SOT23
Microprocessor Voltage Detection and Reset IC
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- MAX809R
- Store part #
- C5370951
- Package / case
- SOT23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,950 in stock
#C5370951
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.79 | ₹77.90 |
| 100+ | ₹6.18 | ₹618.00 |
| 300+ | ₹5.38 | ₹1,614.00 |
| 3,000+ | ₹4.78 | ₹14,340.00 |
| 6,000+ | ₹4.30 | ₹25,800.00 |
| 9,000+ | ₹4.06 | ₹36,540.00 |
10 × ₹7.79
₹77.90
excl. GST
₹91.92 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MAX809R
₹77.90 for 10 + GST
Specifications
- Reset Timeout
- 140ms
- output type
- Push-pull
- Operating Temperature
- -40℃~+85℃
- Reset Active Level
- Active Low
- standby current
- 10uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.63V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
Voltage supervisor IC for power supply voltage monitoring in digital systems, operating over the industrial-grade temperature range. The MAX809 generates a reset signal that asserts low when the system supply voltage falls below the threshold, and deasserts high at least 140ms after the supply voltage recovers above the threshold. The MAX809 series supports any customer-specified threshold voltage. Seven standard industrial threshold options are currently available, covering four supply voltage categories: 5.0V, 3.3V, 3.0V, and 2.5V. The MAX809 features a push-pull output stage that drives the reset output high when the monitored voltage exceeds the threshold. Fast power supply transients, glitches, and noise are filtered out to prevent false triggering, while correct output logic and full performance specifications are guaranteed at supply voltages as low as 1.0V. The MAX809 is available in a compact 3-pin SOT-23 package.
Applications
- Computers, servers, laptops, modems
- Wireless switches
- Embedded systems
- Home appliances, electricity meters
- PDAs and handheld devices
Key features
- Industrial temperature range operation: -40°C to +85°C
- Operational down to 1V supply voltage
- Power supply glitch immunity
- Available in SOT-23 package
- Lead-free and RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX809S#C5370953TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 7,960 | ₹9.06 · 7,960 in stock | View |
 | TPAX809RS3#C5370950TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,41,485 | ₹8.00 · 1,41,485 in stock | View |
 | TPAX809SS3#C5370952TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,305 | ₹10.91 · 1,305 in stock | View |
 | TPAX809RRGS3#C50314355TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 200 | ₹15.39 · 200 in stock | View |
 | TPMCP112T-270E/TT#C50314375TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,165 | ₹13.42 · 1,165 in stock | View |
