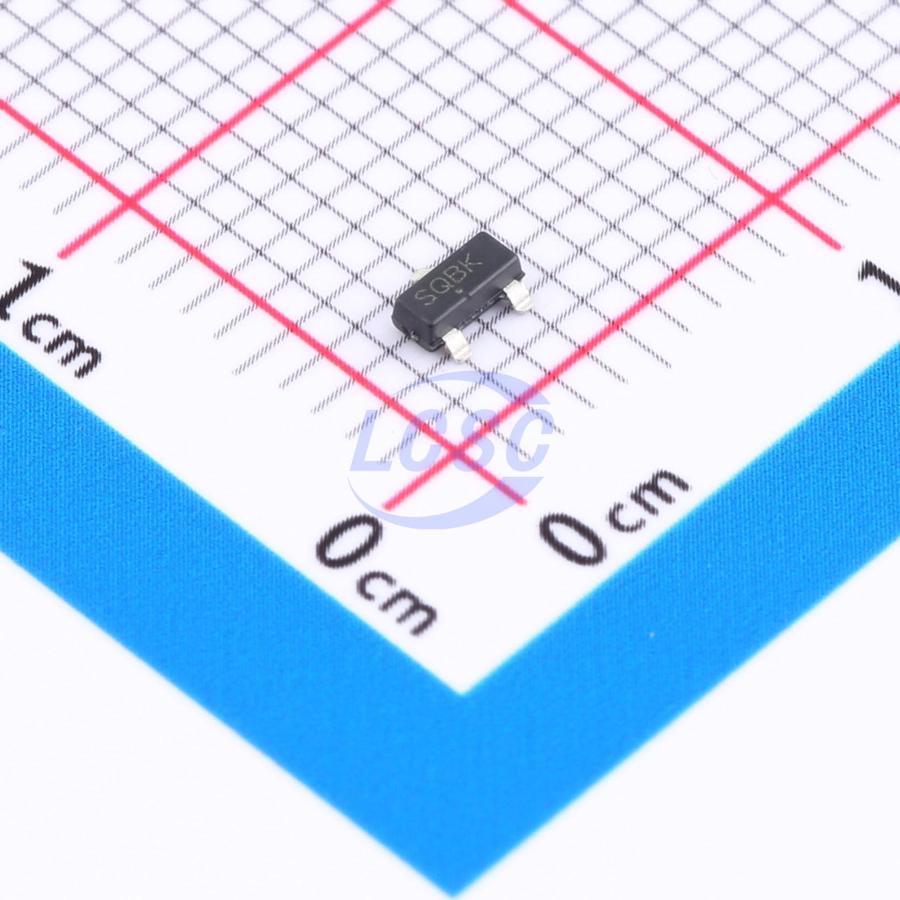

MAX810LTRG
140ms Active High 4.63V 1 SOT-23 Supervisors RoHS
3-Pin Microprocessor Reset Monitors
- Manufacturer
- onsemi
- Manufacturer part #
- MAX810LTRG
- Store part #
- C233651
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,920 in stock
#C233651
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹48.20 | ₹241.00 |
| 50+ | ₹38.35 | ₹1,917.50 |
| 150+ | ₹34.13 | ₹5,119.50 |
| 500+ | ₹28.87 | ₹14,435.00 |
| 3,000+ | ₹22.13 | ₹66,390.00 |
| 6,000+ | ₹20.72 | ₹1,24,320.00 |
5 × ₹48.20
₹241.00
excl. GST
₹284.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MAX810LTRG
₹241.00 for 5 + GST
Specifications
- Reset Timeout
- 140ms
- Operating Temperature
- -40℃~+105℃@(TA)
- output type
- Push-pull
- Reset Active Level
- Active High
- standby current
- 500nA
- Voltage - Supply
- 4.63V
- ChipType
- Voltage monitor
- Threshold Voltage
- 4.63V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
The MAX809 and MAX810 are cost−effective system supervisor circuits designed to monitor VCC in digital systems and provide a reset signal to the host processor when necessary. No external components are required. The reset output is driven active within 10 μsec of VCC falling through the reset voltage threshold. Reset is maintained active for a timeout period which is trimmed by the factory after VCC rises above the reset threshold. The MAX810 has an active−high RESET output while the MAX809 has an active−low RESET output. Both devices are available in SOT−23 and SC−70 packages. The MAX809/810 are optimized to reject fast transient glitches on the VCC line. Low supply current of 0.5 μA (VCC = 3.2 V) makes these devices suitable for battery powered applications.
Applications
- Computers
- Embedded Systems
- Battery Powered Equipment
- Critical Microprocessor Power Supply Monitoring
Key features
- Precision VCC Monitor for 1.5 V, 2.5 V, 3.0 V, 3.3 V, and 5.0 V Supplies
- Precision Monitoring Voltages from 1.2 V to 4.9 V Available in 100 mV Steps
- Four Guaranteed Minimum Power−On Reset Pulse Width Available (1 ms, 20 ms, 100 ms, and 140 ms)
- RESET Output Guaranteed to VCC = 1.0 V
- Low Supply Current
- Compatible with Hot Plug Applications
- VCC Transient Immunity
- No External Components
- Wide Operating Temperature: -40°C to 105°C
- These Devices are Pb−Free and are RoHS Compliant
