MAXIM

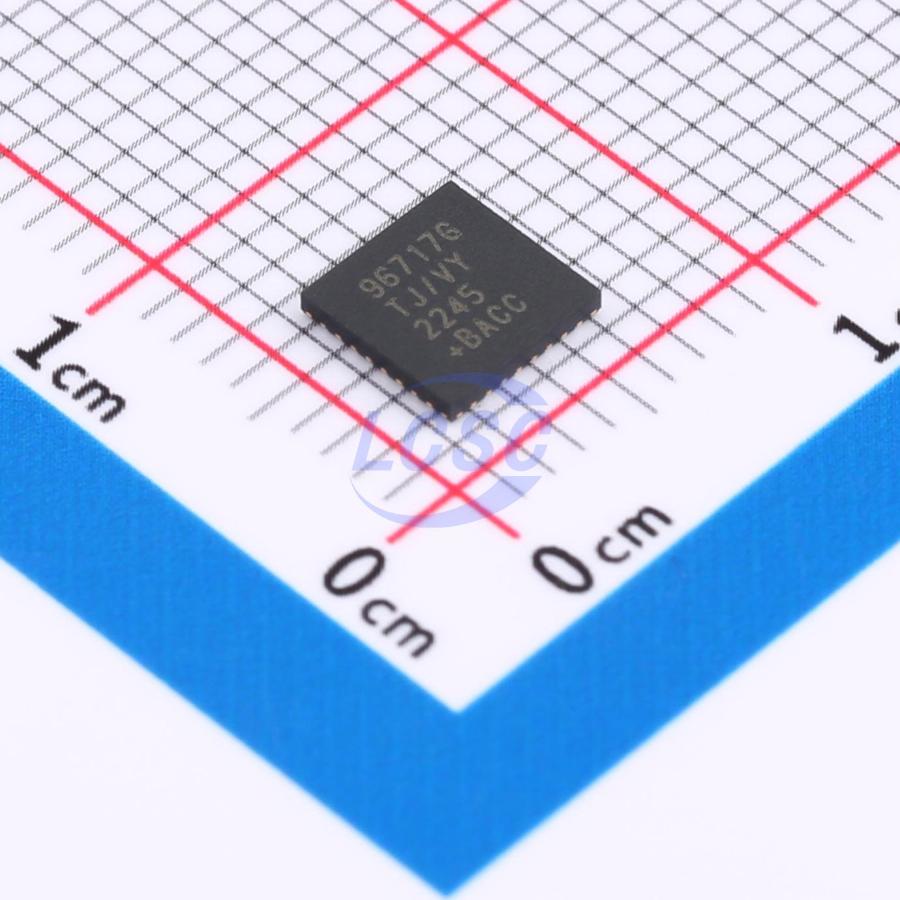

MAX96717GTJ/VY+T

25MHz 6Gbps 4 Serializer 1.7V~3.6V TQFN-32-EP(5x5) Serializers, Deserializers RoHS

TQFN-32-EP(5x5)ROHS CompliantActive

CSI-2 to GMSL2 Serializer

Manufacturer: MAXIM
Manufacturer part #: MAX96717GTJ/VY+T
Store part #: C7528388
Package / case: TQFN-32-EP(5x5)
Category: Serializers, Deserializers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,344 in stock

#C7528388

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹770.07	₹770.07
10+	₹667.84	₹6,678.40
30+	₹605.76	₹18,172.80
100+	₹553.46	₹55,346.00

Quantity (min 1)

1 × ₹770.07

₹770.07

excl. GST

₹908.68 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

MAX96717GTJ/VY+T

₹770.07 for 1 + GST

Specifications

Output: GMSL
Clock Frequency: 25MHz
Input: CSI-2
Data Rate: 6Gbps
Number of ports: 4
Type: Serializer
Voltage - Supply: 1.7V~3.6V
Parallel Bit Count Per Channel: 4
Features: Adaptive receive equalization;Built-in phase-locked loop;Clock synchronization and data alignment;Link status monitoring
Operating Temperature: -40℃~+105℃
Control Interface: I2C;UART

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.094 g

Overview

The MAX96717 GMSL serializer receives video on an MIPI CSI - 2 interface and outputs it on a GMSL2 serial link transceiver. Simultaneously, it sends and receives bidirectional control channel data across the same GMSL2 link. GMSL2 data can be transported over Coaxial or Shielded - Twisted Pair (STP) cables. It operates at a fixed rate of 3Gbps or 6Gbps in the forward direction, and 187.5Mbps in the reverse direction. The device is programmed through a local I2C/UART interface or across the link from a matching deserializer. The MAX96717 includes two I2C/UART pass - through channels, flexible GPIO, SPI tunnel, a built - in ADC, temperature sensor, and an extensive set of diagnostics for functional safety. Operation is specified over the automotive temperature range of - 40°C to + 105°C and the device is AEC - Q100 Grade 2 qualified.

Applications

Advanced Driver Assistance Systems (ADAS)
8Mp 40fps Forward - Vision Camera (FVC) Systems
Surround View Systems (SVS)
Driver Monitor Systems (DMS)
Rear - View Camera (RVC) Systems with Multiple Synchronized Cameras

Key features

Automotive Grade High Speed Link
-21.0dB at 3GHz (6Gbps) Max Insertion Loss
-19.5dB at 1.5GHz (3Gbps) Max Insertion Loss
Auto Adapt for Changes in Channel Conditions
Operates at -40°C to +105°C Ambient
Four - Lane MIPI CSI - 2 v1.3 Input Port
MIPI D - PHY v1.2 Receivers rated at 2.5Gbps per Lane
Supports any CSI - 2 Data Type in Tunneling Mode
Cyclic Redundancy Check (CRC), and Error Correction Code (ECC)
16 Virtual Channels
Polarity Flip and Data Lane Reassignment
Full - Duplex Communication Over a Single Wire
3Gbps or 6Gbps Forward - Link Rates, and 187.5Mbps Reverse - Link Rate
ASIL - B Compliant
End - to - End Data Integrity through CRC in Tunneling Mode
R - S Forward - Error Correction (FEC) for Protection of Forward Video and Control - Channel Data
CRC Protection of Side - Channel and Video Data
Power - on Self Test
Concurrent Side Channel for Device Configuration and Communication with Peripherals
I2C/UART, Pass - Through I2C/UART, SPI, GPIO, and Register - Programmable GPIO
Crystal - Free Operation Using Reference Over Reverse (RoR) Clocking
Reference Clock Output for Image Sensor
Built - in ADC and Temperature Sensor
Compact 5mm x 5mm TQFN Side - Wettable Package with 0.5mm Pitch
