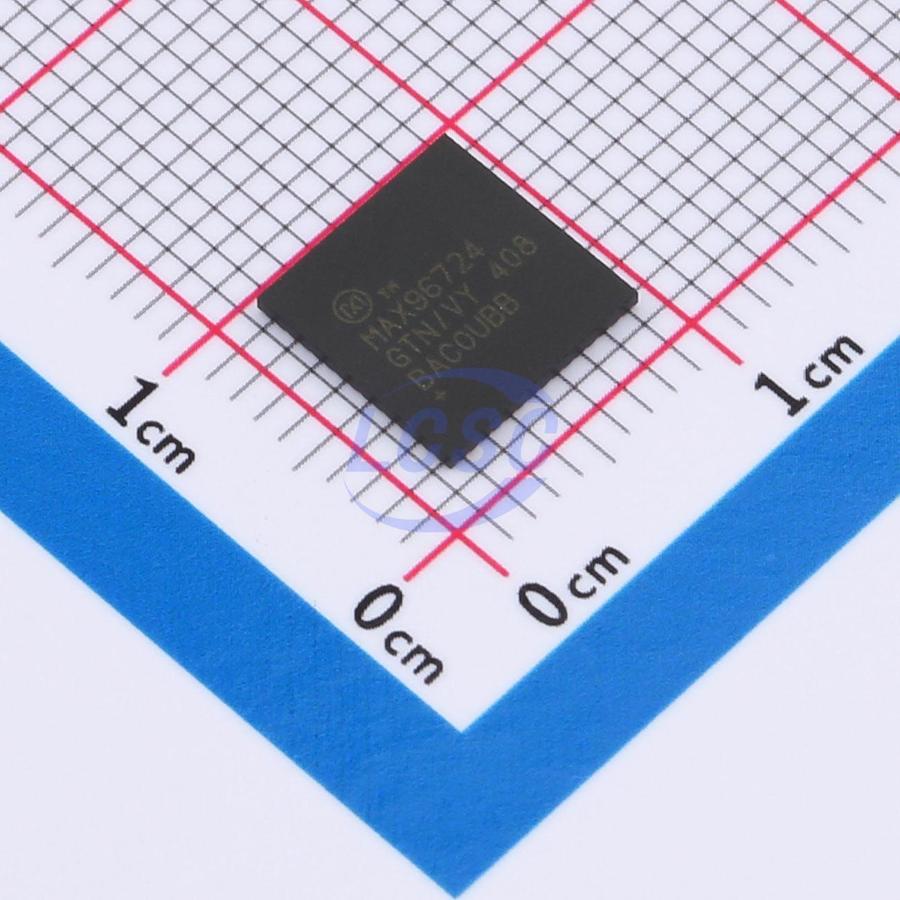

MAX96724GTN/VY+T

The MAX96724/F/R deserializer converts four GMSL™2/1 inputs to 1, 2, or 4 MIPI D-PHY or C-PHY outputs. The device allows simultaneous transmit bidirectional transmissions over 50Ω coax or 100Ω STP cables that meet the GMSL channel specification. Up to four remotely located sensors can be supported using industry-standard coax or STP interconnects. Each GMSL2 serial link operates at a fixed rate of 3Gbps or 6Gbps in the forward direction and 187.5Mbps in the reverse direction. The MAX96724/F/R supports both aggregation and replication of video data, enabling streams from multiple remotely located sensors to be combined and routed to one or more of the available CSI-2 outputs.

Applications

• High-Resolution Camera Systems
• Advanced Driver Assistance Systems (ADAS)

Key features

• -21.0dB at 3.06Hz (6Gbps) Max Insertion Loss
• -19.5dB at 1.5GHz (3Gbps) Max Insertion Loss
• Auto Adapt for Changes in Channel Conditions
• Operates at -40°C to +105°C Ambient
• Quad Independently Configurable GMSL Inputs
• 6/3Gbps GMSL2 and 3.12Gbps GMSL1 Link-Rates
• 187.5Mbps/1Mbps (GMSL2/1) Reverse Link-Rates
• Support for Mixed GMSL2/1 Pixel and Tunnel Inputs
• 2×4 or 4×2 Lane MIPI CSI-2 v1.3 Outputs
• MIPI D-PHY v1.2 Rated at 2.5Gbps/Lane
• C-PHY v1.0 Rated at 5.7Gbps/Lane
• Aggregation and Replication Functions
• 16/32 Virtual channel support for D-PHY/C-PHY
• Auto D-PHY (Imager) to C-PHY (SoC) Conversion
• Reference over Reverse (RoR) Clocking
• Bidirectional Reverse Channel Supports
• 9x Configurable GPIOs
• 2×120 Ports, up to 1Mbps
• ASIL-B Compliant (MAX96724/F)
• Ease of Use Features Reduce BOM and Space Savings
• Small 8x8mm TQFN Standard and Side-Wettable
• Industry's Smallest Power-over-Coax (PoC)
