onsemiDatasheet (PDF)

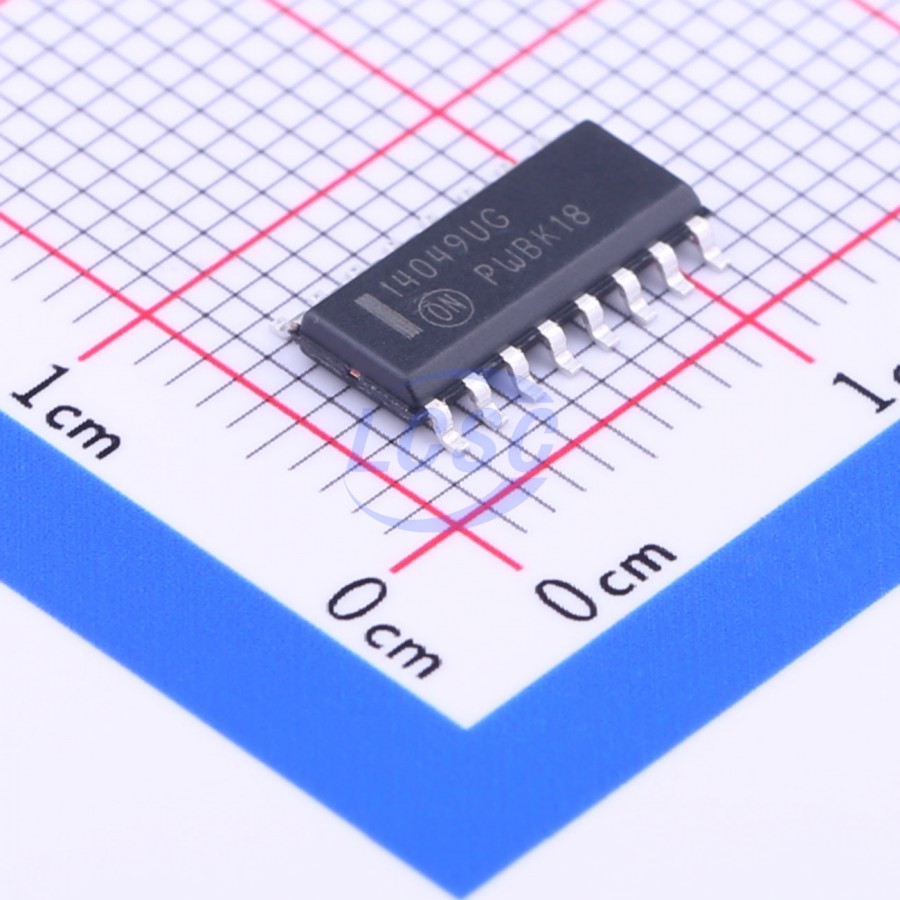

MC14049UBDR2G
4uA 3V~18V 6 50ns@15V,50pF SOIC-16 Gates and Inverters RoHS
SOIC-16ROHS3 CompliantActive
Hex Buffers
- Manufacturer
- onsemi
- Manufacturer part #
- MC14049UBDR2G
- Store part #
- C233449
- Package / case
- SOIC-16
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14,610 in stock
#C233449
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.46 | ₹177.30 |
| 50+ | ₹28.21 | ₹1,410.50 |
| 150+ | ₹25.10 | ₹3,765.00 |
| 500+ | ₹18.03 | ₹9,015.00 |
| 2,500+ | ₹16.31 | ₹40,775.00 |
| 5,000+ | ₹15.27 | ₹76,350.00 |
5 × ₹35.46
₹177.30
excl. GST
₹209.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC14049UBDR2G
₹177.30 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+125℃
- Logic Family
- 4000B
- Input Logic Level - Low
- 1V~2.5V
- Input Logic Level - High
- 4V~12.5V
- Quiescent Current(Iq)
- 4uA
- Voltage - Supply
- 3V~18V
- Current - Output High(IOH)
- 10mA
- Number of Channels
- 6
- Propagation Delay
- 50ns@15V,50pF
- Current - Output Low(IOL)
- 40mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.294 g
Overview
The MC14049UB hex inverter/buffer is constructed with MOS P−channel and N−channel enhancement mode devices in a single monolithic structure. This complementary MOS device finds primary use where low power dissipation and/or high noise immunity is desired. This device provides logic−level conversion using only one supply voltage, VDD. The input−signal high level (VIH) can exceed the VDD supply voltage for logic−level conversions. Two TTL/DTL Loads can be driven when the device is used as CMOS−to−TTL/DTL converters (ΔVDD = 5.0 V, VOL ≤ 0.4 V, IOL ≥ 3.2 mA).
Key features
- High Source and Sink Currents
- High−to−Low Level Converter
- Supply Voltage Range = 3.0 V to 18 V
- Meets JEDEC UB Specifications
- VIN can exceed VDD
- Improved ESD Protection on All Inputs
- These Devices are Pb−Free and are RoHS Compliant
- NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
