onsemiDatasheet (PDF)

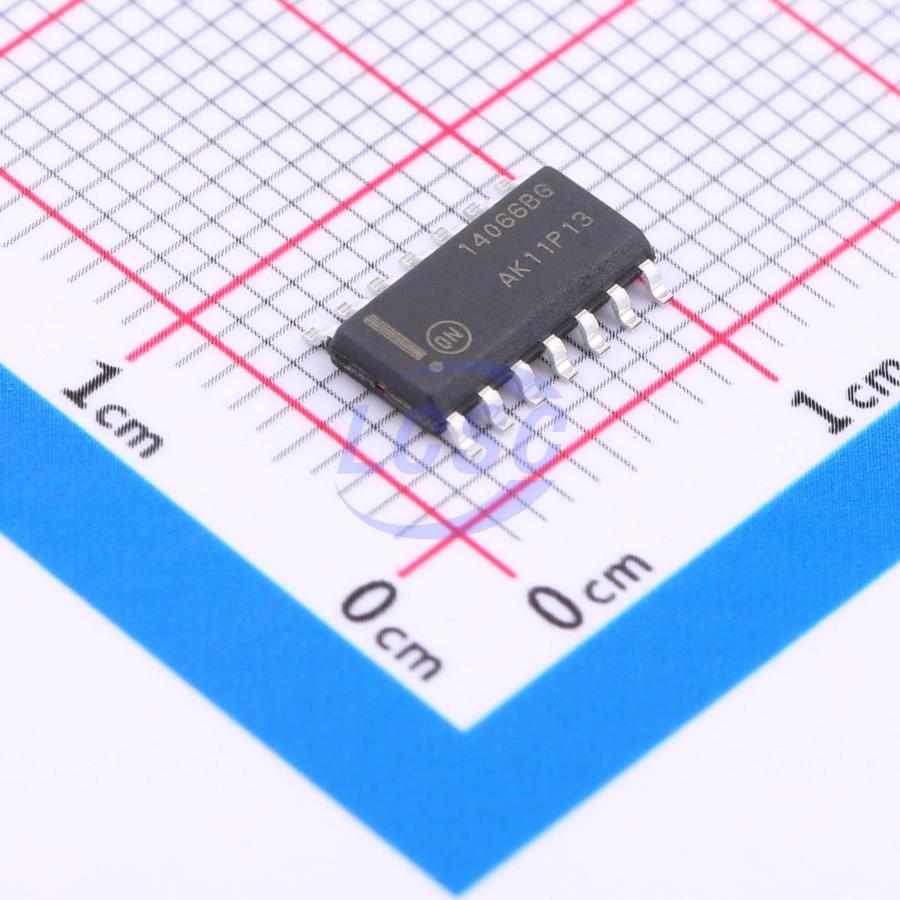

MC14066BDR2G
250Ω 4 3V~18V 20ns Fault protection SOP-14 Signal Switches, Multiplexers, Decoders RoHS
SOP-14ROHS3 CompliantActive
Quad Analog Switch/Quad Multiplexer
- Manufacturer
- onsemi
- Manufacturer part #
- MC14066BDR2G
- Store part #
- C52828
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,870 in stock
#C52828
Stock & price checked 28 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.08 | ₹180.40 |
| 50+ | ₹28.15 | ₹1,407.50 |
| 150+ | ₹24.75 | ₹3,712.50 |
| 500+ | ₹19.47 | ₹9,735.00 |
| 2,500+ | ₹17.58 | ₹43,950.00 |
| 5,000+ | ₹16.46 | ₹82,300.00 |
5 × ₹36.08
₹180.40
excl. GST
₹212.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC14066BDR2G
₹180.40 for 5 + GST
Specifications
- Ron
- 250Ω
- Number of Channels
- 4
- Voltage - Supply
- 3V~18V
- Operating Temperature
- -55℃~+125℃
- Propagation Delay
- 20ns
- Function
- Fault protection
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.281 g
Overview
The MC14066B consists of four independent switches capable of controlling either digital or analog signals. This quad bilateral switch is useful in signal gating, chopper, modulator, demodulator and CMOS logic implementation. The MC14066B is designed to be pin−for−pin compatible with the MC14016B, but has much lower ON resistance. Input voltage swings as large as the full supply voltage can be controlled via each independent control input.
Key features
- Triple Diode Protection on All Control Inputs
- Supply Voltage Range = 3.0 Vdc to 18 Vdc
- Linearized Transfer Characteristics
- Low Noise - 12 nV/√Cycle, f ≥ 1.0 kHz typical
- Pin−for−Pin Replacement for CD4016, CD4016, MC14016B
- For Lower RON, Use The HC4066 High−Speed CMOS Device
- NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb−Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CD4066BM-TD#C42421849TDSEMIC · SOP-14 | TDSEMIC | SOP-14 | 2,745 | ₹14.45 · 2,745 in stock | View |
 | TC4066BFELNF#C6551975TOSHIBA · SOP-14 | TOSHIBA | SOP-14 | 117 | ₹61.80 · 117 in stock | View |
 | CD4066BD#C558790HTC · SOP-14 | HTC | SOP-14 | 2,405 | ₹40.77 · 2,405 in stock | View |
 | CD4066BQDRQ1#C544588TI · SOIC-14 | TI | SOIC-14 | 2 | ₹90.35 · 2 in stock | View |
 | HEF4066BT-Q100J#C551463Nexperia · SO-14 | Nexperia | SO-14 | 80 | ₹87.17 · 80 in stock | View |
