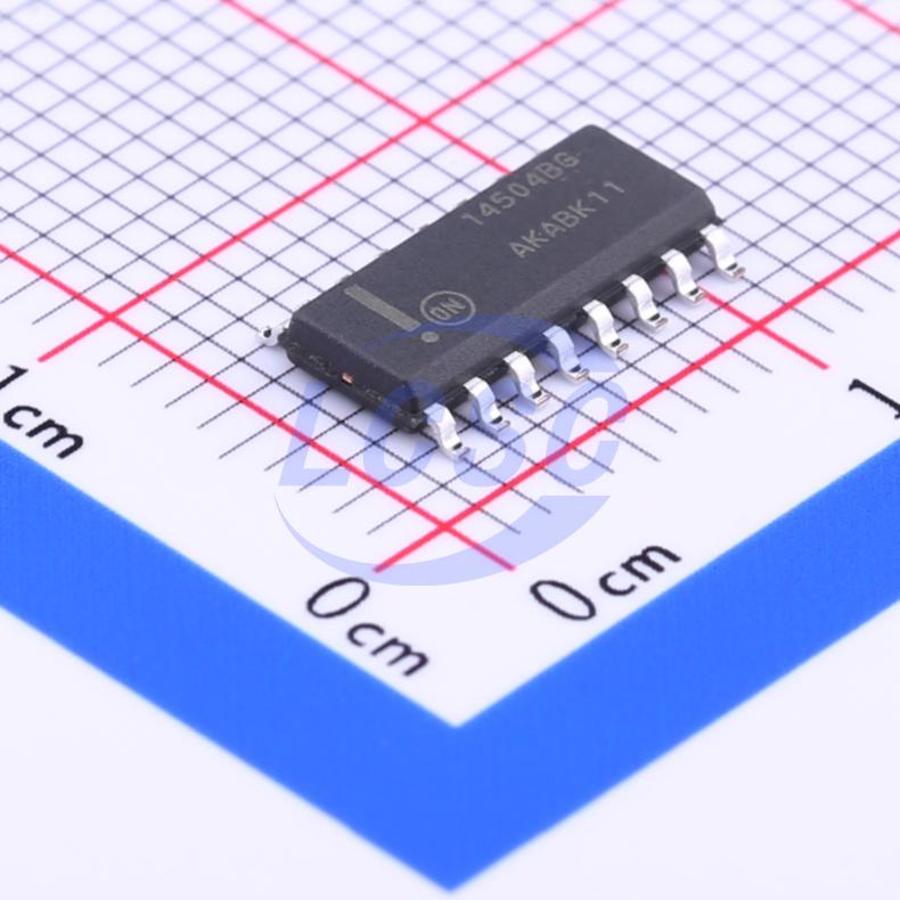

MC14504BDG

The MC14504B is a hex non−inverting level shifter using CMOS technology. The level shifter will shift a TTL signal to CMOS logic levels for any CMOS supply voltage between 5 and 15 volts. A control input also allows interface from CMOS to CMOS at one logic level to another logic level: Either up or down level translating is accomplished by selection of power supply levels VDD and VCC. The VCC level sets the input signal levels while VDD selects the output voltage levels.

Key features

• UP Translates from a Low to a High Voltage or DOWN Translates from a High to a Low Voltage
• Input Threshold Can Be Shifted for TTL Compatibility
• No Sequencing Required on Power Supplies or Inputs for Power Up or Power Down
• 3 to 18 Vdc Operation for VDD and VCC
• Diode Protected Inputs to VSS
• Capable of Driving Two Low−Power TTL Loads or One Low−Power Schottky TTL Load Over the Rated Temperature Range
• NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
• These Devices are Pb−Free and are RoHS Compliant
