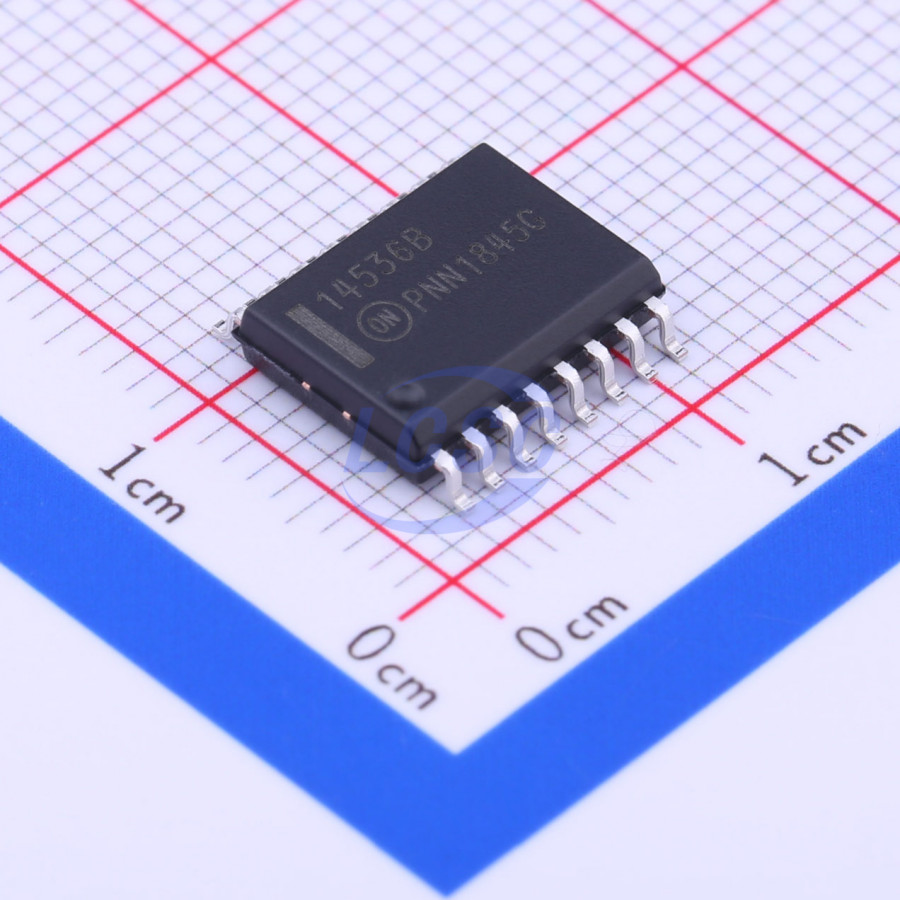

MC14536BDWR2G

The MC14536B programmable timer is a 24−stage binary ripple counter with 16 stages selectable by a binary code. Provisions for an on−chip RC oscillator or an external clock are provided. An on−chip monostable circuit incorporating a pulse−type output has been included. By selecting the appropriate counter stage in conjunction with the appropriate input clock frequency, a variety of timing can be achieved.

Applications

• NLV prefix for automotive and other applications requiring unique site and change control requirements; AEC-Q100 qualified and PPAP capable.

Key features

• 24 Flip−Flop Stages - Will Count From 2^0 to 2^24
• Last 16 Stages Selectable By Four−Bit Select Code
• 8−Bypass Input Allows Bypassing of First Eight Stages
• Set and Reset Inputs
• Clock Inhibit and Oscillator Inhibit Inputs
• On−Chip RC Oscillator Provisions
• On−Chip Monostable Output Provisions
• Clock Conditioning Circuit Permits Operation with Very Long Rise and Fall Times
• Test Mode Allows Fast Test Sequence
• Supply Voltage Range = 3.0 Vdc to 18 Vdc
• Capable of Driving Two Low−Power TTL Loads or One Low−Power Schottky TTL Load over the Rated Temperature Range
• NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
• These Devices are Pb −Free and are RoHS Compliant
