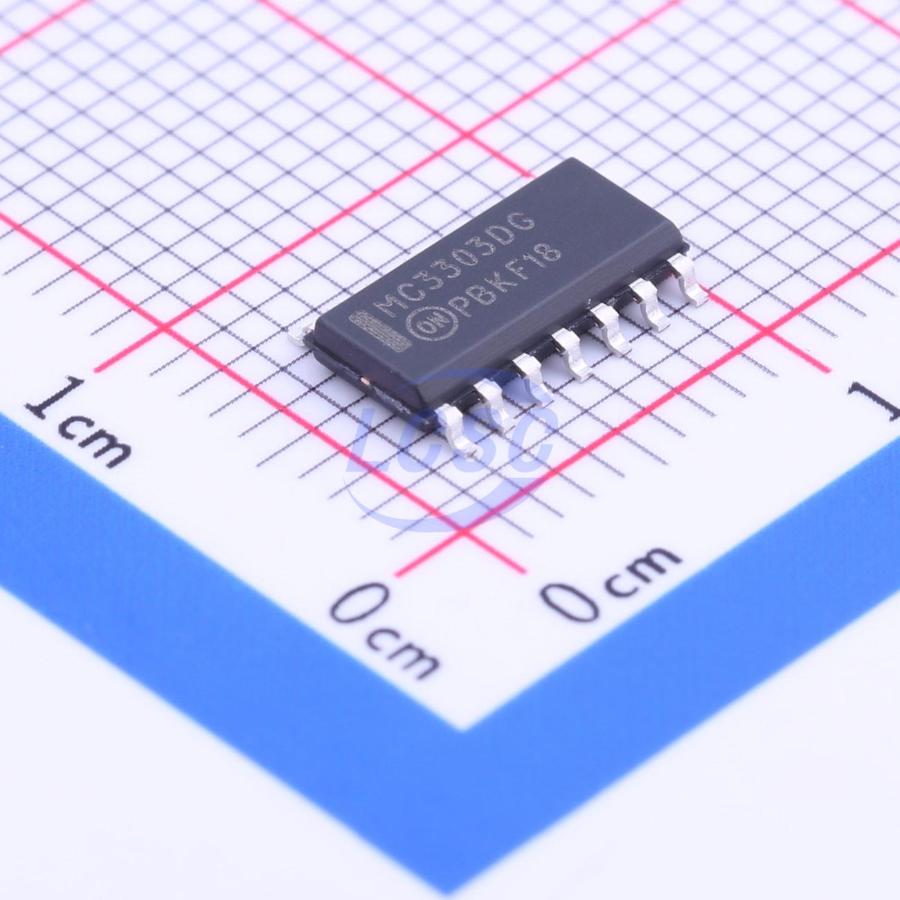

MC3303DR2G
30mA 4 2mV 600V/ms 90dB 500nA 2.8mA SOP-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-14ROHS3 CompliantActive
Single Supply Quad Operational Amplifiers
- Manufacturer
- onsemi
- Manufacturer part #
- MC3303DR2G
- Store part #
- C62021
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,025 in stock
#C62021
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.81 | ₹204.05 |
| 50+ | ₹32.47 | ₹1,623.50 |
| 150+ | ₹28.88 | ₹4,332.00 |
| 500+ | ₹24.41 | ₹12,205.00 |
| 2,500+ | ₹22.42 | ₹56,050.00 |
| 5,000+ | ₹21.23 | ₹1,06,150.00 |
5 × ₹40.81
₹204.05
excl. GST
₹240.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC3303DR2G
₹204.05 for 5 + GST
Specifications
- Output Current
- 30mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 600V/ms
- Input Offset Current(Ios)
- 30nA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Ib - Input Bias Current
- 500nA
- Input Offset Voltage Drift(Vos TC)
- 10uV/℃
- Quiescent Current
- 2.8mA
- Features
- Built-in compensation;ESD protection
- Dual Supply
- -1.5V~18V
- Single Supply
- 3V~36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.36 g
Overview
The MC3403 is a low cost, quad operational amplifier with true differential inputs. The device has electrical characteristics similar to the popular MC1741C. However, the MC3403 has several distinct advantages over standard operational amplifier types in single supply applications. The quad amplifier can operate at supply voltages as low as 3.0 V or as high as 36 V with quiescent currents about one third of those associated with the MC1741C (on a per amplifier basis). The common mode input range includes the negative supply, thereby eliminating the necessity for external biasing components in many applications. The output voltage range also includes the negative power supply voltage.
Key features
- Short Circuit Protected Outputs
- Class AB Output Stage for Minimal Crossover Distortion
- True Differential Input Stage
- Single Supply Operation: 3.0 V to 36 V
- Split Supply Operation: ±1.5 V to ±18 V
- Low Input Bias Currents: 500 nA Max
- Four Amplifiers Per Package
- Internally Compensated
- Similar Performance to Popular MC1741C
- Industry Standard Pin−outs
- ESD Diodes Added for Increased Ruggedness
- Pb−Free Packages are Available
