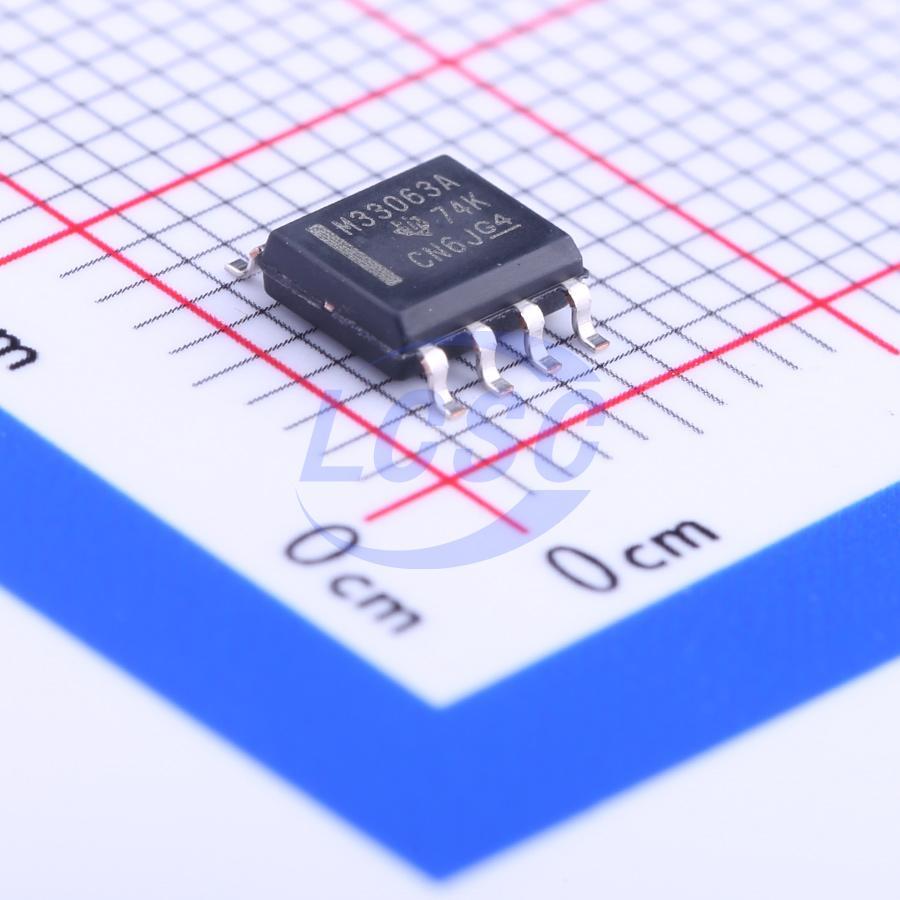

MC33063ADR
100kHz Adjustable 1.5A SOIC-8 Voltage Regulators - DC DC Switching Regulators RoHS
PopularSOIC-8ROHS CompliantActive
1.5-A Peak Boost/Buck/lnverting Switching Regulators
- Manufacturer
- TI
- Manufacturer part #
- MC33063ADR
- Store part #
- C127837
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
34,355 in stock
#C127837
Stock & price checked 18 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.85 | ₹199.25 |
| 50+ | ₹31.47 | ₹1,573.50 |
| 150+ | ₹27.39 | ₹4,108.50 |
| 500+ | ₹22.56 | ₹11,280.00 |
| 2,500+ | ₹21.55 | ₹53,875.00 |
| 5,000+ | ₹20.94 | ₹1,04,700.00 |
5 × ₹39.85
₹199.25
excl. GST
₹235.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC33063ADR
₹199.25 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 100kHz
- Function
- Boost;Step-down type
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost;Buck;Inverting
- Operating Voltage
- 3V~40V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1.5A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.257 g
Overview
The MC33063A and MC34063A devices are easy-to-use ICs containing all the primary circuitry needed for building simple DC-DC converters. These devices primarily consist of an internal temperature-compensated reference, a comparator, an oscillator, a PWM controller with active current limiting, a driver, and a high-current output switch. Thus, the devices require minimal external components to build converters in the boost, buck, and inverting topologies.
Applications
- Blood Gas Analyzers: Portable
- Cable Solutions HMIs (Human Machine Interfaces)
- Telecommunications Portable Devices
- Consumer & Computing Test & Measurement
Key features
- Wide Input Voltage Range: 3 V to 40 V
- High Output Switch Current: Up to 1.5 A
- Adjustable Output Voltage
- Oscillator Frequency Up to 100 kHz
- Precision Internal Reference: 2%
- Short-Circuit Current Limiting
- Low Standby Current
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC33063AD#C1355384TI · SOIC-8 | TI | SOIC-8 | 64 | ₹104.07 · 64 in stock | View |
 | MC34063AG(MS)#C19631992MSKSEMI · SOP-8 | MSKSEMI | SOP-8 | 955 | ₹15.32 · 955 in stock | View |
 | HX33063-S#C41399174ZHHXDZ · SOP-8 | ZHHXDZ | SOP-8 | 1,160 | ₹15.23 · 1,160 in stock | View |
 | XL33063#C521143XINLUDA · SOIC-8 | XINLUDA | SOIC-8 | 2,485 | ₹20.29 · 2,485 in stock | View |
 | UC33063AG-S08-R#C80213UTC · SOIC-8 | UTC | SOIC-8 | 2,250 | ₹23.67 · 2,250 in stock | View |
