XBLW

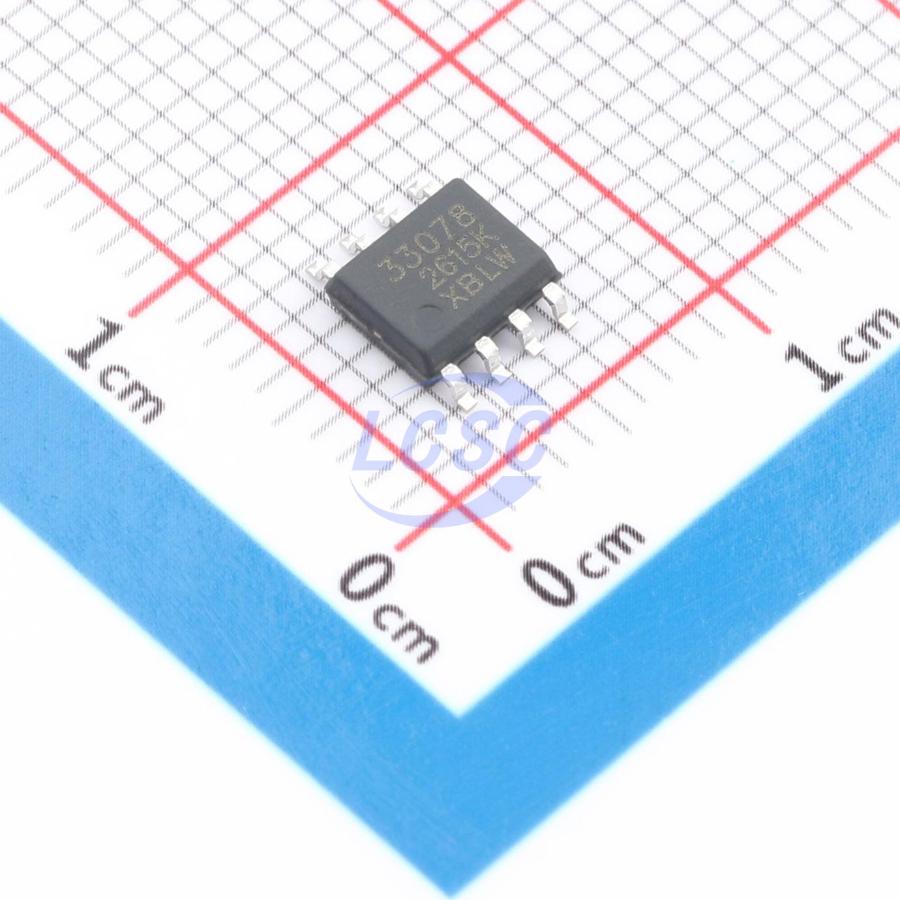

MC33078DR2G(XBLW)

100nA 6mA 15MHz SOP-8 Audio Amplifiers RoHS

SOP-8ROHS CompliantActive

Dual op-amp IC, optimized for tone control, suitable for audio applications

Manufacturer: XBLW
Manufacturer part #: MC33078DR2G(XBLW)
Store part #: C54785471
Package / case: SOP-8
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,425 in stock

#C54785471

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹14.94	₹74.70
50+	₹11.87	₹593.50
150+	₹10.33	₹1,549.50
500+	₹9.18	₹4,590.00
2,500+	₹8.27	₹20,675.00
5,000+	₹7.81	₹39,050.00

Quantity (min 5, multiples of 5)

5 × ₹14.94

₹74.70

excl. GST

₹88.15 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

MC33078DR2G(XBLW)

₹74.70 for 5 + GST

Specifications

Ib - Input Bias Current: 100nA
number of channels: 2
Operating Temperature: -40℃~+80℃
Input Offset Current(Ios): 5nA
Vos - Input Offset Voltage: 500uV
Output Current: 50mA
Quiescent Current: 6mA
Common Mode Rejection Ratio (CMRR): 110dB
Gain Bandwidth Product: 15MHz
Single Supply: 4V~36V
Dual Supply: -18V~-2V;2V~18V
Slew Rate: 5V/us
Noise density(eN): 5nV/√Hz@1kHz

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.201 g
