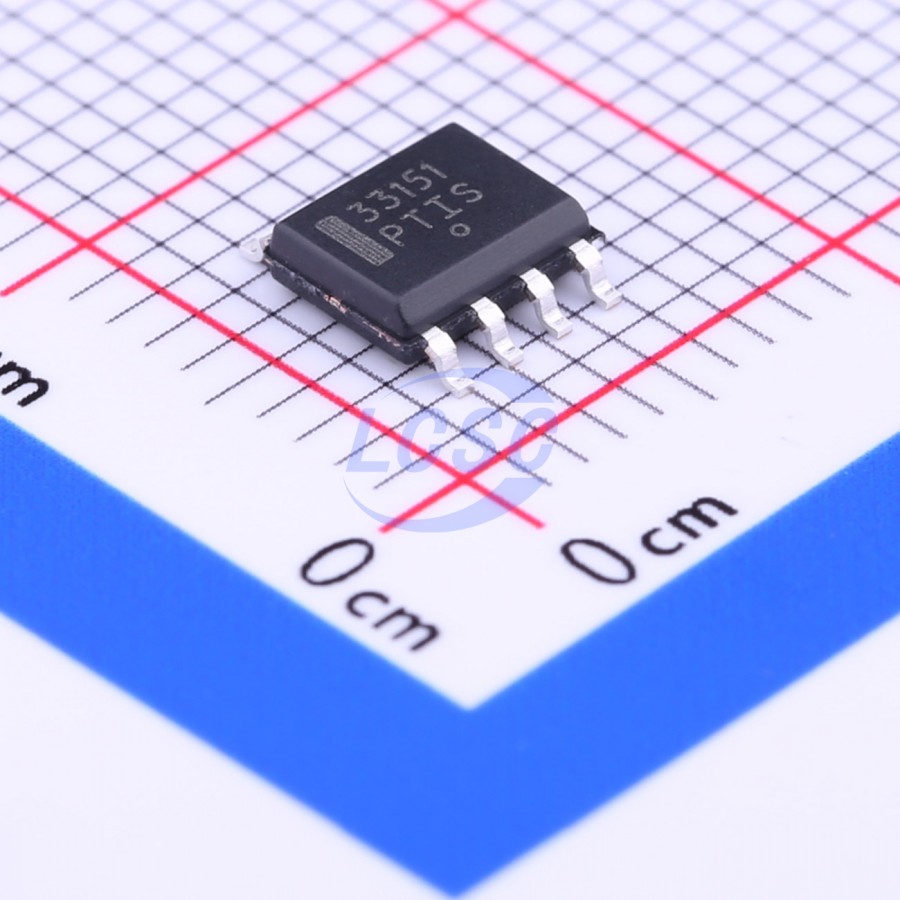

MC33151DR2G
6V~18V 1.5A 1.5A SOIC-8 Gate Drivers RoHS
SOIC-8ROHS3 CompliantActive
High Speed Dual MOSFET Drivers
- Manufacturer
- onsemi
- Manufacturer part #
- MC33151DR2G
- Store part #
- C233738
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,869 in stock
#C233738
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹161.46 | ₹161.46 |
| 10+ | ₹135.17 | ₹1,351.70 |
| 30+ | ₹120.60 | ₹3,618.00 |
| 100+ | ₹104.31 | ₹10,431.00 |
| 500+ | ₹97.13 | ₹48,565.00 |
| 1,000+ | ₹93.88 | ₹93,880.00 |
1 × ₹161.46
₹161.46
excl. GST
₹190.52 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC33151DR2G
₹161.46 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV~1.58V
- Low Level Delay Time
- 36ns
- High Level Delay Time
- 14ns
- Quiescent Current
- 1.7mA
- Input Logic Level - High
- 1.75V~2.6V
- Voltage - Supply
- 6V~18V
- Operating Temperature
- -40℃~+85℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 1.5A
- Rise Time
- 31ns
- Fall Time
- 15ns
- Features
- Enable shutdown
- Current - Output High(IOH)
- 1.5A
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.207 g
Overview
The MC34151 is a dual inverting high speed driver specifically designed to interface low current digital circuitry with power MOSFETs. This device is constructed with Schottky clamped Bipolar Analog technology which offers a high degree of performance and ruggedness in hostile industrial environments.
Applications
- switching power supplies
- dc to dc converters
- capacitor charge pump voltage doublers/inverters
- motor controllers
Key features
- Two Independent Channels with 1.5 A Totem Pole Output
- Output Rise and Fall Times of 15 ns with 1000 pF Load
- CMOS/LSTTL Compatible Inputs with Hysteresis
- Undervoltage Lockout with Hysteresis
- Low Standby Current Efficient High Frequency Operation
- Enhanced System Performance with Common Switching Regulator Control ICs
- Pin Out Equivalent to DS0026 and MMH0026
- These are Pb−Free and Halide−Free Devices
