onsemiDatasheet (PDF)

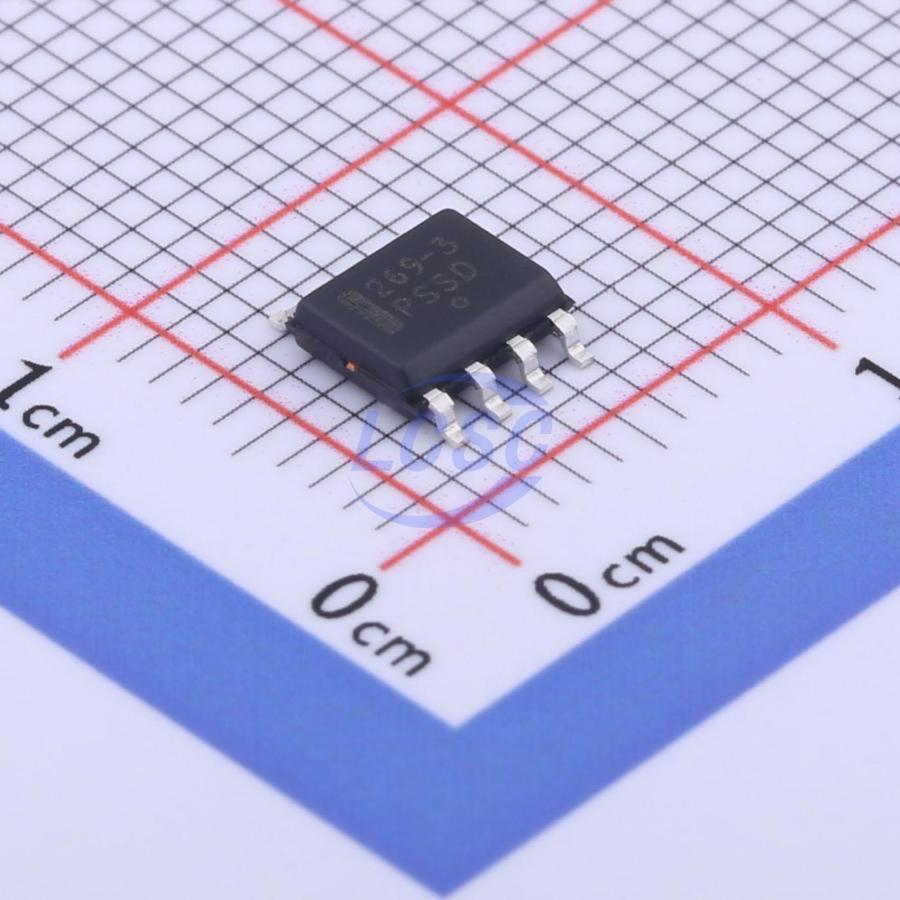

MC33269DR2-3.3G
3.3V Positive Fixed SOIC-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOIC-8ROHS3 CompliantActive
800 mA, Adjustable Output, Low Dropout Voltage Regulator
- Manufacturer
- onsemi
- Manufacturer part #
- MC33269DR2-3.3G
- Store part #
- C7301
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,171 in stock
#C7301
Stock & price checked 37 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹79.98 | ₹79.98 |
| 10+ | ₹65.85 | ₹658.50 |
| 30+ | ₹59.76 | ₹1,792.80 |
| 100+ | ₹52.15 | ₹5,215.00 |
| 500+ | ₹48.69 | ₹24,345.00 |
| 1,000+ | ₹46.73 | ₹46,730.00 |
1 × ₹79.98
₹79.98
excl. GST
₹94.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC33269DR2-3.3G
₹79.98 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 8mA
- Output Configuration
- Positive
- Operating Voltage
- 20V
- Output Current
- 800mA
- Features
- Over Current Protection;Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.207 g
Overview
The MC33269/NCV33269 series are low dropout, medium current, fixed and adjustable, positive voltage regulators specifically designed for use in low input voltage applications. These devices offer the circuit designer an economical solution for precision voltage regulation, while keeping power losses to a minimum. The regulator consists of a 1.0 V dropout composite PNP−NPN pass transistor, current limiting, and thermal shutdown.
Key features
- 3.3 V, 5.0 V, 12 V and Adjustable Versions 2.85 V version available as MC34268
- Space Saving DPAK, SO−8 and SOT−223 Power Packages
- 1.0 V Dropout
- Output Current in Excess of 800 mA
- Thermal Protection
- Short Circuit Protection
- Output Trimmed to 1.0% Tolerance
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These are Pb −Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LKP2074S-33#C48639162LKWIC · SOP-8 | LKWIC | SOP-8 | 128 | ₹270.54 · 128 in stock | View |
 | LT1963ES8-3.3#TRPBF#C665751ADI · SO-8 | ADI | SO-8 | 27 | ₹983.23 · 27 in stock | View |
 | LT1963AES8-3.3#TRPBF#C73077ADI · SO-8 | ADI | SO-8 | 181 | ₹2,041.11 · 181 in stock | View |
 | GM12041ARDZ-3.3-R7#C19272621GONGMOSEMI · SOIC-8 | GONGMOSEMI | SOIC-8 | 1,000 | ₹433.44 · 1,000 in stock | View |
 | KF33BD-TR#C283393ST · SO-8 | ST | SO-8 | 2,401 | ₹149.16 · 2,401 in stock | View |
