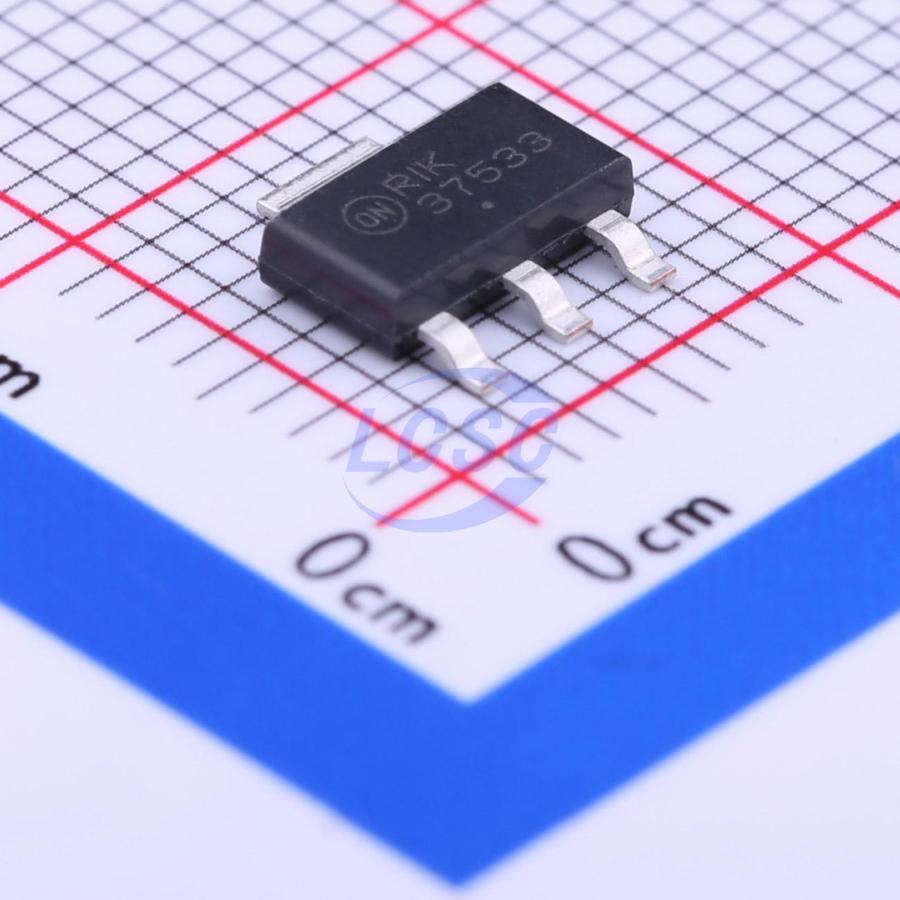

MC33375ST-3.3T3G

The MC33375 series are micropower low dropout voltage regulators available in a wide variety of output voltages as well as packages, SOT−223 and SOP−8. These devices feature a very low quiescent current and are capable of supplying output currents up to 300 mA. Internal current and thermal limiting protection are provided by the presence of a short circuit at the output and an internal thermal shutdown circuit. The MC33375 has a control pin that allows a logic level signal to turn−off or turn−on the regulator output. Due to the low input−to−output voltage differential and bias current specifications, these devices are ideally suited for battery powered computer, consumer, and industrial equipment where an extension of useful battery life is desirable.

Key features

• Low Quiescent Current (0.3 μA in OFF mode; 125 μA in ON mode)
• Low Input−to−Output Voltage Differential of 25 mV at IO = 10 mA, and 260 mV at IO = 300 mA
• Extremely Tight Line and Load Regulation
• Stable with Output Capacitance of only 0.33 μF for 2.5 V Output Voltage
• Internal Current and Thermal Limiting
• Logic Level ON/OFF Control
• NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
• These are Pb−Free Devices
