HGSEMIDatasheet (PDF)

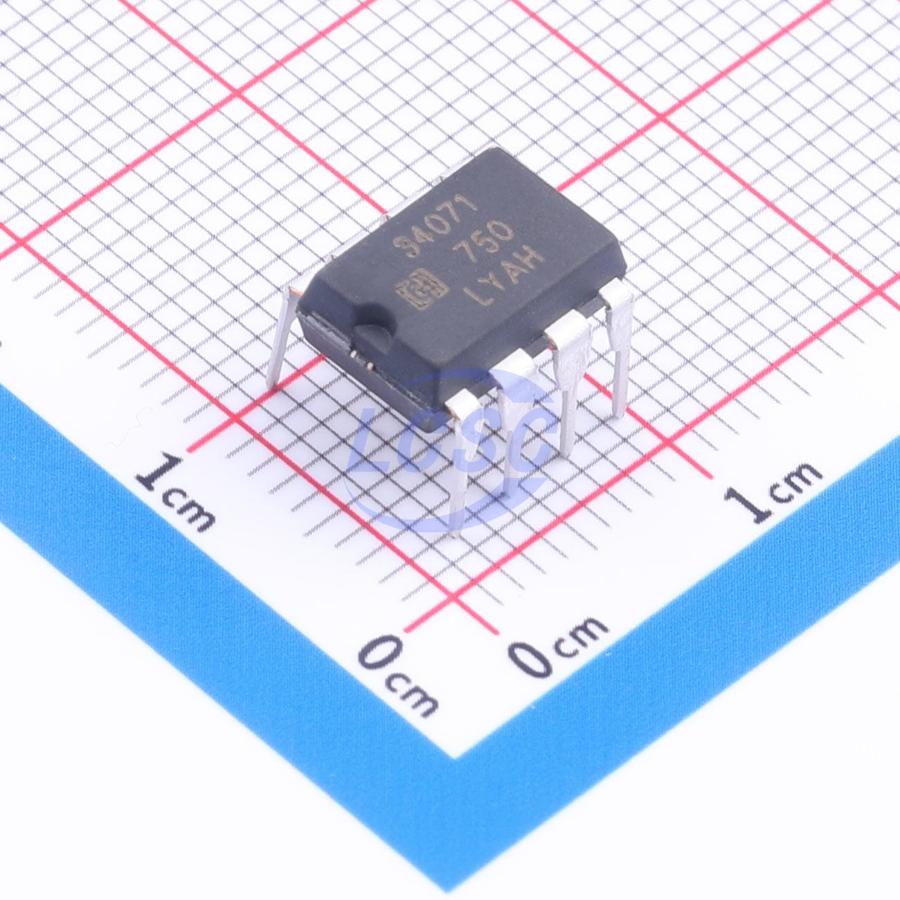

MC34071N/HG
1 3mV 20V/us 85dB 200nA 3MHz 1.8mA DIP-8 Instrumentation, Op Amps, Buffer Amps
DIP-8RoHSActive
- Manufacturer
- HGSEMI
- Manufacturer part #
- MC34071N/HG
- Store part #
- C53374703
- Package / case
- DIP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,830 in stock
#C53374703
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.11 | ₹100.55 |
| 50+ | ₹15.89 | ₹794.50 |
| 150+ | ₹14.08 | ₹2,112.00 |
| 500+ | ₹11.83 | ₹5,915.00 |
| 2,000+ | ₹10.82 | ₹21,640.00 |
| 4,000+ | ₹10.21 | ₹40,840.00 |
5 × ₹20.11
₹100.55
excl. GST
₹118.65 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
MC34071N/HG
₹100.55 for 5 + GST
Specifications
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 20V/us
- Input Offset Current(Ios)
- 100pA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Ib - Input Bias Current
- 200nA
- Gain Bandwidth Product
- 3MHz
- Quiescent Current
- 1.8mA
- Features
- Short-Circuit Protection;Built-in compensation
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.908 g
Overview
MC34071 is a high-speed J-FET single operational amplifier constructed with high-voltage J-FETs and bipolar transistors. It features high slew rate, low input bias current, low offset current, and low offset voltage temperature coefficient. The MC34071 is available in DIP-8, SOP-8, and SOT-23-5 packages.
Applications
- Voltage follower
- 10x gain inverting amplifier
- 0.5Hz square wave oscillator
- High-Q ladder filter
Key features
- Low power consumption
- Wide common-mode and differential-mode input voltage range
- Low input bias current and offset current
- Output short-circuit current protection
- High input impedance
- Internal frequency compensation
- High slew rate
- High gain-bandwidth product
- Available in DIP-8, SOP-8, and SOT-23-5 packages
