HGSEMIDatasheet (PDF)

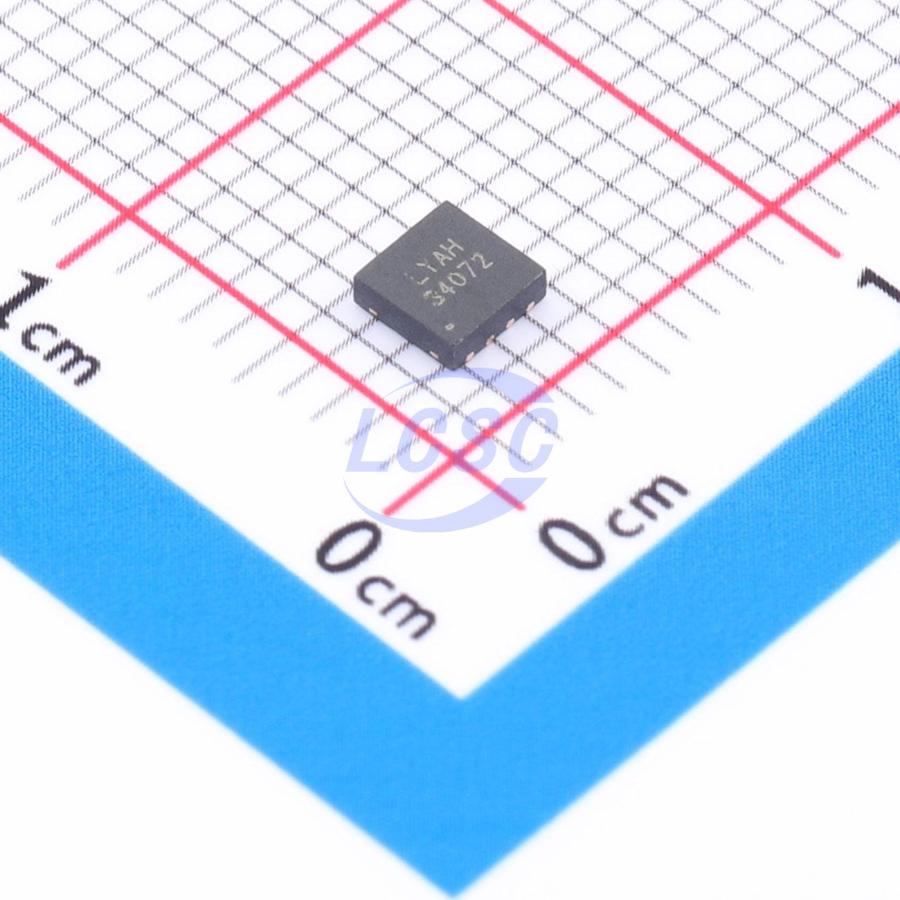

MC34072DQ3/TR-HG
2 3mV 13V/us 85dB 2.5nA 3MHz 1.4mA DFN-8(3x3) Instrumentation, Op Amps, Buffer Amps
DFN-8(3x3)RoHSActive
- Manufacturer
- HGSEMI
- Manufacturer part #
- MC34072DQ3/TR-HG
- Store part #
- C53374700
- Package / case
- DFN-8(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C53374700
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.66 | ₹118.30 |
| 50+ | ₹18.43 | ₹921.50 |
| 150+ | ₹16.19 | ₹2,428.50 |
| 500+ | ₹13.40 | ₹6,700.00 |
| 2,500+ | ₹12.16 | ₹30,400.00 |
| 5,000+ | ₹11.40 | ₹57,000.00 |
5 × ₹23.66
₹118.30
excl. GST
₹139.59 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
MC34072DQ3/TR-HG
₹118.30 for 5 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 13V/us
- Input Offset Current(Ios)
- 1.5nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Ib - Input Bias Current
- 2.5nA
- Gain Bandwidth Product
- 3MHz
- Quiescent Current
- 1.4mA
- Features
- Short-Circuit Protection
- Dual Supply
- ±15V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.062 g
Overview
MC34072 is a high-speed J-FET input dual operational amplifier constructed with high-voltage J-FETs and bipolar transistors. It features high slew rate, low input bias current and offset current, and very low offset voltage temperature coefficient. The MC34072 operates over a temperature range of -40℃ to -85℃. The MC34072 is available in DIP-8, SOP-8, and MSOP-8 packages.
Applications
- Three-band tone control
- Fourth-order low-pass filter
- Fourth-order high-pass filter
- Resistor-to-voltage conversion
- 100 kHz quadrature oscillator
- Voltage follower
- Gain-of-10 inverting amplifier
Key features
- Low power consumption
- Wide common-mode and differential-mode input voltage range
- Low input bias and offset current
- Output short-circuit current protection
- High input impedance
- High slew rate
- High gain-bandwidth product, up to 4MHz
