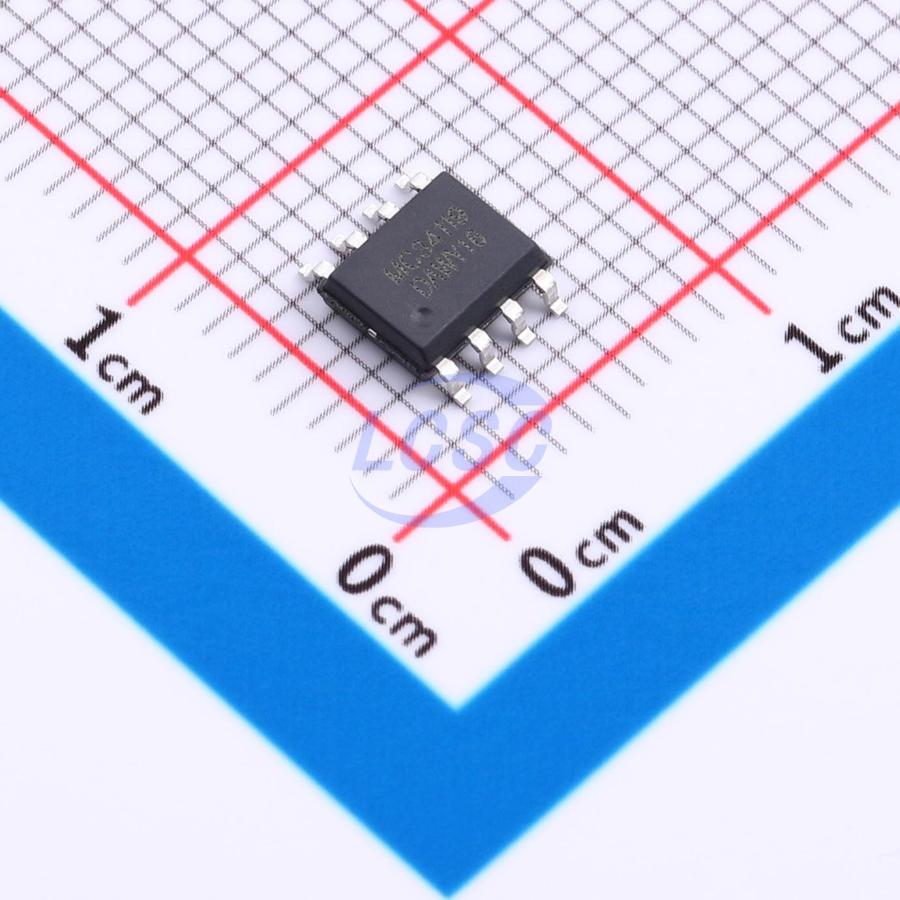

MC34119-SOP-8
2.7mA 2V~15V 1-Channel Class AB SOP-8 Audio Amplifiers
- Manufacturer
- DDF
- Manufacturer part #
- MC34119-SOP-8
- Store part #
- C53199175
- Package / case
- SOP-8
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,910 in stock
#C53199175
Stock & price checked 41 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.53 | ₹52.65 |
| 50+ | ₹8.28 | ₹414.00 |
| 150+ | ₹7.16 | ₹1,074.00 |
| 500+ | ₹6.31 | ₹3,155.00 |
| 2,500+ | ₹5.64 | ₹14,100.00 |
| 4,000+ | ₹5.31 | ₹21,240.00 |
5 × ₹10.53
₹52.65
excl. GST
₹62.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
MC34119-SOP-8
₹52.65 for 5 + GST
Specifications
- Quiescent Current
- 2.7mA
- Voltage - Supply
- 2V~15V
- Total Harmonic Distortion + Noise (THD+N)
- 0.5%
- Features
- Enable/shutdown function
- Speaker Channels
- 1-Channel
- Output Power
- 55mWx1@16Ω;240mWx1@32Ω
- Class
- Class AB
- Power Supply Rejection Ratio (PSRR)
- 52dB
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.15 g
Overview
GC34119 is a Class AB low-power audio amplifier IC. The device operates from supply voltages as low as 2V, driving speakers directly via differential output without coupling capacitors. It features an open-loop gain of 80dB, with closed-loop gain set by two external resistors. The shutdown function cuts off the input signal and reduces noise. Available in SOP8 and DIP8 packages.
Key features
- Supply voltage range: 2 V ~ 15 V
- Quiescent current: 2.7 mA (typical)
- Output power: Pout > 250 mW (VCC=6V, RL=32Ω, THD<10%)
- Speaker load drive: 8 Ω ~ 100 Ω
- Mute current: 65 uA (typical)
- Low THD: 0.5% (typical)
