HGSEMIDatasheet (PDF)

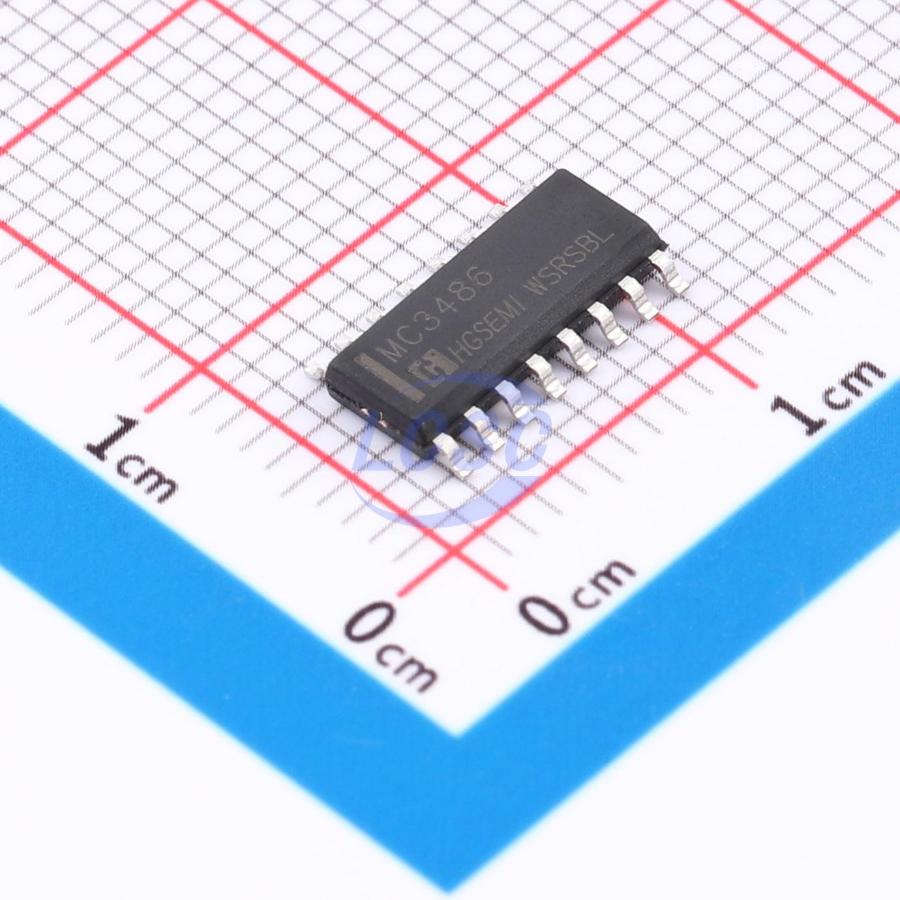

MC3486M/TR
0/4 Receiver RS422, RS485 SOP-16
SOP-16RoHSActive
Quad RS-422, RS-423 Line Receiver
- Manufacturer
- HGSEMI
- Manufacturer part #
- MC3486M/TR
- Store part #
- C47148920
- Package / case
- SOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,635 in stock
#C47148920
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.87 | ₹169.35 |
| 50+ | ₹29.58 | ₹1,479.00 |
| 150+ | ₹27.74 | ₹4,161.00 |
| 500+ | ₹25.44 | ₹12,720.00 |
| 2,500+ | ₹24.42 | ₹61,050.00 |
| 5,000+ | ₹23.81 | ₹1,19,050.00 |
5 × ₹33.87
₹169.35
excl. GST
₹199.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC3486M/TR
₹169.35 for 5 + GST
Specifications
- Voltage - Supply
- 4.75V~5.25V
- Type
- Receiver
- Operating Temperature
- 0℃~+70℃
- Number of Drivers
- 0
- Features
- Enable shutdown
- Number of Receivers
- 4
- Quiescent Supply Current
- 85mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.372 g
Overview
This device contains four independent receivers that comply with the EIA standard for electrical characteristics of balanced/unbalanced voltage digital interface circuits. The receiver outputs feature 74LS-compatible TRI-STATE structures, which are forced into a high-impedance state when the corresponding output control pin reaches a logic zero condition. Each output control pin is buffered by a PNP device to ensure minimum loading regardless of whether the input is a logic one or logic zero. In addition, each receiver incorporates an internal hysteresis circuit to improve noise margin and prevent output instability when input waveforms change slowly.
Key features
- Four independent receivers
- TRI-STATE outputs
- Internal hysteresis: 140 mV (typical)
- Fast propagation time: 19 ns (typical)
- TTL-compatible outputs
- 5V supply
- Pin-compatible replacement for DS3486
- DIP-16 package
- SOP-16 package
- TSSOP-16 package
