onsemiDatasheet (PDF)

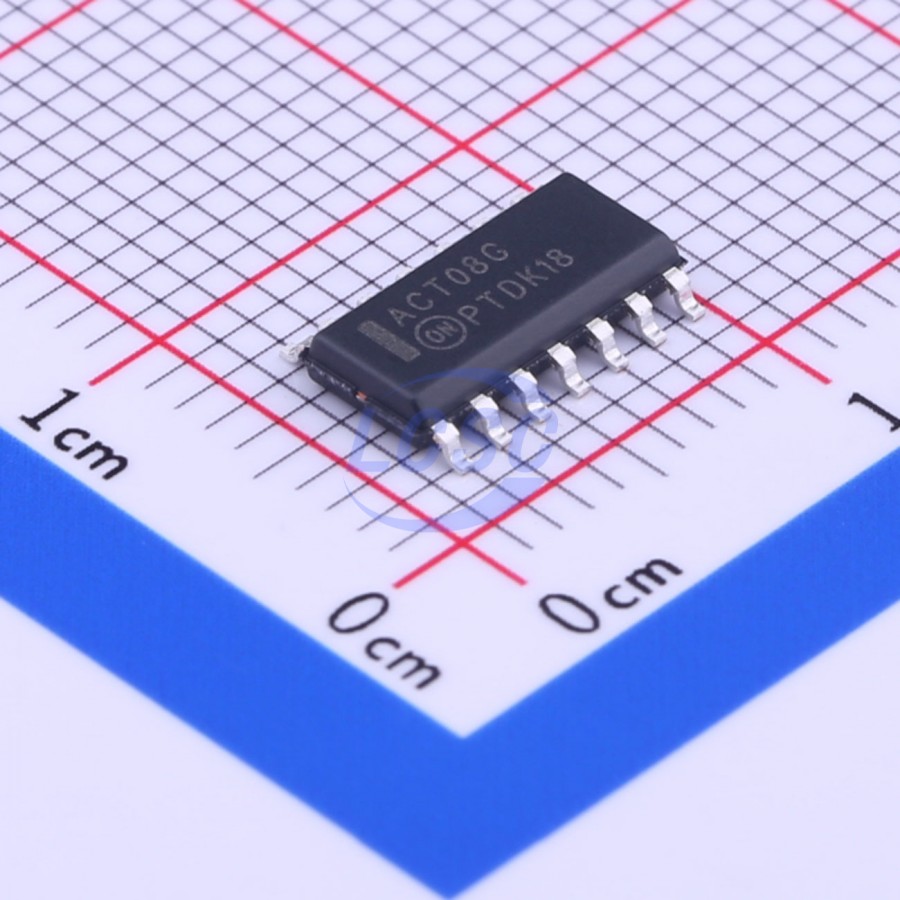

MC74ACT08DR2G
AND Gate IC 4 Channel SOIC-14
SOIC-14ROHS3 CompliantActive
Quad 2-lnput AND Gate, High-Performance Silicon-Gate CMOS
- Manufacturer
- onsemi
- Manufacturer part #
- MC74ACT08DR2G
- Store part #
- C233452
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,070 in stock
#C233452
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.64 | ₹143.20 |
| 50+ | ₹22.52 | ₹1,126.00 |
| 150+ | ₹19.88 | ₹2,982.00 |
| 500+ | ₹15.49 | ₹7,745.00 |
| 2,500+ | ₹14.02 | ₹35,050.00 |
| 5,000+ | ₹13.15 | ₹65,750.00 |
5 × ₹28.64
₹143.20
excl. GST
₹168.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC74ACT08DR2G
₹143.20 for 5 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- Logic Family
- 74ACT Series
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 440mV
- Propagation Delay
- 9ns@5V,50pF
- Input Logic Level - Low
- 800mV
- Input Logic Level - High
- 2V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 4.4V;3.76V
- Quiescent Current(Iq)
- 4uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.36 g
Overview
Key features
- Outputs Source/Sink 24 mA
- ′ACT08 Has TTL Compatible Inputs
- These are Pb−Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74ACT08SCX#C5492onsemi · SOIC-14 | onsemi | SOIC-14 | 4 | ₹67.67 · 4 in stock | View |
 | 74ACT08SC#C897244onsemi · SOIC-14 | onsemi | SOIC-14 | 69 | ₹106.16 · 69 in stock | View |
 | SN74ACT08DR#C2149499TI · SOIC-14 | TI | SOIC-14 | 3,067 | ₹53.87 · 3,067 in stock | View |
| SN74ACT08IDREP#C2865554TI · SOIC-14 | TI | SOIC-14 | 20 | ₹406.73 · 20 in stock | View | |
 | CD74ACT08M96#C2861867TI · SOIC-14 | TI | SOIC-14 | 513 | ₹64.79 · 513 in stock | View |
