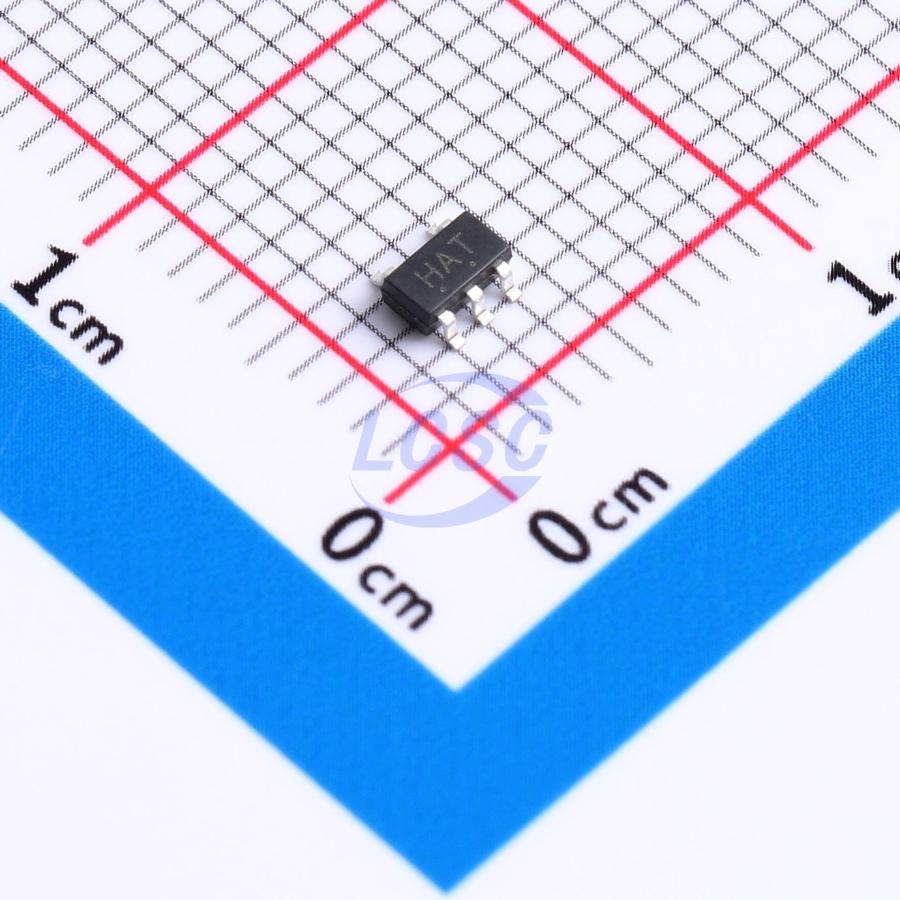

MC74HC1G14DTT1G-TP
Schmitt trigger 2V~6V 9ns@6V,50pF 10uA 1 SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- MC74HC1G14DTT1G-TP
- Store part #
- C52205174
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,910 in stock
#C52205174
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.89 | ₹58.90 |
| 100+ | ₹4.64 | ₹464.00 |
| 300+ | ₹4.02 | ₹1,206.00 |
| 3,000+ | ₹3.56 | ₹10,680.00 |
| 6,000+ | ₹3.18 | ₹19,080.00 |
| 9,000+ | ₹2.99 | ₹26,910.00 |
10 × ₹5.89
₹58.90
excl. GST
₹69.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MC74HC1G14DTT1G-TP
₹58.90 for 10 + GST
Specifications
- Logic Family
- 74HC
- Input Type
- Schmitt trigger
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV;260mV
- Propagation Delay
- 9ns@6V,50pF
- Features
- Noise suppression function
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 4.18V
- Quiescent Current(Iq)
- 10uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 2.6mA
- Current - Output Low(IOL)
- 2.6mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
The MC74HC1G14 is a high-speed CMOS Schmitt trigger inverter fabricated using silicon-gate CMOS technology. It combines the low-power characteristics of CMOS with high-speed performance comparable to the LS-TTL family. The three-stage circuit architecture with internal buffers provides wide noise margins and stable output.
Key features
- Basic gate functions arranged as Renesas unified logic series
- Supplied in embossed carrier tape for high-speed automatic mounting
- Electrical characteristics equivalent to MC74HC1G14
- |IOH| = IOL = 2mA(min)
