onsemiDatasheet (PDF)

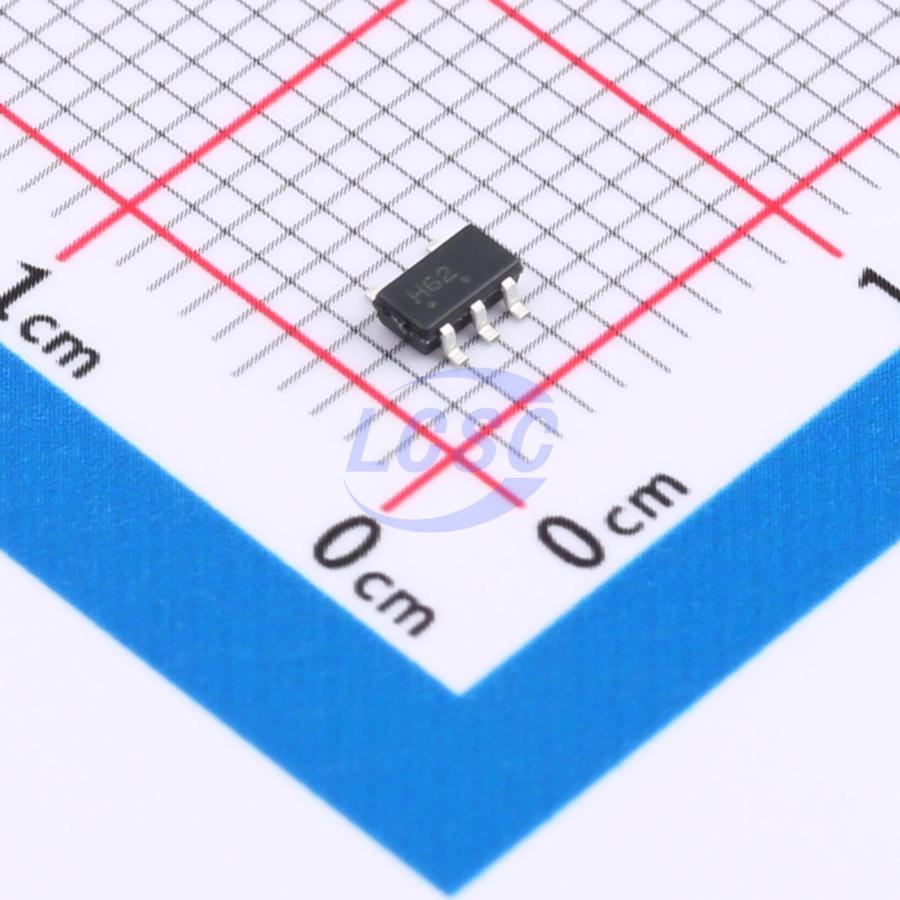

MC74HC1GU04DTT1G
StandardCMOS 2V~6V 17ns@6V,50pF 1uA 1 TSOP-5 Gates and Inverters RoHS
TSOP-5ROHS3 CompliantActive
Single Unbuffered Inverter
- Manufacturer
- onsemi
- Manufacturer part #
- MC74HC1GU04DTT1G
- Store part #
- C463304
- Package / case
- TSOP-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,330 in stock
#C463304
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.83 | ₹84.15 |
| 50+ | ₹14.83 | ₹741.50 |
| 150+ | ₹13.97 | ₹2,095.50 |
| 500+ | ₹12.90 | ₹6,450.00 |
| 3,000+ | ₹12.42 | ₹37,260.00 |
| 6,000+ | ₹12.13 | ₹72,780.00 |
5 × ₹16.83
₹84.15
excl. GST
₹99.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MC74HC1GU04DTT1G
₹84.15 for 5 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74HC
- Input Type
- StandardCMOS
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV
- Propagation Delay
- 17ns@6V,50pF
- Operating Temperature
- -55℃~+125℃
- Input Logic Level - Low
- 300mV~1.2V
- Input Logic Level - High
- 1.7V~4.8V
- Output Logic Level - High
- 1.8V;2.7V;4V;5.5V
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 2.6mA
- Current - Output Low(IOL)
- 2.6mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.042 g
Overview
The MC74HC1GU04 is a single unbuffered inverter in tiny footprint packages. The MC74HC1G0U04 output drive current is 1/2 compared to MC74HC series.
Key features
- High Speed: tpD = 7 ns (Typ) at VCC = 5 V
- Low Power Dissipation: ICC = 1 μA (Max) at TA = 25 ℃
- High Noise Immunity
- Balanced Propagation Delays (tpLH = tpHL)
- Symmetrical Output Impedance (IOH = IOL = 2 mA)
- Chip Complexity: < 100 FETs
- NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb −Free, Halogen Free/BFR Free and are RoHS Compliant
