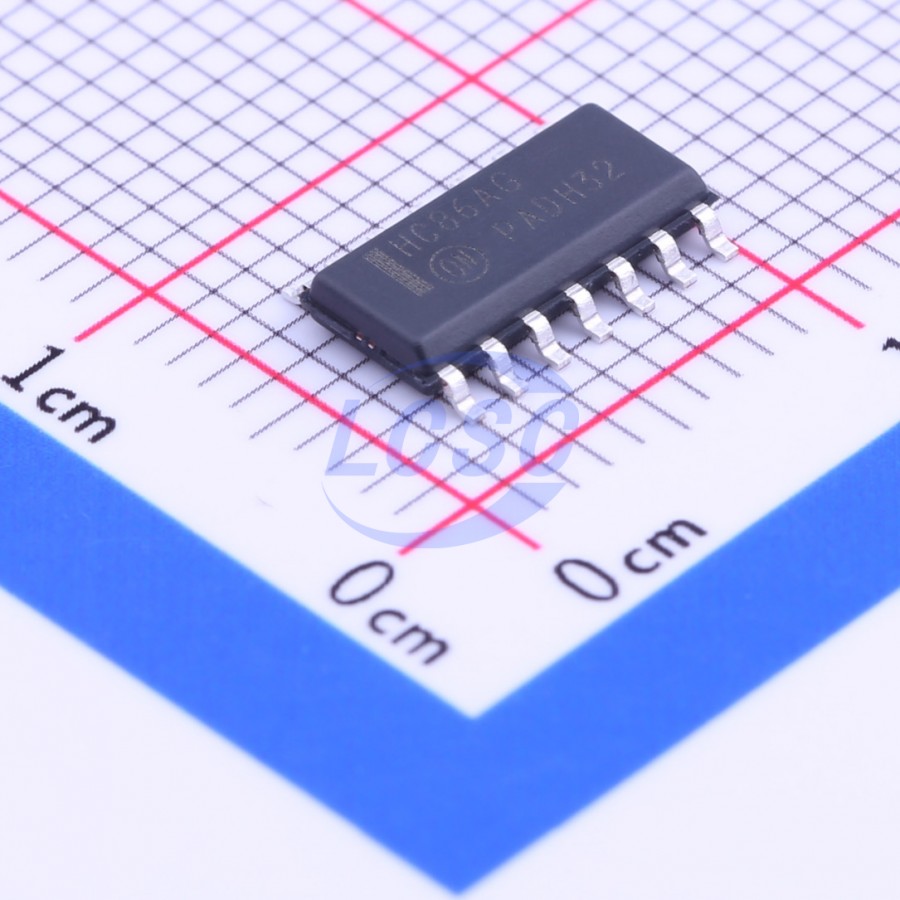

MC74HC86ADR2G
StandardCMOS 2V~6V 17ns@6V,50pF 1uA SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
Quad 2-Input Exclusive OR Gate
- Manufacturer
- onsemi
- Manufacturer part #
- MC74HC86ADR2G
- Store part #
- C152540
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,035 in stock
#C152540
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.99 | ₹179.95 |
| 50+ | ₹28.33 | ₹1,416.50 |
| 150+ | ₹25.04 | ₹3,756.00 |
| 500+ | ₹20.94 | ₹10,470.00 |
| 2,500+ | ₹17.05 | ₹42,625.00 |
| 5,000+ | ₹15.97 | ₹79,850.00 |
5 × ₹35.99
₹179.95
excl. GST
₹212.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC74HC86ADR2G
₹179.95 for 5 + GST
Specifications
- Input Type
- StandardCMOS
- Logic Family
- 74HC Series
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV;260mV~400mV
- Propagation Delay
- 17ns@6V,50pF
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Operating Temperature
- -55℃~+125℃
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.36 g
Overview
The MC74HC86A is identical in pinout to the LS86. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs.
Key features
- Output Drive Capability: 10 LSTTL Loads
- Outputs Directly Interface to CMOS, NMOS, and TTL
- Operating Voltage Range: 2.0 to 6.0 V
- Low Input Current: 1 μA
- High Noise Immunity Characteristic of CMOS Devices
- In Compliance with JEDEC Standard No. 7 A Requirements
- Chip Complexity: 56 FETs or 14 Equivalent Gates
- NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC74HC86ADG#C897277onsemi · SOIC-14 | onsemi | SOIC-14 | 120 | ₹44.07 · 120 in stock | View |
 | 74HC86D#C5916063TOSHIBA · SOP-14 | TOSHIBA | SOP-14 | 164 | ₹85.65 · 164 in stock | View |
| 74HC86D-Q100,118#C547178Nexperia · SO-14 | Nexperia | SO-14 | 200 | ₹26.06 · 200 in stock | View | |
 | CD74HC86M96#C2870930TI · SOIC-14 | TI | SOIC-14 | 248 | ₹65.26 · 248 in stock | View |
 | SN74HC86DTR(XBLW)#C22357881XBLW · SOP-14 | XBLW | SOP-14 | 2,885 | ₹14.91 · 2,885 in stock | View |
