onsemiDatasheet (PDF)
MC74VHC1G08DFT2G
2V~5.5V 7.9ns@5V,50pF 1uA SOT-353 Gates and Inverters RoHS
SOT-353ROHS3 CompliantActive

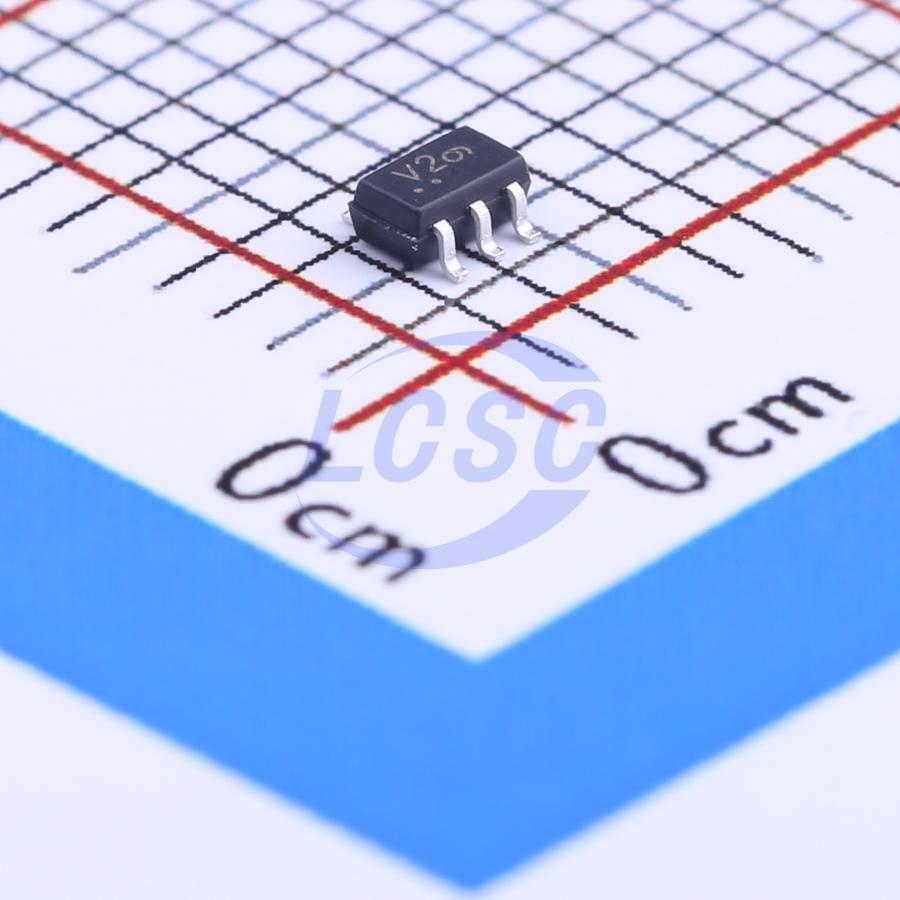

Single 2-Input AND Gate
- Manufacturer
- onsemi
- Manufacturer part #
- MC74VHC1G08DFT2G
- Store part #
- C96239
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,645 in stock
#C96239
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.63 | ₹58.15 |
| 50+ | ₹9.09 | ₹454.50 |
| 150+ | ₹7.82 | ₹1,173.00 |
| 500+ | ₹6.87 | ₹3,435.00 |
| 3,000+ | ₹6.10 | ₹18,300.00 |
| 6,000+ | ₹5.72 | ₹34,320.00 |
5 × ₹11.63
₹58.15
excl. GST
₹68.62 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MC74VHC1G08DFT2G
₹58.15 for 5 + GST
Specifications
- Logic Family
- 74VHC Series
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 100mV
- Propagation Delay
- 7.9ns@5V,50pF
- Features
- Overvoltage-tolerant input;Local shutdown mode
- Input Logic Level - Low
- 500mV~1.65V
- Input Logic Level - High
- 1.5V~3.85V
- Operating Temperature
- -55℃~+125℃
- Output Logic Level - High
- 1.9V;2.9V;4.4V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
The MC74VHC1G08 is an advanced high speed CMOS 2- input AND gate fabricated with silicon gate CMOS technology. The internal circuit is composed of multiple stages, including a buffer output which provides high noise immunity and stable output. The MC74VHC1G08 input structure provides protection when voltages up to 7.0V are applied, regardless of the supply voltage. This allows the MC74VHC1G08 to be used to interface 5.0V circuits to 3.0V circuits.
Key features
- High Speed: tpD = 3.5 ns (Typ) at VCC = 5.0V
- Low Power Dissipation: ICC = 1.0μA (Max) at TA = 25℃
- Power Down Protection Provided on Inputs
- Balanced Propagation Delays
- Pin and Function Compatible with Other Standard Logic Families
- Chip Complexity: FETs = 62
- These Devices are Pb - Free and are RoHS Compliant
- NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC - Q100 Qualified and PPAP Capable
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AHC1G08QSE-7#C4470897DIODES · SOT-353 | DIODES | SOT-353 | 4 | ₹34.99 · 4 in stock | View |
 | SN74AHC1G08DCKR#C122838TI · SC-70-5 | TI | SC-70-5 | 13,230 | ₹9.39 · 13,230 in stock | View |
 | MC74VHC1G08DFT1G#C233638onsemi · SC-70-5 | onsemi | SC-70-5 | 2,440 | ₹13.15 · 2,440 in stock | View |
 | NLVVHC1G08DFT1G#C513042onsemi · SC-70-5 | onsemi | SC-70-5 | 2,855 | ₹35.47 · 2,855 in stock | View |
| SN74AHC1G08DCK3#C2860976TI · SC-70-5 | TI | SC-70-5 | 12 | ₹84.99 · 12 in stock | View | |
