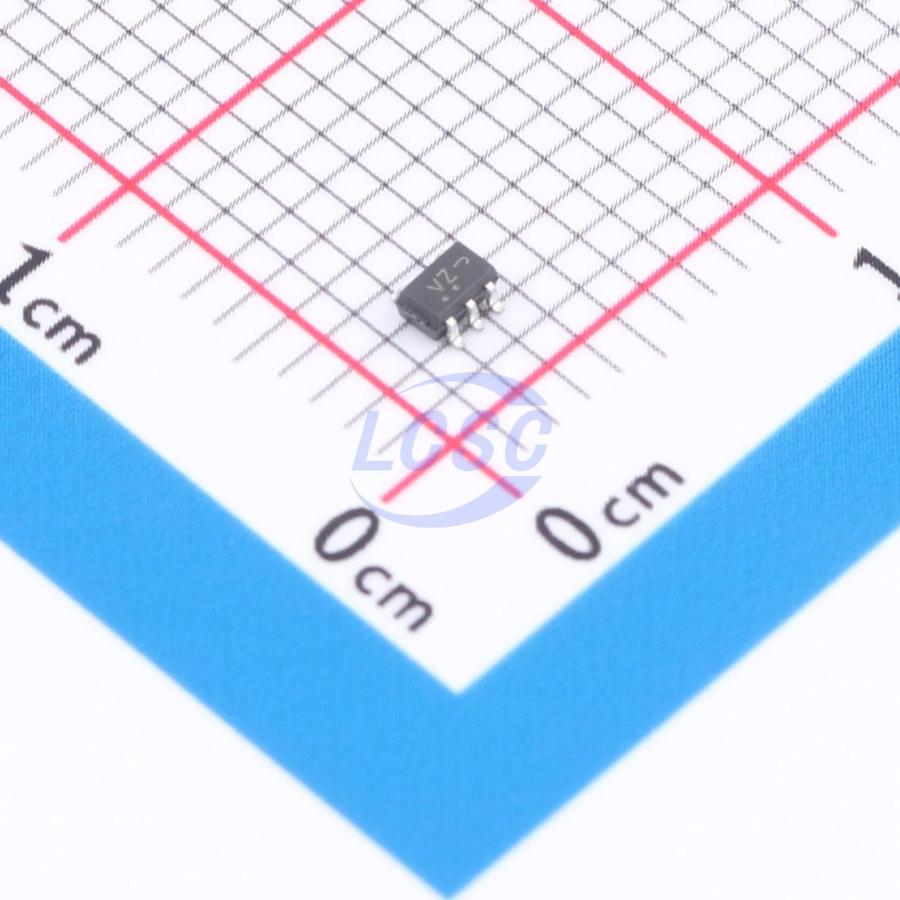

onsemi

MC74VHC1G135DFT2G-Q

Schmitt trigger 2V~5.5V 12.3ns@5V,50pF 40uA SC-88A Gates and Inverters RoHS

SC-88AROHS3 CompliantActive

Manufacturer: onsemi
Manufacturer part #: MC74VHC1G135DFT2G-Q
Store part #: C36635211
Package / case: SC-88A
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,735 in stock

#C36635211

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹10.72	₹53.60
50+	₹8.56	₹428.00
150+	₹7.49	₹1,123.50
500+	₹6.68	₹3,340.00
3,000+	₹6.03	₹18,090.00
6,000+	₹5.72	₹34,320.00

Quantity (min 5, multiples of 5)

5 × ₹10.72

₹53.60

excl. GST

₹63.25 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

MC74VHC1G135DFT2G-Q

₹53.60 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input Type: Schmitt trigger
output type: Open-drain
Voltage - Supply: 2V~5.5V
Output Logic Level - Low: 520mV
Propagation Delay: 12.3ns@5V,50pF
Features: Overvoltage-tolerant input;Local shutdown mode;Rear drive protection
Operating Temperature: -55℃~+125℃
Quiescent Current(Iq): 40uA
Current - Output High(IOH): 8mA
Number of Channels: 1;2
Current - Output Low(IOL): 8mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.029 g

Overview

MC74VHC1G135 is a single-gate CMOS Schmitt NAND gate with open-drain output, fabricated using silicon gate CMOS technology. It achieves high-speed operation comparable to equivalent bipolar Schottky TTL while maintaining the low-power characteristics of CMOS. The internal circuit consists of three stages, including a buffered three-state output, providing high noise immunity and stable output. The input structure offers protection when voltages up to 5.5V are applied, regardless of the supply voltage, making this device suitable for interfacing between 5V and 3V circuits. Some output structures also provide protection when VCC = 0V and when the output voltage exceeds VCC. These input and output structures help prevent device damage caused by supply voltage–input/output voltage mismatches, battery backup, hot-plugging, and similar conditions.

Applications

Automotive applications
5V and 3V circuit interface applications

Key features

Designed for 2.0V to 5.5V VCC operation
Typical propagation delay tPD of 4.9ns at 5V
Inputs/outputs withstand overvoltage up to 5.5V
IOFF supports partial power-down protection
Source/sink current of 8mA at 3.0V
Available in SC-88A, SC-74A, SOT-553, SOT-953, and UDFN6 packages
Device complexity under 100 FETs
-Q suffix for automotive and other applications requiring unique site and control change requirements; AEC-Q100 qualified and PPAP capable
Lead-free, halogen-free/bromine-free flame retardant, RoHS compliant
