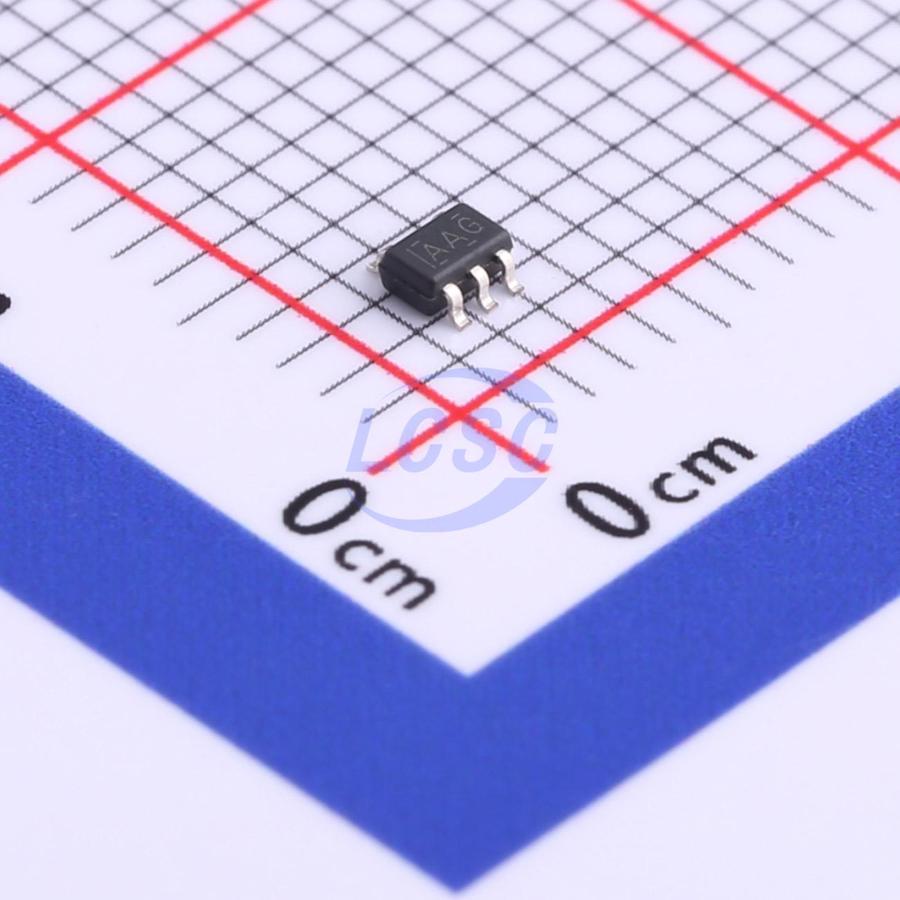

SN74AHC1G00DCKR
Schmitt trigger 2V~5.5V 7.5ns@5V,50pF 1uA SC-70-5 Gates and Inverters RoHS
SC-70-5ROHS3 CompliantActive
Single 2-Input Positive-NAND Gate
- Manufacturer
- TI
- Manufacturer part #
- SN74AHC1G00DCKR
- Store part #
- C478470
- Package / case
- SC-70-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17,710 in stock
#C478470
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.59 | ₹65.90 |
| 100+ | ₹5.33 | ₹533.00 |
| 300+ | ₹4.68 | ₹1,404.00 |
| 3,000+ | ₹4.14 | ₹12,420.00 |
| 6,000+ | ₹3.96 | ₹23,760.00 |
| 9,000+ | ₹3.84 | ₹34,560.00 |
10 × ₹6.59
₹65.90
excl. GST
₹77.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHC1G00DCKR
₹65.90 for 10 + GST
Specifications
- Input Type
- Schmitt trigger
- output type
- Push-pull
- Logic Family
- 74AHC Series
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 440mV
- Propagation Delay
- 7.5ns@5V,50pF
- Features
- Overvoltage-tolerant input
- Input Logic Level - Low
- 500mV~1.65V
- Input Logic Level - High
- 1.5V~3.85V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 3.8V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.048 g
Overview
The SN74AHC1G00 performs the Boolean function Y = A·B(overline) or Y = A(overline) + B(overline) in positive logic. The SN74AHC1G00 device performs the NAND Boolean function Y = A x B(overline) or Y = A(overline) + B(overline) in positive logic
Applications
- IP Phones
- Notebook PCs
- Printers
- Access Control and Security
- Solar Inverters
- Personal Electronics
Key features
- Operating Range: 2 V to 5.5 V
- Maximum tₚd of 6.5 ns at 5 V
- Low Power Consumption: Maximum I₍₍CC₎₎ of 10 μA
- ±8-mA Output Drive at 5 V
- Schmitt Trigger Action at All Inputs Makes the Circuit Tolerant for Slower Input Rise and Fall Time
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22 – 2000-V Human-Body Model (A114-A) 1000-V Charged-Device Model (C101)
