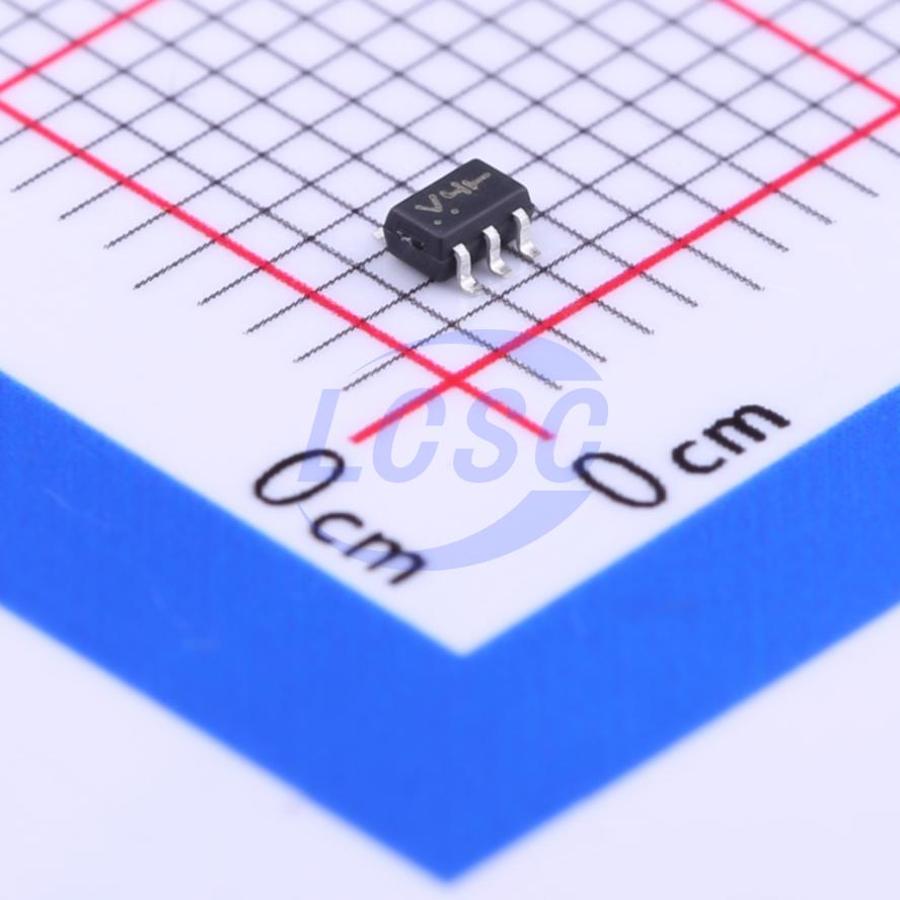

onsemi

MC74VHC1G32DFT1G

StandardCMOS 2V~5.5V 7.5ns@5V,50pF 1uA SC-70-5 Gates and Inverters RoHS

SC-70-5ROHS3 CompliantActive

Single 2-input OR Gate

Manufacturer: onsemi
Manufacturer part #: MC74VHC1G32DFT1G
Store part #: C233640
Package / case: SC-70-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,950 in stock

#C233640

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹9.70	₹48.50
50+	₹7.57	₹378.50
150+	₹6.50	₹975.00
500+	₹5.70	₹2,850.00
3,000+	₹5.07	₹15,210.00
6,000+	₹4.74	₹28,440.00

Quantity (min 5, multiples of 5)

5 × ₹9.70

₹48.50

excl. GST

₹57.23 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

MC74VHC1G32DFT1G

₹48.50 for 5 + GST

Specifications

Input Type: StandardCMOS
Logic Family: 74VHC Series
Voltage - Supply: 2V~5.5V
Output Logic Level - Low: 100mV;360mV;440mV;520mV
Propagation Delay: 7.5ns@5V,50pF
Features: Overvoltage-tolerant input;Local shutdown mode;Rear drive protection;Live insertion protection
Input Logic Level - Low: 500mV~1.65V
Input Logic Level - High: 1.5V~3.85V
Operating Temperature: -55℃~+125℃
Output Logic Level - High: 1.9V;2.9V;4.4V;2.58V;3.94V
Quiescent Current(Iq): 1uA
Current - Output High(IOH): 8mA
Number of Channels: 1;2
Current - Output Low(IOL): 8mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.028 g

Overview

The MC74VHC1G32 / MC74VHC1GT32 is a single 2−input OR Gate in tiny footprint packages. The MC74VHC1G32 has CMOS−level input thresholds while the MC74VHC1GT32 has TTL−level thresholds. The input structures provide protection when voltages up to 5.5 V are applied, regardless of the supply voltage. This allows the device to be used to interface 5 V circuits to 3 V circuits. Some output structures also provide protection when VCC = 0 V and when the output voltage exceeds VCC. These input and output structures help prevent device destruction caused by supply voltage − input/output voltage mismatch, battery backup, hot insertion, etc.

Key features

Designed for 2.0 V to 5.5 V VCC Operation
3.7 ns tPD at 5 V (typ)
Inputs/Outputs Over−Voltage Tolerant up to 5.5 V
IOFF Supports Partial Power Down Protection
Source/Sink 8 mA at 3.0 V
Available in SC−88A, SC−74A, TSOP−5, SOT−953 and UDFN6 Packages
Chip Complexity <100 FETs
NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
MC74VHC1G32DFT2G#C184692onsemi · SC-70-5	onsemi	SC-70-5	3,060	₹14.63 · 3,060 in stock	View
74AHC1G32GW,125#C12489Nexperia · SOT-353	Nexperia	SOT-353	14,105	₹11.60 · 14,105 in stock	View
SN74AHC1G32DCK3#C2873454TI · SC-70-5	TI	SC-70-5	825	₹29.95 · 825 in stock	View
74AHC1G32QSE-7#C4469042DIODES · SOT-353	DIODES	SOT-353	10	₹8.86 · 10 in stock	View
74AHC1G32SE-7#C460492DIODES · SOT-353	DIODES	SOT-353	925	₹10.41 · 925 in stock	View
