onsemiDatasheet (PDF)

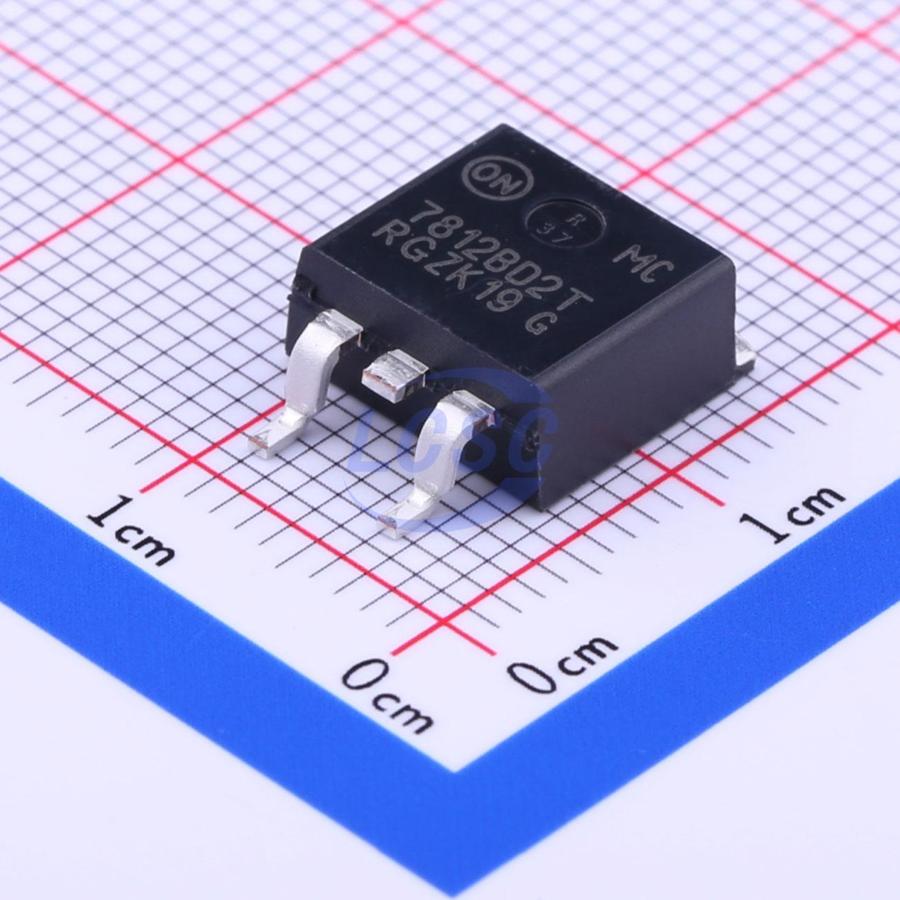

MC7812BD2TR4G
12V Positive Fixed TO-263-2 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-263-2ROHS3 CompliantActive
Positive Voltage Regulators
- Manufacturer
- onsemi
- Manufacturer part #
- MC7812BD2TR4G
- Store part #
- C231294
- Package / case
- TO-263-2
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,022 in stock
#C231294
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹75.27 | ₹75.27 |
| 10+ | ₹58.30 | ₹583.00 |
| 30+ | ₹51.12 | ₹1,533.60 |
| 100+ | ₹41.99 | ₹4,199.00 |
| 500+ | ₹38.08 | ₹19,040.00 |
| 800+ | ₹35.68 | ₹28,544.00 |
1 × ₹75.27
₹75.27
excl. GST
₹88.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
MC7812BD2TR4G
₹75.27 for 1 + GST
Specifications
- Output Voltage
- 12V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 3.4mA
- Output Configuration
- Positive
- Operating Voltage
- 27V
- Output Current
- 1A
- Features
- Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.728 g
Overview
These voltage regulators are monolithic integrated circuits designed as fixed−voltage regulators for a wide variety of applications including local, on−card regulation. These regulators employ internal current limiting, thermal shutdown, and safe−area compensation. With adequate heatsinking they can deliver output currents in excess of 1.0 A. Although designed primarily as a fixed voltage regulator, these devices can be used with external components to obtain adjustable voltages and currents.
Key features
- Output Current in Excess of 1.0 A
- No External Components Required
- Internal Thermal Overload Protection
- Internal Short Circuit Current Limiting
- Output Transistor Safe−Area Compensation
- Output Voltage Offered in 1.5%, 2% and 4% Tolerance
- Available in Surface Mount D²PAK−3, DPAK−3 and Standard 3−Lead Transistor Packages
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These are Pb−Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC7812ABD2TR4G#C152478onsemi · TO-263-2 | onsemi | TO-263-2 | 790 | ₹98.83 · 790 in stock | View |
 | CJ7812B-TGN-ARG#C20622086JSCJ · TO-263-2L | JSCJ | TO-263-2L | 160 | ₹39.31 · 160 in stock | View |
 | MC7812CD2TR4G#C38744onsemi · TO-263-2 | onsemi | TO-263-2 | 5,412 | ₹66.79 · 5,412 in stock | View |
 | MC7812ACD2TR4G#C185502onsemi · D2PAK | onsemi | D2PAK | 167 | ₹98.87 · 167 in stock | View |
 | L7812ABD2T-TR#C186698ST · TO-263-2 | ST | TO-263-2 | 3,650 | ₹91.15 · 3,650 in stock | View |
