onsemiDatasheet (PDF)

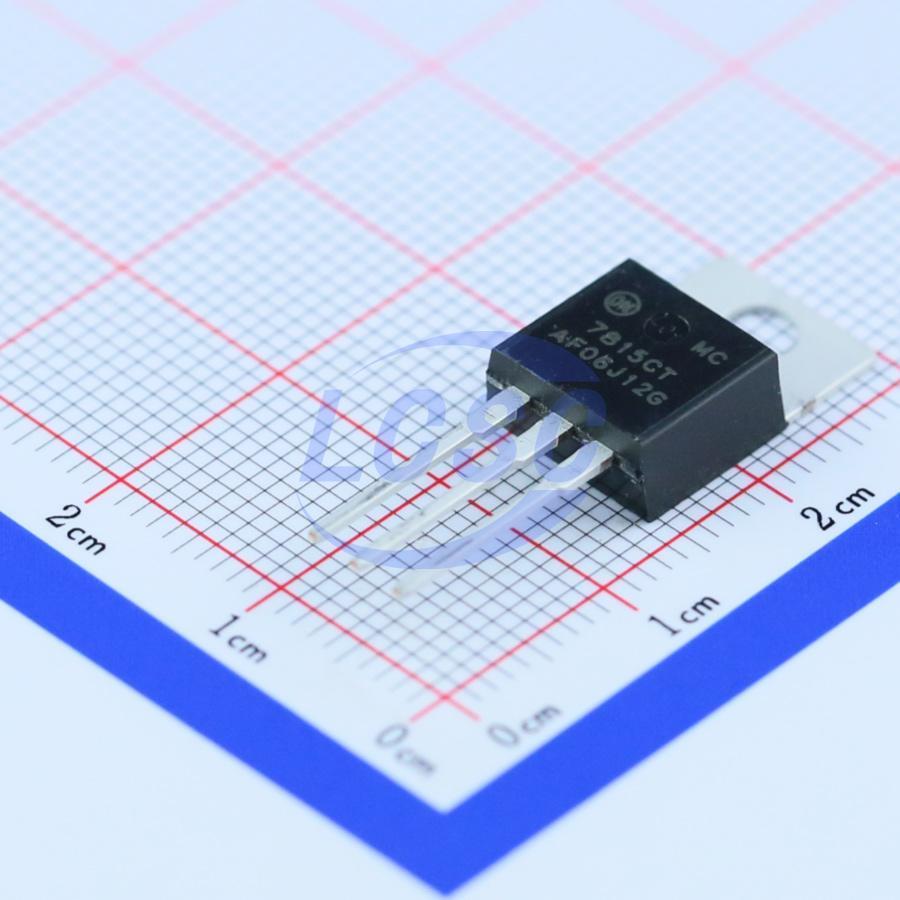

MC7815CTG
15V Positive Fixed TO-220 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-220ROHS3 CompliantActive
Positive Voltage Regulators
- Manufacturer
- onsemi
- Manufacturer part #
- MC7815CTG
- Store part #
- C110909
- Package / case
- TO-220
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,412 in stock
#C110909
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹53.65 | ₹53.65 |
| 10+ | ₹42.36 | ₹423.60 |
| 50+ | ₹34.11 | ₹1,705.50 |
| 100+ | ₹28.02 | ₹2,802.00 |
| 500+ | ₹25.41 | ₹12,705.00 |
| 1,000+ | ₹23.89 | ₹23,890.00 |
1 × ₹53.65
₹53.65
excl. GST
₹63.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
MC7815CTG
₹53.65 for 1 + GST
Specifications
- Output Voltage
- 15V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 3.5mA
- Output Configuration
- Positive
- Operating Voltage
- 35V
- Output Current
- 1A
- Features
- Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.16 g
Overview
These voltage regulators are monolithic integrated circuits designed as fixed−voltage regulators for a wide variety of applications including local, on−card regulation. These regulators employ internal current limiting, thermal shutdown, and safe−area compensation. With adequate heatsinking they can deliver output currents in excess of 1.0 A. Although designed primarily as a fixed voltage regulator, these devices can be used with external components to obtain adjustable voltages and currents.
Key features
- Output Current in Excess of 1.0 A
- No External Components Required
- Internal Thermal Overload Protection
- Internal Short Circuit Current Limiting
- Output Transistor Safe−Area Compensation
- Output Voltage Offered in 1.5%, 2% and 4% Tolerance
- Available in Surface Mount D²PAK−3, DPAK−3 and Standard 3−Lead Transistor Packages
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These are Pb−Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC7815BTG#C76382onsemi · TO-220AB | onsemi | TO-220AB | 6,560 | ₹57.22 · 6,560 in stock | View |
| AS7815AT-E1#C7217864DIODES · TO-220-3 | DIODES | TO-220-3 | 57 | ₹94.99 · 57 in stock | View | |
 | CJ7815B-TBN-ATG#C20622082JSCJ · TO-220-3L | JSCJ | TO-220-3L | 240 | ₹41.03 · 240 in stock | View |
 | L7815ABV#C191255ST · TO-220 | ST | TO-220 | 497 | ₹83.88 · 497 in stock | View |
 | MC7815ACTG#C232653onsemi · TO-220 | onsemi | TO-220 | 217 | ₹111.71 · 217 in stock | View |
