onsemiDatasheet (PDF)

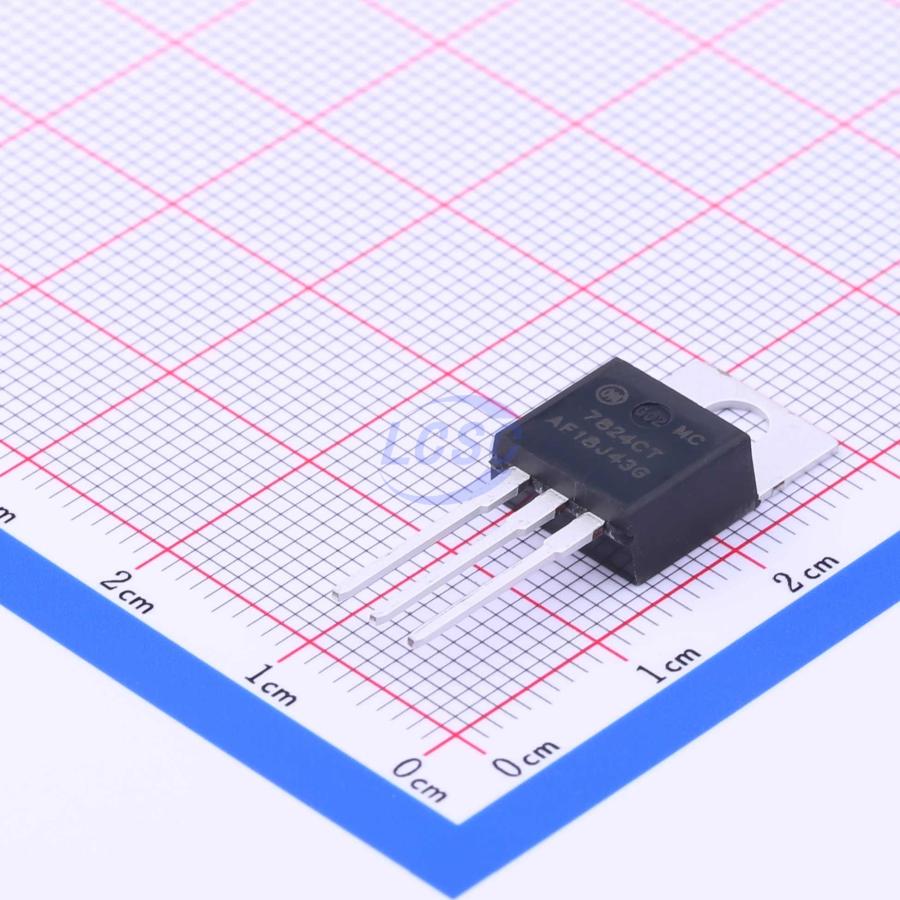

MC7824CTG
24V Positive Fixed TO-220 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-220ROHS3 CompliantActive
1.0 A Positive Voltage Regulators
- Manufacturer
- onsemi
- Manufacturer part #
- MC7824CTG
- Store part #
- C165447
- Package / case
- TO-220
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,071 in stock
#C165447
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹71.03 | ₹71.03 |
| 10+ | ₹56.92 | ₹569.20 |
| 50+ | ₹49.31 | ₹2,465.50 |
| 100+ | ₹42.36 | ₹4,236.00 |
| 500+ | ₹38.01 | ₹19,005.00 |
| 1,000+ | ₹35.84 | ₹35,840.00 |
1 × ₹71.03
₹71.03
excl. GST
₹83.82 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
MC7824CTG
₹71.03 for 1 + GST
Specifications
- Output Voltage
- 24V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃
- Supply Current (Iq)
- 6.5mA
- Output Configuration
- Positive
- Output Current
- 1A
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.16 g
Overview
These voltage regulators are monolithic integrated circuits designed as fixed−voltage regulators for a wide variety of applications including local, on−card regulation. These regulators employ internal current limiting, thermal shutdown, and safe−area compensation. With adequate heatsinking they can deliver output currents in excess of 1.0 A. Although designed primarily as a fixed voltage regulator, these devices can be used with external components to obtain adjustable voltages and currents.
Key features
- Output Current in Excess of 1.0 A
- No External Components Required
- Internal Thermal Overload Protection
- Internal Short Circuit Current Limiting
- Output Transistor Safe−Area Compensation
- Output Voltage Offered in 1.5%, 2% and 4% Tolerance
- Available in Surface Mount D²PAK−3, DPAK−3 and Standard 3−Lead Transistor Packages
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These are Pb−Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM7824T#C2902512HGSEMI · TO-220 | HGSEMI | TO-220 | 1,010 | ₹42.44 · 1,010 in stock | View |
 | HX7824CTG#C2977111HANSCHIP semiconductor · TO-220-3L | HANSCHIP semiconductor | TO-220-3L | 860 | ₹29.78 · 860 in stock | View |
 | L7824CV(XBLW)#C45351495XBLW · TO-220 | XBLW | TO-220 | On request | Price on request | Quote |
