onsemiDatasheet (PDF)

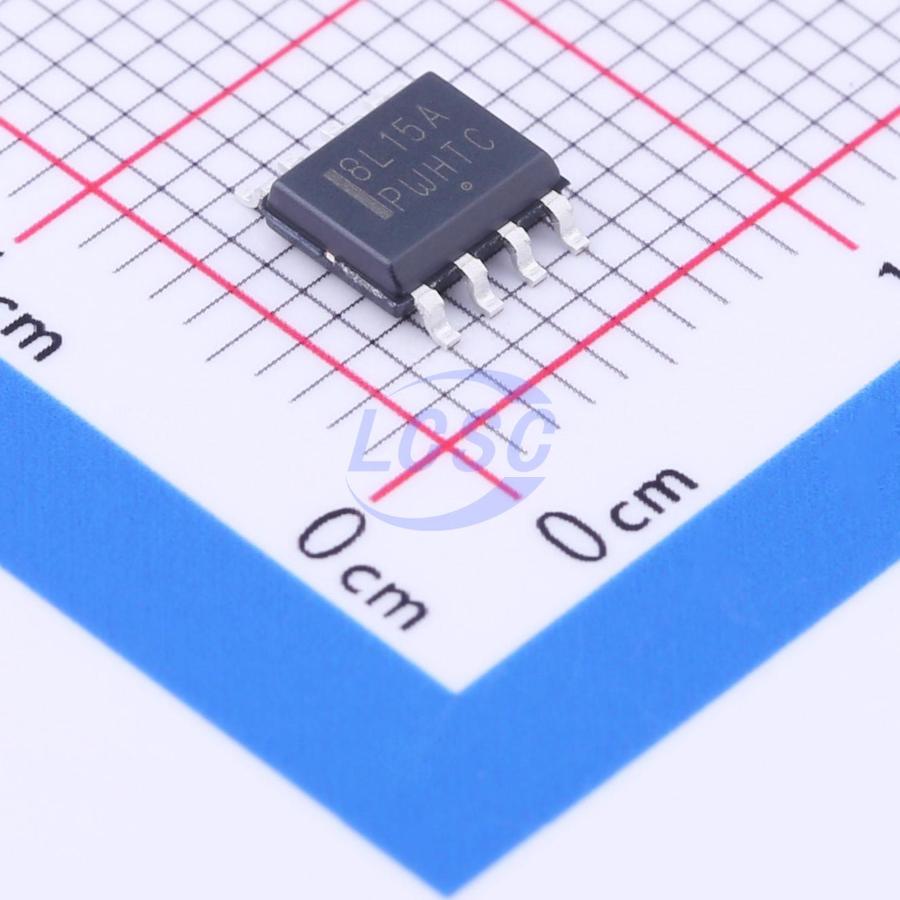

MC78L15ACDR2G
15V Positive Fixed SOIC-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOIC-8ROHS3 CompliantActive
Positive Voltage Regulators
- Manufacturer
- onsemi
- Manufacturer part #
- MC78L15ACDR2G
- Store part #
- C233225
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,575 in stock
#C233225
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.28 | ₹96.40 |
| 50+ | ₹15.39 | ₹769.50 |
| 150+ | ₹13.44 | ₹2,016.00 |
| 500+ | ₹11.97 | ₹5,985.00 |
| 2,500+ | ₹9.71 | ₹24,275.00 |
| 5,000+ | ₹9.13 | ₹45,650.00 |
5 × ₹19.28
₹96.40
excl. GST
₹113.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC78L15ACDR2G
₹96.40 for 5 + GST
Specifications
- Output Voltage
- 15V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 4.4mA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 100mA
- Features
- Short Circuit Protection;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.207 g
Overview
The MC78L00A Series of positive voltage regulators are inexpensive, easy−to−use devices suitable for a multitude of applications that require a regulated supply of up to 100 mA. Like their higher powered MC7800 and MC78M00 Series cousins, these regulators feature internal current limiting and thermal shutdown making them remarkably rugged. No external components are required with the MC78L00 devices in many applications. These devices offer a substantial performance advantage over the traditional zener diode−resistor combination, as output impedance and quiescent current are substantially reduced.
Key features
- Wide Range of Available, Fixed Output Voltages
- Low Cost
- Internal Short Circuit Current Limiting
- Internal Thermal Overload Protection
- No External Components Required
- Complementary Negative Regulators Offered (MC79L00A Series)
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These are Pb−Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | UA78L15ACDR#C354524TI · SOIC-8 | TI | SOIC-8 | 63 | ₹63.24 · 63 in stock | View |
 | L78L15CD-TR#C2971146ST · SOIC-8 | ST | SOIC-8 | 52 | ₹29.56 · 52 in stock | View |
 | TP78L15S8#C51886227TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 2,985 | ₹13.03 · 2,985 in stock | View |
 | MC78L15ABDR2G-TP#C51886229TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 2,990 | ₹11.79 · 2,990 in stock | View |
 | L78L15ACD13TR-TP#C51886230TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 2,820 | ₹11.80 · 2,820 in stock | View |
