onsemiDatasheet (PDF)

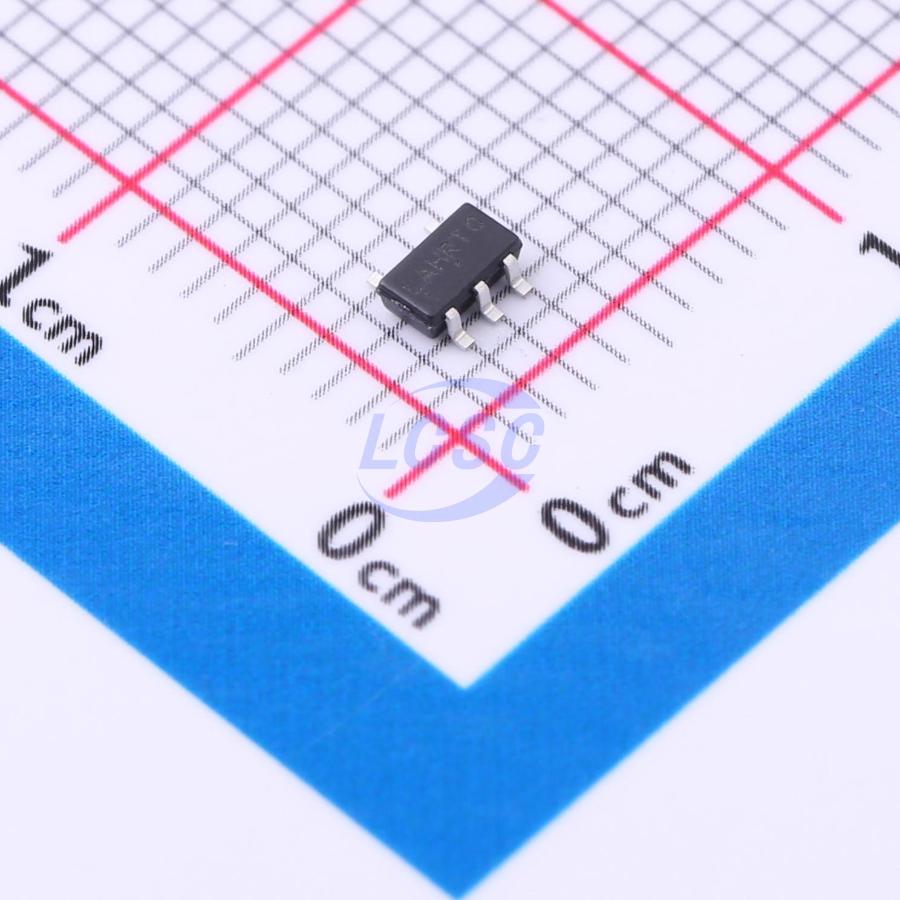

MC78LC18NTRG
1.8V Positive Fixed TSOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TSOT-23-5ROHS3 CompliantActive
Voltage Regulator Micropower
- Manufacturer
- onsemi
- Manufacturer part #
- MC78LC18NTRG
- Store part #
- C891507
- Package / case
- TSOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,018 in stock
#C891507
Stock & price checked 40 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹75.16 | ₹75.16 |
| 10+ | ₹55.45 | ₹554.50 |
| 30+ | ₹45.50 | ₹1,365.00 |
| 100+ | ₹35.75 | ₹3,575.00 |
| 500+ | ₹17.07 | ₹8,535.00 |
| 1,000+ | ₹14.02 | ₹14,020.00 |
1 × ₹75.16
₹75.16
excl. GST
₹88.69 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MC78LC18NTRG
₹75.16 for 1 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1.1uA
- Output Configuration
- Positive
- Output Current
- 50mA
- Operating Voltage
- 12V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.041 g
Overview
The MC78LC00 series of fixed output low dropout linear regulators are designed for handheld communication equipment and portable battery powered applications which require low quiescent current. The MC78LC00 series features an ultra−low quiescent current of 1.1 μA. Each device contains a voltage reference unit, an error amplifier, a PMOS power transistor, and resistors for setting output voltage. The MC78LC00 has been designed to be used with low cost ceramic capacitors and requires a minimum output capacitor of 0.1 μF. The device is housed in the micro−miniature Thin SOT23−5 surface mount package and SOT−89, 3 pin. Standard voltage versions are 1.5, 1.8, 2.5, 2.7, 2.8, 3.0, 3.3, 4.0, and 5.0 V. Other voltages are available in 100 mV steps.
Applications
- Battery Powered Instruments
- Hand−Held Instruments
- Camcorders and Cameras
Key features
- Low Quiescent Current of 1.1 μA Typical
- Excellent Line and Load Regulation
- Maximum Operating Voltage of 12 V
- Low Output Voltage Option
- High Accuracy Output Voltage of 2.5%
- Industrial Temperature Range of -40°C to 85°C
- Two Surface Mount Packages (SOT−89, 3 Pin, or SOT−23, 5 Pin)
- These are Pb−Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | H7218-1M5R#C49331821Siproin · SOT-23-5 | Siproin | SOT-23-5 | 2,975 | ₹14.90 · 2,975 in stock | View |
 | TPS70918DBVR#C779346TI · SOT-23-5 | TI | SOT-23-5 | 233 | ₹177.52 · 233 in stock | View |
 | SK6215ES5-18#C52034527Suntek · SOT-23-5L | Suntek | SOT-23-5L | 300 | ₹18.47 · 300 in stock | View |
 | TPS70918DBVR-TP#C50314381TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 9,775 | ₹12.09 · 9,775 in stock | View |
 | TPS70918DBVR-MS#C54539951MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 2,780 | ₹12.45 · 2,780 in stock | View |
