onsemiDatasheet (PDF)

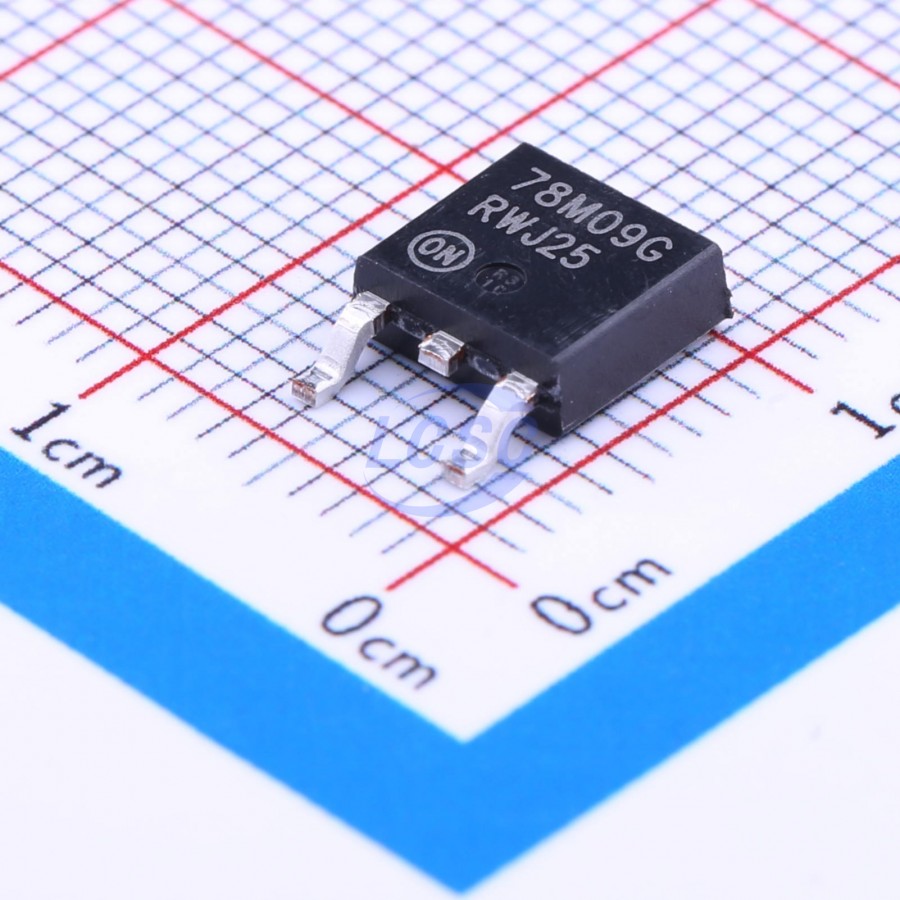

MC78M09CDTRKG
9V Positive Fixed DPAK-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DPAK-3ROHS CompliantActive
500 mA Positive Voltage Regulators
- Manufacturer
- onsemi
- Manufacturer part #
- MC78M09CDTRKG
- Store part #
- C148310
- Package / case
- DPAK-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,310 in stock
#C148310
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.60 | ₹143.00 |
| 50+ | ₹22.14 | ₹1,107.00 |
| 150+ | ₹19.38 | ₹2,907.00 |
| 500+ | ₹15.35 | ₹7,675.00 |
| 2,500+ | ₹13.82 | ₹34,550.00 |
| 5,000+ | ₹12.89 | ₹64,450.00 |
5 × ₹28.60
₹143.00
excl. GST
₹168.74 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC78M09CDTRKG
₹143.00 for 5 + GST
Specifications
- Output Voltage
- 9V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 3.2mA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 23V
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection;Enable control
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.526 g
Overview
The MC78M00/MC78M00A Series positive voltage regulators are identical to the popular MC7800 Series devices, except that they are specified for only half the output current. Like the MC7800 devices, the MC78M00 three−terminal regulators are intended for local, on−card voltage regulation. Internal current limiting, thermal shutdown circuitry and safe−area compensation for the internal pass transistor combine to make these devices remarkably rugged under most operating conditions. Maximum output current, with adequate heatsinking is 500 mA.
Key features
- No External Components Required
- Internal Thermal Overload Protection
- Internal Short Circuit Current Limiting
- Output Transistor Safe−Area Compensation
- MC78M00A High Accuracy (±2%) Available for 5.0 V, 8.0 V, 12 V and 15 V
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These are Pb−Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC78M09BDTRKG#C193034onsemi · DPAK-3 | onsemi | DPAK-3 | 6,205 | ₹43.07 · 6,205 in stock | View |
 | SL78M09#C41428763Slkor · TO-252-3 | Slkor | TO-252-3 | 60 | ₹10.57 · 60 in stock | View |
 | L78M09HDTR(XBLW)#C20612523XBLW · TO-252-2 | XBLW | TO-252-2 | 2,030 | ₹9.11 · 2,030 in stock | View |
 | TP78M09K3#C5371011TECH PUBLIC · TO-252 | TECH PUBLIC | TO-252 | 230 | ₹8.53 · 230 in stock | View |
| BD90C0AFPS-E2#C17466198ROHM · TO-252S-3 | ROHM | TO-252S-3 | On request | Price on request | Quote | |
