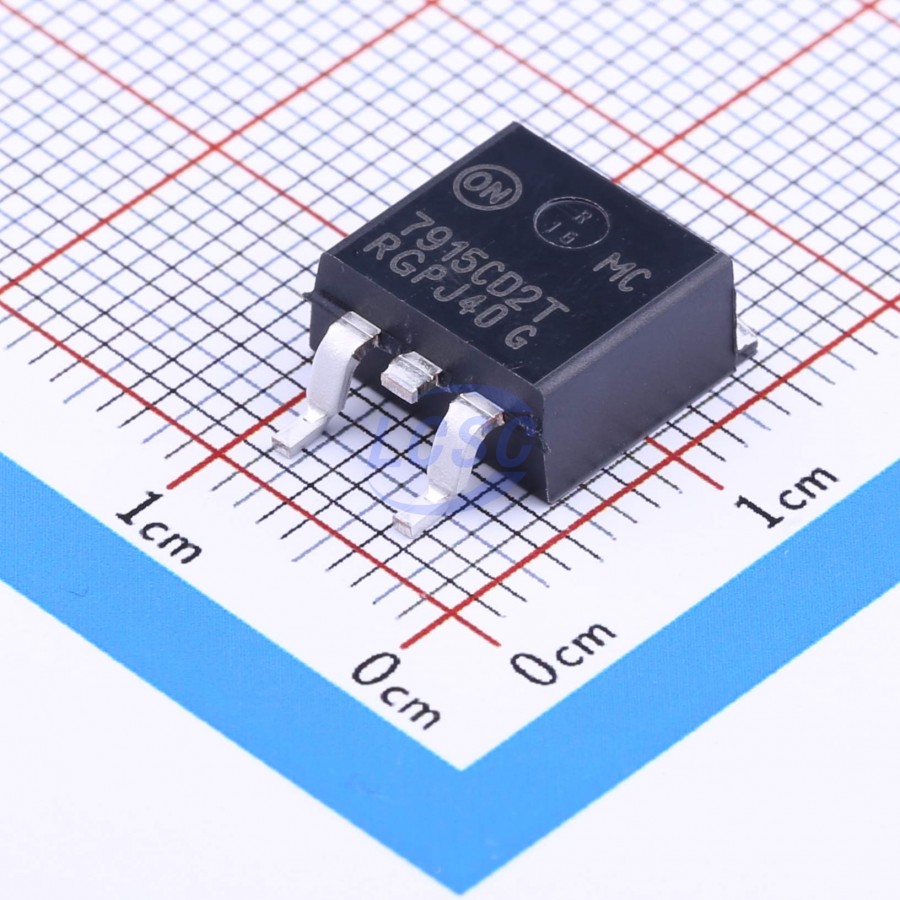

MC7915CD2TR4G
Linear Voltage Regulator IC Negative Fixed 1 Output 1A TO-263-2
TO-263-2ROHS3 CompliantActive
1.0 A negative voltage regulator
- Manufacturer
- onsemi
- Manufacturer part #
- MC7915CD2TR4G
- Store part #
- C153065
- Package / case
- TO-263-2
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,167 in stock
#C153065
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹75.35 | ₹75.35 |
| 10+ | ₹61.25 | ₹612.50 |
| 30+ | ₹54.21 | ₹1,626.30 |
| 100+ | ₹47.16 | ₹4,716.00 |
| 500+ | ₹36.86 | ₹18,430.00 |
| 800+ | ₹34.87 | ₹27,896.00 |
1 × ₹75.35
₹75.35
excl. GST
₹88.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 800 per reel
MC7915CD2TR4G
₹75.35 for 1 + GST
Specifications
- Output Voltage
- 15V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Output Configuration
- Negative
- Operating Voltage
- 35V
- Output Current
- 1A
- Features
- Over Current Protection;Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.816 g
Overview
The MC7900 series of fixed output negative voltage regulators are intended as complements to the popular MC7800 series devices. These negative regulators are available in the same seven−voltage options as the MC7800 devices. In addition, one extra voltage option commonly employed in MECL systems is also available in the negative MC7900 series. Available in fixed output voltage options from -5.0 V to -24 V, these regulators employ current limiting, thermal shutdown, and safe−area compensation − making them remarkably rugged under most operating conditions. With adequate heatsinking they can deliver output currents in excess of 1.0 A.
Key features
- No External Components Required
- Internal Thermal Overload Protection
- Internal Short Circuit Current Limiting
- Output Transistor Safe−Area Compensation
- Available in 2% Voltage Tolerance (See Ordering Information)
- Pb−Free Package May be Available. The G−Suffix Denotes a Pb−Free Lead Finish
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC7915ACD2TG#C464027onsemi · TO-263(D2PAK) | onsemi | TO-263(D2PAK) | 97 | ₹147.16 · 97 in stock | View |
 | MC7915BD2TR4G#C35945onsemi · TO-263-2 | onsemi | TO-263-2 | 3,839 | ₹73.36 · 3,839 in stock | View |
 | L7915CD2TKT#C52204661GREENMICRO · TO-263-2 | GREENMICRO | TO-263-2 | 1,155 | ₹29.57 · 1,155 in stock | View |
 | LM2990S-15/NOPB#C2860711TI · DDPAK-3(TO-263-3) | TI | DDPAK-3(TO-263-3) | 19 | ₹561.32 · 19 in stock | View |
 | MC7915BD2TG#C603290onsemi · TO-263 | onsemi | TO-263 | On request | Price on request | Quote |
