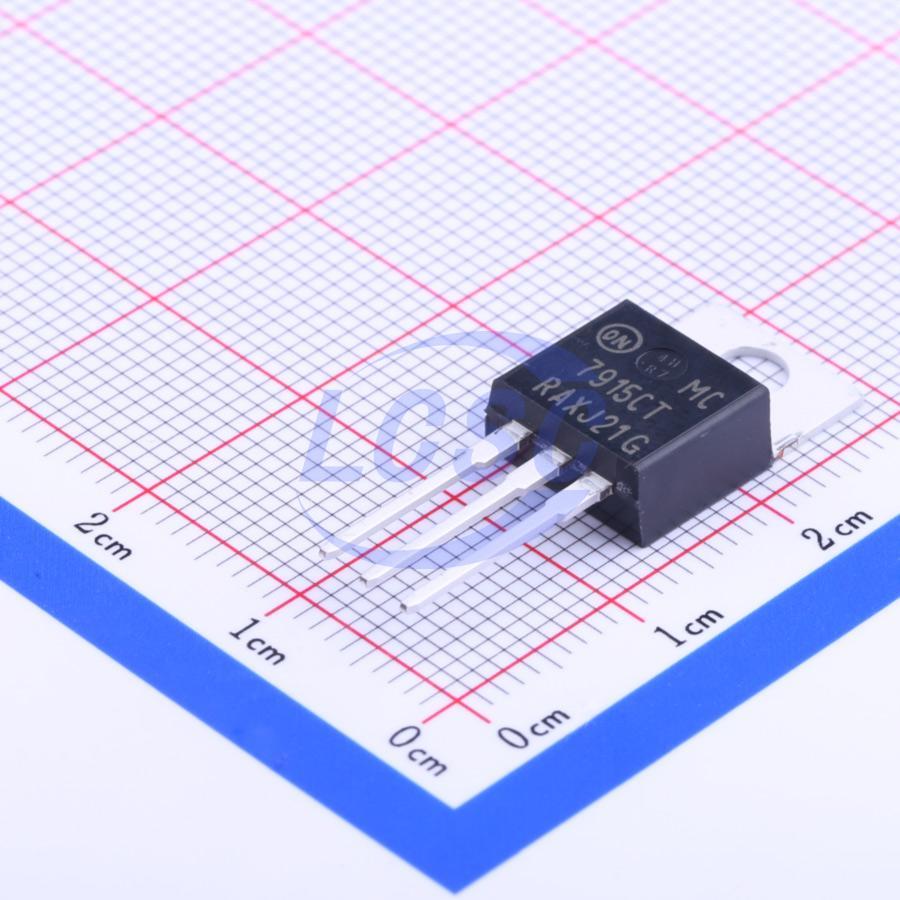

MC7915CTG
Linear Voltage Regulator IC Negative Fixed 1 Output 1A TO-220
TO-220ROHS3 CompliantActive
1.0 A negative voltage regulator
- Manufacturer
- onsemi
- Manufacturer part #
- MC7915CTG
- Store part #
- C126458
- Package / case
- TO-220
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,635 in stock
#C126458
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹80.61 | ₹80.61 |
| 10+ | ₹61.70 | ₹617.00 |
| 50+ | ₹49.76 | ₹2,488.00 |
| 100+ | ₹39.77 | ₹3,977.00 |
| 500+ | ₹35.21 | ₹17,605.00 |
| 1,000+ | ₹32.60 | ₹32,600.00 |
1 × ₹80.61
₹80.61
excl. GST
₹95.12 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
MC7915CTG
₹80.61 for 1 + GST
Specifications
- Output Voltage
- 15V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃
- Output Configuration
- Negative
- Operating Voltage
- 35V
- Output Current
- 1A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.16 g
Overview
The MC7900 series of fixed output negative voltage regulators are intended as complements to the popular MC7800 series devices. These negative regulators are available in the same seven−voltage options as the MC7800 devices. In addition, one extra voltage option commonly employed in MECL systems is also available in the negative MC7900 series. Available in fixed output voltage options from -5.0 V to -24 V, these regulators employ current limiting, thermal shutdown, and safe−area compensation − making them remarkably rugged under most operating conditions. With adequate heatsinking they can deliver output currents in excess of 1.0 A.
Key features
- No External Components Required
- Internal Thermal Overload Protection
- Internal Short Circuit Current Limiting
- Output Transistor Safe−Area Compensation
- Available in 2% Voltage Tolerance (See Ordering Information)
- Pb−Free Package May be Available. The G−Suffix Denotes a Pb−Free Lead Finish
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC7915ACTG#C897078onsemi · TO-220AB | onsemi | TO-220AB | 20 | ₹125.82 · 20 in stock | View |
 | MC7915BTG#C111284onsemi · TO-220 | onsemi | TO-220 | 2,808 | ₹72.79 · 2,808 in stock | View |
 | L7915ACV#C163543ST · TO-220 | ST | TO-220 | 1,447 | ₹79.54 · 1,447 in stock | View |
 | L7915CV#C5377676Minos · TO-220 | Minos | TO-220 | 40 | ₹28.59 · 40 in stock | View |
 | L7915CV(MS)#C20538904MSKSEMI · TO-220 | MSKSEMI | TO-220 | 20 | ₹31.34 · 20 in stock | View |
