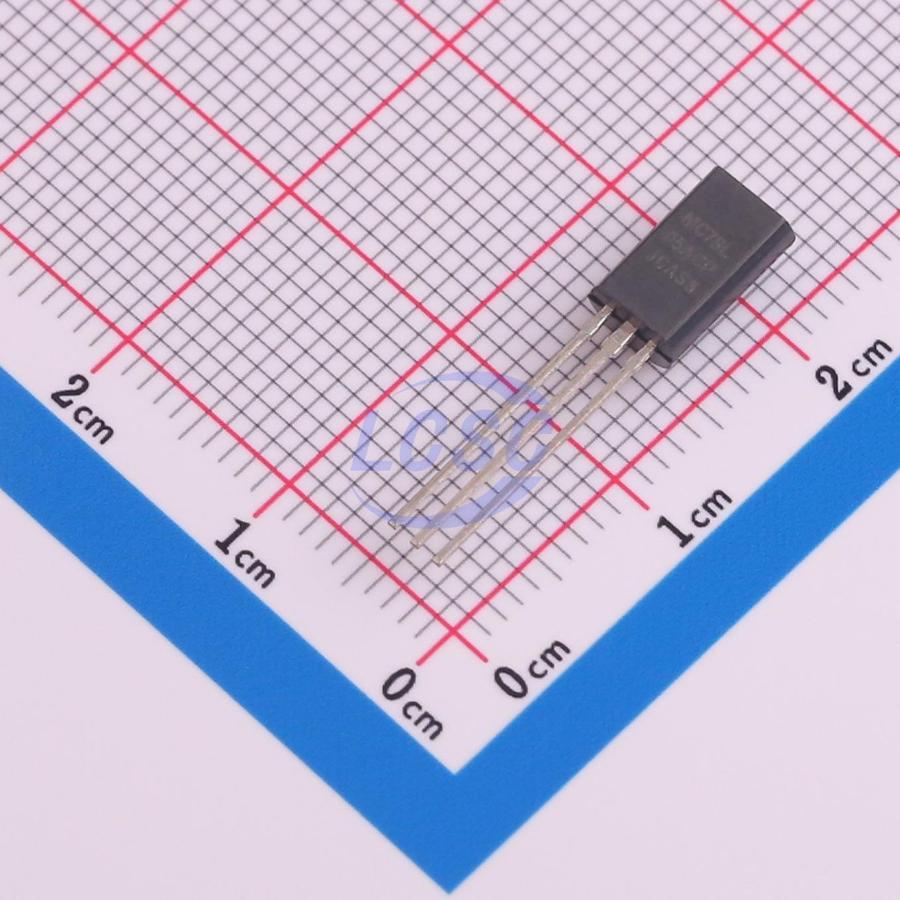

MC79L05ACPG
5V Negative Fixed TO-92-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-92-3ROHS3 CompliantActive
Negative Voltage Regulators
- Manufacturer
- onsemi
- Manufacturer part #
- MC79L05ACPG
- Store part #
- C233232
- Package / case
- TO-92-3
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
34,640 in stock
#C233232
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.26 | ₹96.30 |
| 50+ | ₹14.94 | ₹747.00 |
| 150+ | ₹13.07 | ₹1,960.50 |
| 500+ | ₹10.76 | ₹5,380.00 |
| 2,000+ | ₹9.72 | ₹19,440.00 |
| 4,000+ | ₹9.12 | ₹36,480.00 |
5 × ₹19.26
₹96.30
excl. GST
₹113.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per bag
MC79L05ACPG
₹96.30 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Output Configuration
- Negative
- Operating Voltage
- 20V
- Output Current
- 100mA
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 2,000 / Bag
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.21 g
Overview
The MC79L00A Series negative voltage regulators are inexpensive, easy−to−use devices suitable for numerous applications requiring up to 100 mA. Like the higher powered MC7900 Series negative regulators, this series features thermal shutdown and current limiting, making them remarkably rugged. In most applications, no external components are required for operation. The MC79L00A devices are useful for on−card regulation or any other application where a regulated negative voltage at a modest current level is needed. These regulators offer substantial advantage over the common resistor/Zener diode approach.
Key features
- No External Components Required
- Internal Short Circuit Current Limiting
- Internal Thermal Overload Protection
- Low Cost
- Complementary Positive Regulators Offered (MC78L00 Series)
- Pb−Free Packages are Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | L79L05ACZ-TR#C3749639ST · TO-92-3 | ST | TO-92-3 | 3 | ₹69.55 · 3 in stock | View |
 | MC79L05ACPRAG#C903153onsemi · TO-92 | onsemi | TO-92 | 7 | ₹84.04 · 7 in stock | View |
| MC79L05ACLPR#C2877256TI · TO-92 | TI | TO-92 | 90 | ₹23.14 · 90 in stock | View | |
 | L79L05ACZ#C283282ST · TO-92-3 | ST | TO-92-3 | 4,160 | ₹44.98 · 4,160 in stock | View |
 | CJ79L05#C8617JSCJ · TO-92 | JSCJ | TO-92 | 825 | ₹13.61 · 825 in stock | View |
