lingxingicDatasheet (PDF)

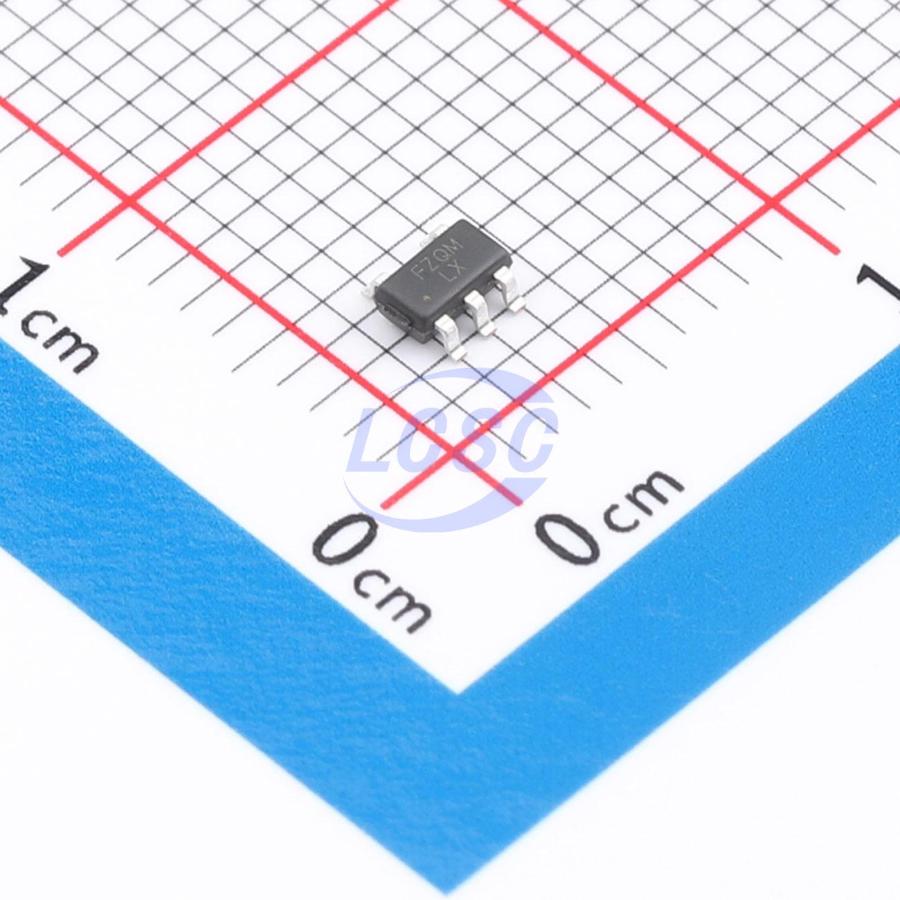

MCP1416T-E/OT(LX)
4.5V~18V 1.5A 1.5A SOT-23-5 Gate Drivers
SOT-23-5RoHSActive
- Manufacturer
- lingxingic
- Manufacturer part #
- MCP1416T-E/OT(LX)
- Store part #
- C52261119
- Package / case
- SOT-23-5
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,715 in stock
#C52261119
Stock & price checked 43 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.10 | ₹130.50 |
| 50+ | ₹20.64 | ₹1,032.00 |
| 150+ | ₹18.30 | ₹2,745.00 |
| 500+ | ₹15.37 | ₹7,685.00 |
| 3,000+ | ₹14.08 | ₹42,240.00 |
| 6,000+ | ₹13.30 | ₹79,800.00 |
5 × ₹26.10
₹130.50
excl. GST
₹153.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MCP1416T-E/OT(LX)
₹130.50 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 15ns
- High Level Delay Time
- 20ns
- Input Logic Level - High
- 2.4V
- Voltage - Supply
- 4.5V~18V
- Driven Configuration
- Low Side
- Operating Temperature
- -40℃~+85℃
- Current - Output Low(IOL)
- 1.5A
- Rise Time
- 10ns
- Fall Time
- 10ns
- Current - Output High(IOH)
- 1.5A
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
The circuit primarily converts a single TTL-compatible input to a single high-current, high-voltage output with considerable drive capability, supporting non-inverting input-to-output operation. Key features include high reliability, supply voltage range of +4.5V ~ +18V, logic input voltage range of -5V ~ VDD + 0.3V, TTL-compatible input, peak output current of 1.5A (VDD = 18V), operating temperature range of -40 ~ +85℃, and SOT23-5 package.
Key features
- Operating voltage range: +4.5V ~ +18V
- Logic input voltage range: -5V ~ VDD + 0.3V
- TTL-compatible input
- Output peak current: 1.5A (VDD = 18V)
- Operating temperature range: -40 ~ +85℃
- Package: SOT23-5
- High reliability
