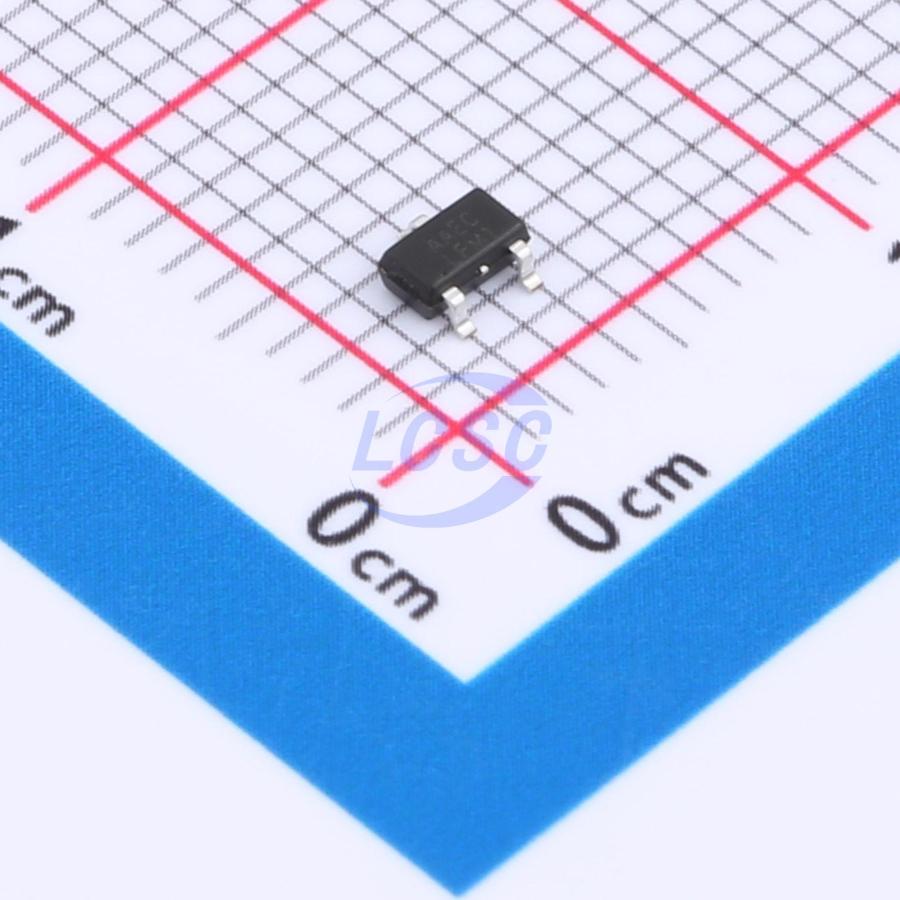

MCP1700T-2502E/TT(MS)

The MCP1700T-XX02E/TT(MS) series is a family of low dropout (LDO) regulators featuring a wide input voltage range of 1.2V to 5.5V, low dropout voltage, low quiescent current, and a compact package. With a quiescent current as low as 2uA, the MCP1700T-XX02E/TT(MS) is particularly well-suited for battery-powered and long-term standby applications, helping to reduce system standby power consumption and effectively extend standby time and battery life. The MCP1700T-XX02E/TT(MS) is available in a version with an EN enable pin; pulling the EN pin low activates shutdown mode, in which the quiescent current drops to as low as 100nA (typical). The MCP1700T-XX02E/TT(MS) series supports ceramic output capacitors and operates stably across the full 1.2V to 5.5V input voltage range and the entire output load current range of 0mA to 300mA.

Applications

• Handheld, battery-powered devices
• Low-power microprocessors
• Laptops, palmtop computers, and PDAs
• Wireless communication devices
• Audio/video equipment
• Automotive navigation systems

Key features

• 2μA quiescent current (no load)
• ±2% output voltage accuracy
• 300mA output current capability
• 100nA shutdown current (optional version)
• Wide input voltage range: 1.2V to 5.5V
• Low dropout: 0.18V (at ΔVO = 3.3V / Io = 300mA)
• Fixed output voltage options: 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
• Ceramic or tantalum capacitor compatible
• Current limiting protection
• Over-temperature protection
