MICROCHIP

MCP25625T-E/ML

4.5V~5.5V CAN Controller 1Mbps QFN-28-EP(6x6) Drivers, Receivers, Transceivers RoHS

QFN-28-EP(6x6)ROHS3 CompliantActive

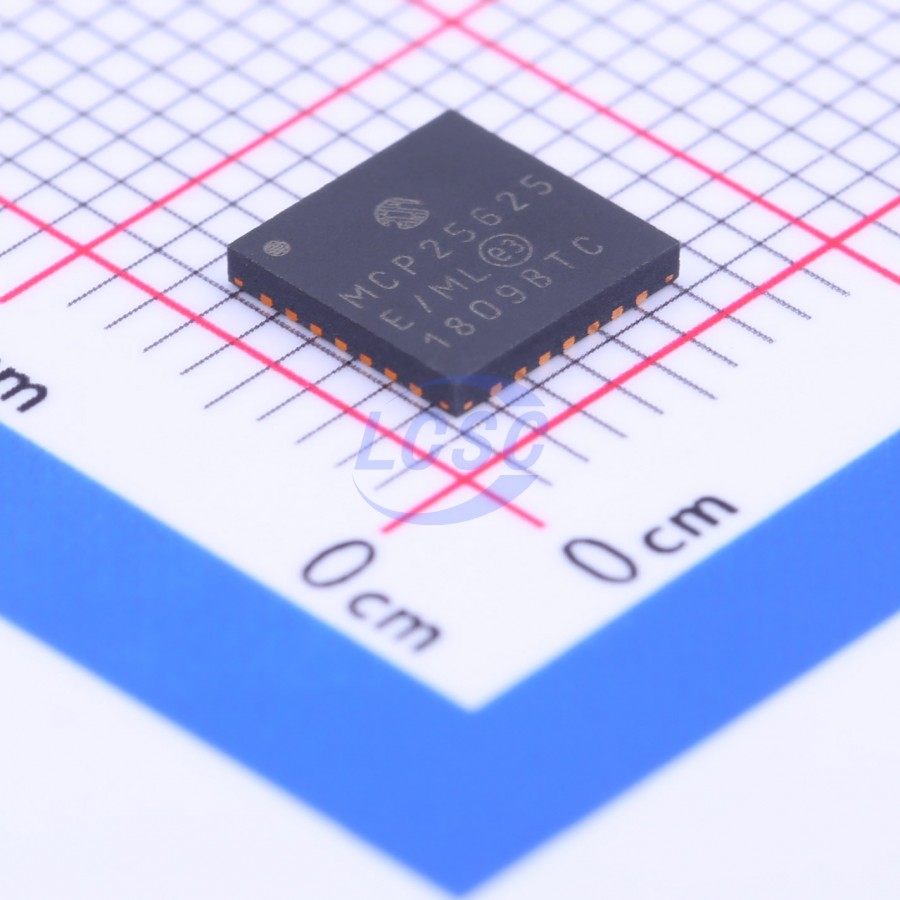

CAN Controller with Integrated Transceiver

Manufacturer: MICROCHIP
Manufacturer part #: MCP25625T-E/ML
Store part #: C191253
Package / case: QFN-28-EP(6x6)
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,796 in stock

#C191253

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹254.88	₹254.88
10+	₹218.53	₹2,185.30
30+	₹195.67	₹5,870.10
100+	₹166.29	₹16,629.00
500+	₹155.85	₹77,925.00
1,000+	₹151.27	₹1,51,270.00

Quantity (min 1)

1 × ₹254.88

₹254.88

excl. GST

₹300.76 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,600 per reel

MCP25625T-E/ML

₹254.88 for 1 + GST

Specifications

Voltage - Supply: 4.5V~5.5V
Type: CAN Controller
number of channels: 1
Data Rate: 1Mbps
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 10uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,600 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.232 g

Overview

The MCP25625 is a complete, cost-effective and small footprint CAN solution that can be easily added to a microcontroller with an available SPI interface. The MCP25625 interfaces directly with microcontrollers operating at 2.7V to 5.5V; there are no external level shifters required. In addition, the MCP25625 connects directly to the physical CAN bus, supporting all requirements for CAN high-speed transceivers. The MCP25625 meets the automotive requirements for high-speed (up to 1 Mb/s), low quiescent current, Electromagnetic Compatibility (EMC) and Electrostatic Discharge (ESD).

Key features

Stand-Alone CAN 2.0B Controller with Integrated CAN Transceiver and Serial Peripheral Interface (SPI)
Up to 1 Mb/s Operation
Very Low Standby Current (10 μA, typical)
Up to 10 MHz SPI Clock Speed
Interfaces Directly with Microcontrollers with 2.7V to 5.5V I/Os
Available in SSOP-28L and 6×6 QFN-28L
Temperature Ranges: - Extended (E): -40°C to +125°C
VDD: 2.7 to 5.5V
Implements CAN 2.0B (ISO11898-1)
Three Transmit Buffers with Prioritization and Abort Features
Two Receive Buffers
Six Filters and Two Masks with Optional Filtering on the First Two Data Bytes
Supports SPI Modes 0,0 and 1,1
Specific SPI Commands to Reduce SPI Overhead
Buffer Full and Request-to-Send Pins are Configurable as General Purpose I/Os
One Interrupt Output Pin
VDDA: 4.5V to 5.5V
Implements ISO-11898-2 and ISO-11898-5 Standard Physical Layer Requirements
CAN Bus Pins are Disconnected when Device is Unpowered: An unpowered node or brown-out event will not load the CAN bus
Detection of Ground Fault: Permanent Dominant detection on TXD, Permanent Dominant detection on bus
Power-on Reset and Voltage Brown-Out Protection on VDDA Pin
Protection Against Damage Due to Short-Circuit Conditions (Positive or Negative Battery Voltage)
Protection Against High-Voltage Transients in Automotive Environments
Automatic Thermal Shutdown Protection
Suitable for 12V and 24V Systems
Meets or Exceeds Stringent Automotive Design Requirements, Including “Hardware Requirements for LIN, CAN and FlexRay Interfaces in Automotive Applications”, Version 1.3, May 2012
High Noise Immunity Due to Differential Bus Implementation
High-ESD Protection on CANH and CANL, Meets IEC61000-4-2 up to ±8 kV
