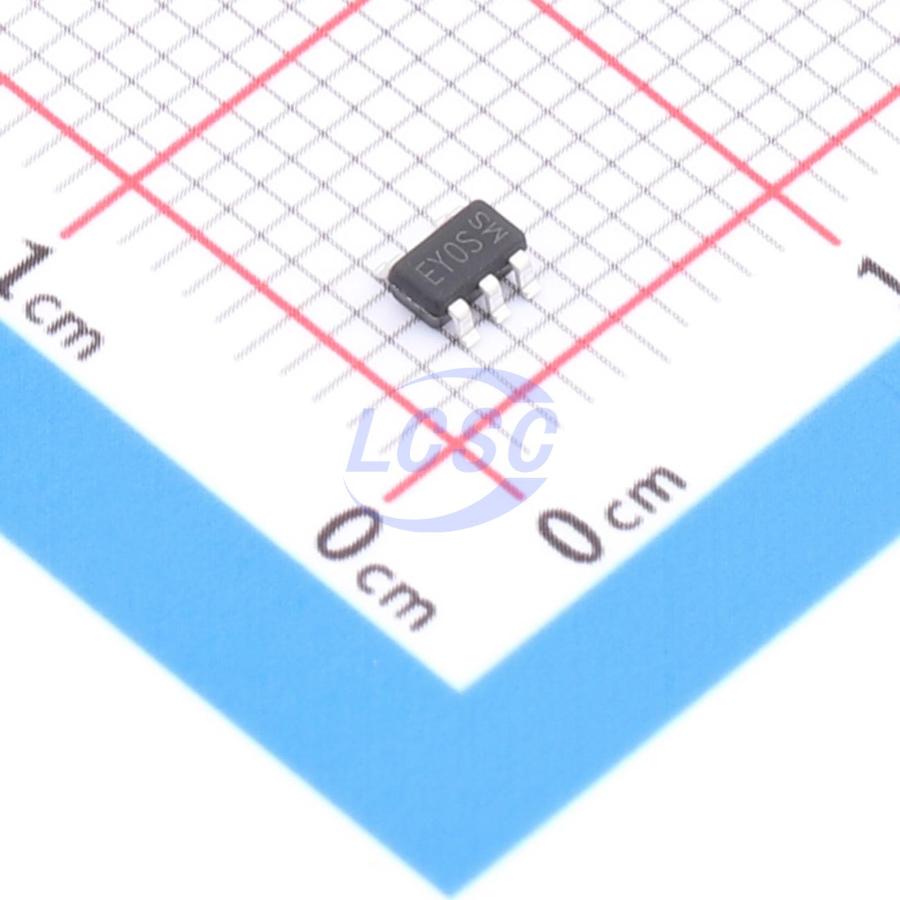

MCP6021T-E/OT-MS
400pA 300uA 11MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Audio Amplifiers
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MCP6021T-E/OT-MS
- Store part #
- C54539955
- Package / case
- SOT-23-5
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,845 in stock
#C54539955
Stock & price checked 41 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.79 | ₹193.95 |
| 50+ | ₹30.73 | ₹1,536.50 |
| 150+ | ₹27.28 | ₹4,092.00 |
| 500+ | ₹22.97 | ₹11,485.00 |
| 3,000+ | ₹21.05 | ₹63,150.00 |
| 6,000+ | ₹19.90 | ₹1,19,400.00 |
5 × ₹38.79
₹193.95
excl. GST
₹228.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MCP6021T-E/OT-MS
₹193.95 for 5 + GST
Specifications
- number of channels
- 1
- Ib - Input Bias Current
- 400pA
- Operating Temperature
- -40℃~+85℃
- Input Offset Current(Ios)
- 30pA
- Vos - Input Offset Voltage
- 800uV
- Output Current
- 20mA
- Common Mode Rejection Ratio (CMRR)
- 95dB
- Quiescent Current
- 300uA
- Gain Bandwidth Product
- 11MHz
- Input Offset Voltage Drift(Vos TC)
- 600nV/℃
- Single Supply
- 2.2V~5.5V
- Dual Supply
- -2.75V~-1.1V;1.1V~2.75V
- Slew Rate
- 10V/us
- Noise density(eN)
- 60nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.045 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLV9061IDBVR-MS#C54539962MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 2,780 | ₹23.05 · 2,780 in stock | View |
 | LMV721IDBVR-MS#C30602457MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 245 | ₹21.21 · 245 in stock | View |
