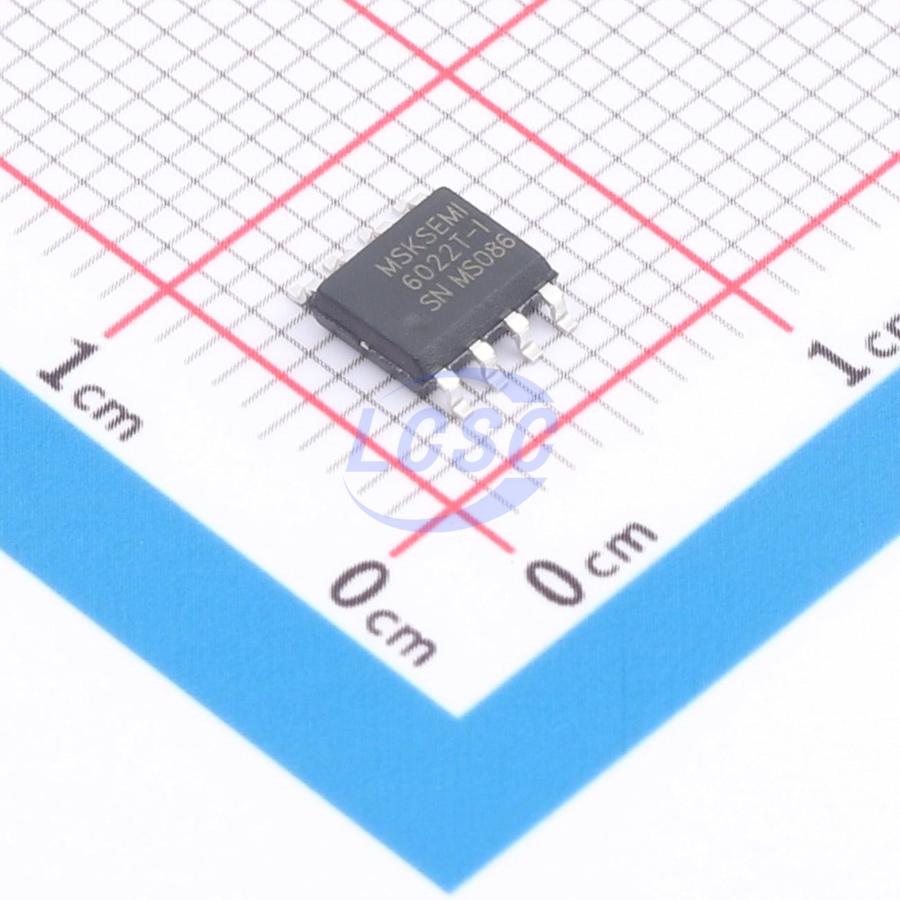

MCP6022T-I/SN-MS
400pA 300uA 11MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Audio Amplifiers
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MCP6022T-I/SN-MS
- Store part #
- C54539956
- Package / case
- SOP-8
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,215 in stock
#C54539956
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹41.69 | ₹208.45 |
| 50+ | ₹32.93 | ₹1,646.50 |
| 150+ | ₹29.19 | ₹4,378.50 |
| 500+ | ₹24.50 | ₹12,250.00 |
| 2,500+ | ₹22.41 | ₹56,025.00 |
| 5,000+ | ₹21.17 | ₹1,05,850.00 |
5 × ₹41.69
₹208.45
excl. GST
₹245.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MCP6022T-I/SN-MS
₹208.45 for 5 + GST
Specifications
- Ib - Input Bias Current
- 400pA
- number of channels
- 2
- Operating Temperature
- -40℃~+85℃
- Input Offset Current(Ios)
- 30pA
- Vos - Input Offset Voltage
- 800uV
- Output Current
- 20mA
- Common Mode Rejection Ratio (CMRR)
- 95dB
- Quiescent Current
- 300uA
- Gain Bandwidth Product
- 11MHz
- Input Offset Voltage Drift(Vos TC)
- 600nV/℃
- Single Supply
- 2.2V~5.5V
- Dual Supply
- -2.75V~-1.1V;1.1V~2.75V
- Slew Rate
- 10V/us
- Noise density(eN)
- 60nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.205 g
