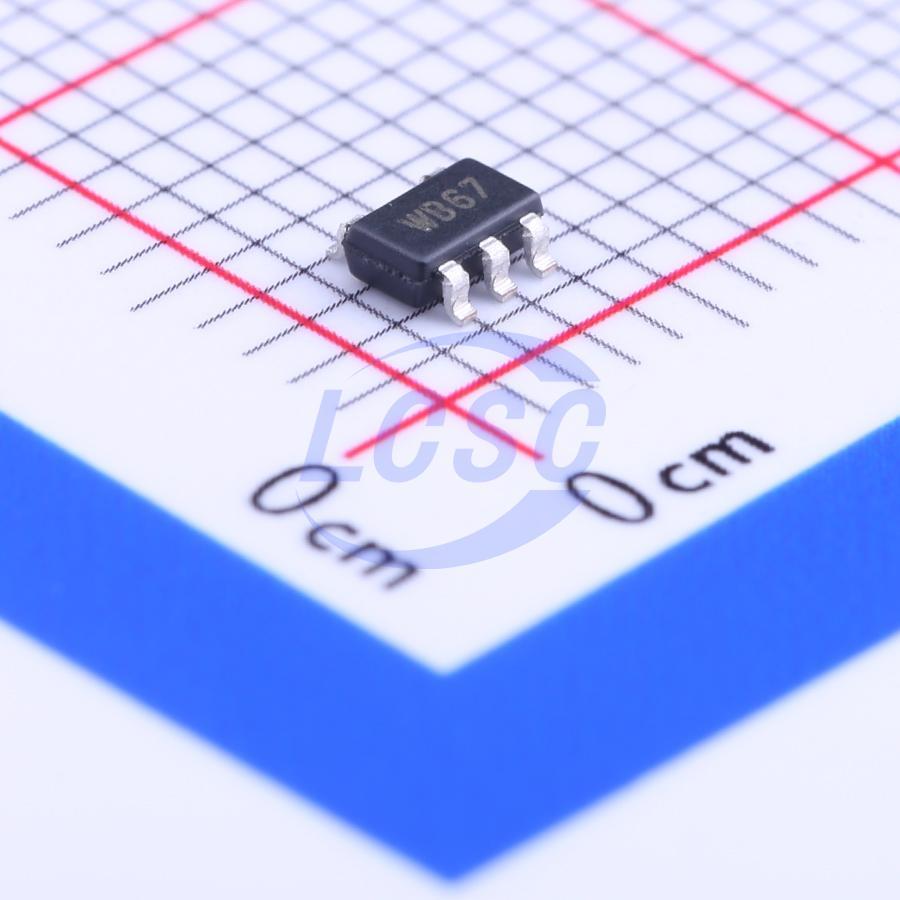

MCP6561T-E/OT
1 100uA 3mV Rail-to-rail input SOT-23-5 Comparators RoHS
1.8V Low-Power Push-Pull Output Comparator
- Manufacturer
- MICROCHIP
- Manufacturer part #
- MCP6561T-E/OT
- Store part #
- C117501
- Package / case
- SOT-23-5
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,930 in stock
#C117501
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹99.26 | ₹99.26 |
| 10+ | ₹81.67 | ₹816.70 |
| 30+ | ₹72.77 | ₹2,183.10 |
| 100+ | ₹64.09 | ₹6,409.00 |
| 500+ | ₹53.87 | ₹26,935.00 |
| 1,000+ | ₹51.27 | ₹51,270.00 |
1 × ₹99.26
₹99.26
excl. GST
₹117.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MCP6561T-E/OT
₹99.26 for 1 + GST
Specifications
- Number of Channels
- 1
- Input Offset Current(Ios)
- 1pA
- Output Mode
- CMOS;TTL
- Operating Temperature
- -40℃~+125℃
- Features
- Built-in hysteresis;ESD protection
- Ib - Input Bias Current
- 1pA
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Output Type
- Push-pull
- Common Mode Rejection Ratio(CMRR)
- 66dB
- Propagation Delay(tpd)
- 56ns
- Input Hysteresis Voltage (Vhys)
- 2.5mV
- Quiescent Current(Iq)
- 100uA
- Vos - Input Offset Voltage
- 3mV
- Maximum Power Supply Range (Vdd-Vss)
- 6.5V
- Rail to Rail
- Rail-to-rail input
- Response Time (tr)
- 20ns
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.043 g
Overview
CMOS/TTL compatible comparators are offered in single, dual, and quad configurations. These comparators are optimized for low power 1.8V, single-supply applications with greater than rail-to-rail input operation. The internal input hysteresis eliminates output switching due to internal input noise voltage, reducing current draw. The push-pull output supports rail-to-rail output swing, and interfaces with CMOS/TTL logic. The output toggle frequency can reach a typical of 4 MHz (typical) while limiting supply current surges and dynamic power consumption during switching. This family operates with single supply voltage of 1.8V to 5.5V while drawing less than 100 μA/comparator of quiescent current (typical).
Applications
- Laptop Computers
- Mobile Phones
- Hand-held Electronics
- RC Timers
- Alarm and Monitoring Circuits
- Window Comparators
- Multivibrators
Key features
- Propagation Delay at 1.8VDD - 56 ns (typical) High-to-Low - 49 ns (typical) Low-to-High
- Low Quiescent Current: 100 μA (typical)
- Input Offset Voltage: ±3 mV (typical)
- Rail-to-Rail Input: VSS - 0.3V to VDD + 0.3V
- CMOS/TTL-Compatible Output
- Wide Supply Voltage Range: 1.8V to 5.5V
- Available in Single, Dual, and Quad
- Packages: SC70-5, SOT-23-5, SOIC, MSOP, TSSOP
