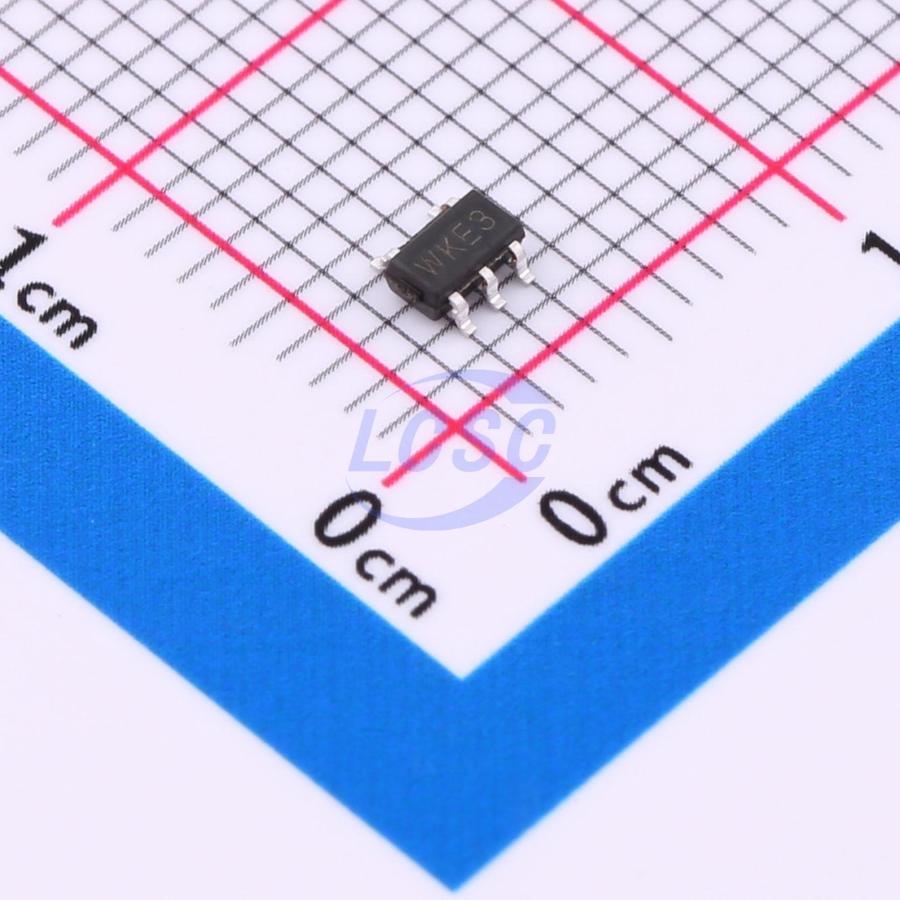

MCP6561UT-E(MS)
800uV 2pA 1 SOT-23-5 Linear Comparators
MCP6561UT-E(MS) Single Comparator: Low-Voltage Operation, Low Power Consumption, and Space-Saving Solution
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MCP6561UT-E(MS)
- Store part #
- C22399585
- Package / case
- SOT-23-5
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,136 in stock
#C22399585
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹47.23 | ₹47.23 |
| 10+ | ₹41.60 | ₹416.00 |
| 30+ | ₹38.87 | ₹1,166.10 |
| 100+ | ₹35.95 | ₹3,595.00 |
| 500+ | ₹34.28 | ₹17,140.00 |
| 1,000+ | ₹33.45 | ₹33,450.00 |
1 × ₹47.23
₹47.23
excl. GST
₹55.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MCP6561UT-E(MS)
₹47.23 for 1 + GST
Specifications
- Output Type
- Open-drain
- Quiescent Current
- 50uA
- Output Mode
- CMOS
- Propagation Delay Time
- 400ns
- Operating Temperature
- -40℃~+85℃
- Dual Supply
- 0.9V~2.75V;-2.75V~-0.9V
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Vos - Input Offset Voltage
- 800uV
- Ib - Input Bias Current
- 2pA
- Number of Channels
- 1
- Input Offset Voltage Drift(Vos TC)
- 0.8uV/℃
- Input Offset Current(Ios)
- 1pA
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.04 g
Overview
The MCP6561UT-E (MS) is a single comparator version that is an open drain output comparator for maximum flexibility. It can operate in the voltage range of 2.1V to 5.5V, and each channel has 50 μA (TYPE) low power consumption at low output. The MCP6561UT-E (MS) are the most cost-effective solutions for applications where low voltage operation, low power and space saving are the primary specifications in circuit design for portable consumer products. The MCP6561UT-E (MS) are available in Green SOT-23-5 packages. It operates over an ambient temperature range of -40°C to +85°C. The MCP6561UT-E(MS) family of comparators can operate up to 5.5V on the supply pin. This standard device has proven ubiquity and versatility across a wide range of applications. This is due to its low power and high speed. The open drain output allows the user to configure the output's logic low voltage (VOL) and can be utilized to enable the comparator to be used in AND functionality.
Applications
- Hysteresis Comparators
- Oscillators
- Window Comparators
- Industrial Equipment
- Test and Measurement
Key features
- Supply Range: +2.1V to +5.5V
- Low Supply Current
- 50μA (TYP) per channel at VS = 5V and output low
- Input Common-Mode Voltage Range Includes Ground
- Low Output Saturation Voltage 100mV Typical
- Open-Drain Output for Maximum Flexibility
- SPECIFIED UP TO +125°C Micro SIZE PACKAGES: SOT23-5
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMV331IDBVR(MS)#C22399582MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 1,155 | ₹19.42 · 1,155 in stock | View |
 | LMV331-MS#C22399587MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 2,310 | ₹14.05 · 2,310 in stock | View |
 | LMV331W5-7(MS)#C22399583MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | On request | Price on request | Quote |
