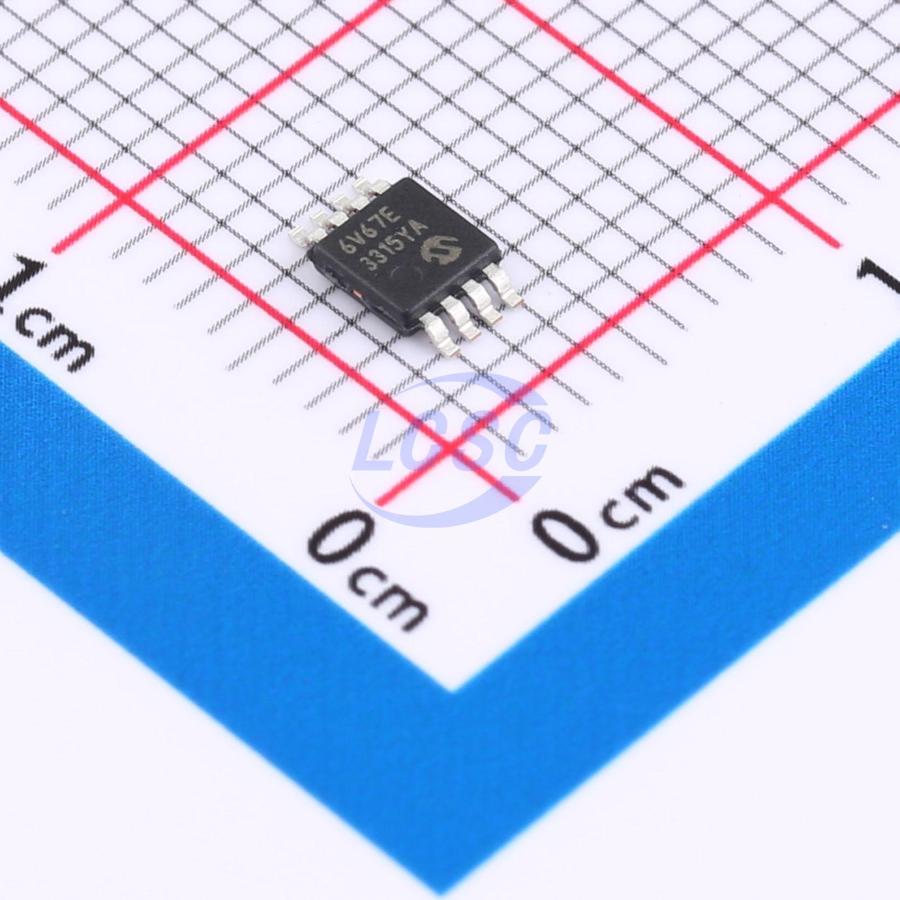

MCP6V67-E/MS

23mA 2 25uV 0.45V/us 111dB 1pA 80uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

MSOP-8ROHS3 CompliantActive

80 μA, 1 MHz Zero-Drift Op Amps

Manufacturer: MICROCHIP
Manufacturer part #: MCP6V67-E/MS
Store part #: C4371093
Package / case: MSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

16 in stock

#C4371093

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹261.87	₹261.87
10+	₹255.39	₹2,553.90
30+	₹251.29	₹7,538.70
100+	₹246.98	₹24,698.00

Quantity (min 1)

1 × ₹261.87

₹261.87

excl. GST

₹309.01 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 100 per tube

MCP6V67-E/MS

₹261.87 for 1 + GST

Specifications

Output Current: 23mA
Number of Channels: 2
Vos - Input Offset Voltage: 25uV
Slew Rate: 0.45V/us
Input Offset Current(Ios): 200pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 111dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 150nV/℃
Quiescent Current: 80uA
Gain Bandwidth Product: 1MHz
Features: Zero drift / auto-zero;Reverse-phase input protection
Input Voltage Noise Density: 26nV/√Hz@2kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 100 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 0.203 g
