Mingda MicroelectronicsDatasheet (PDF)

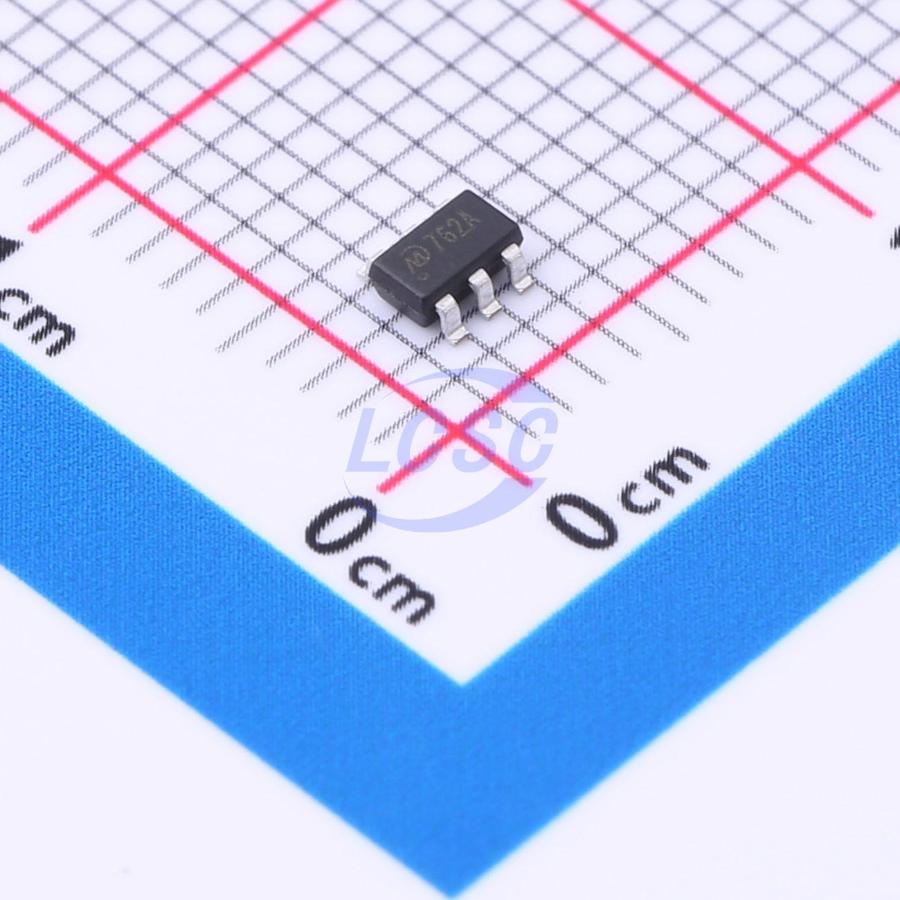

MD7620A
5V~40V SOT-23-6L Motor Drivers, Controllers
SOT-23-6LRoHSActive
Bidirectional magnetic latching relay driver
- Manufacturer
- Mingda Microelectronics
- Manufacturer part #
- MD7620A
- Store part #
- C5334604
- Package / case
- SOT-23-6L
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,240 in stock
#C5334604
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.29 | ₹111.45 |
| 50+ | ₹17.69 | ₹884.50 |
| 150+ | ₹15.72 | ₹2,358.00 |
| 500+ | ₹13.26 | ₹6,630.00 |
| 3,000+ | ₹12.34 | ₹37,020.00 |
| 6,000+ | ₹11.70 | ₹70,200.00 |
5 × ₹22.29
₹111.45
excl. GST
₹131.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MD7620A
₹111.45 for 5 + GST
Specifications
- Features
- Bidirectional relay driver
- Voltage - Supply
- 5V~40V
- Number of Channels
- 2
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 2.1V
- Input Logic Level - Low
- 900mV
- RDS(on)
- 10Ω
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
MD7620A is a bidirectional magnetic latching relay driver IC featuring high voltage tolerance, strong drive capability, low quiescent power consumption, and robust ESD protection. The product is primarily used for closing and opening magnetic latching relays in smart meters, improving drive capability and efficiency, reducing drive power consumption, extending relay service life, and enhancing circuit operational stability and reliability.
Applications
- Smart meters
Key features
- Chip withstand voltage 50V, recommended safe operating voltage 5 - 40V
- Low on-resistance, typical drive current 400mA, maximum drive current 800mA
- High input/output impedance, logic-level translation threshold 1.5V, compatible with various MCU types
- Integrated high-speed freewheeling diode at output, with clamping reverse voltage protection
- Input trigger modes: pulse trigger and level trigger
- Available in SOT23-6 and SOP8 packages
