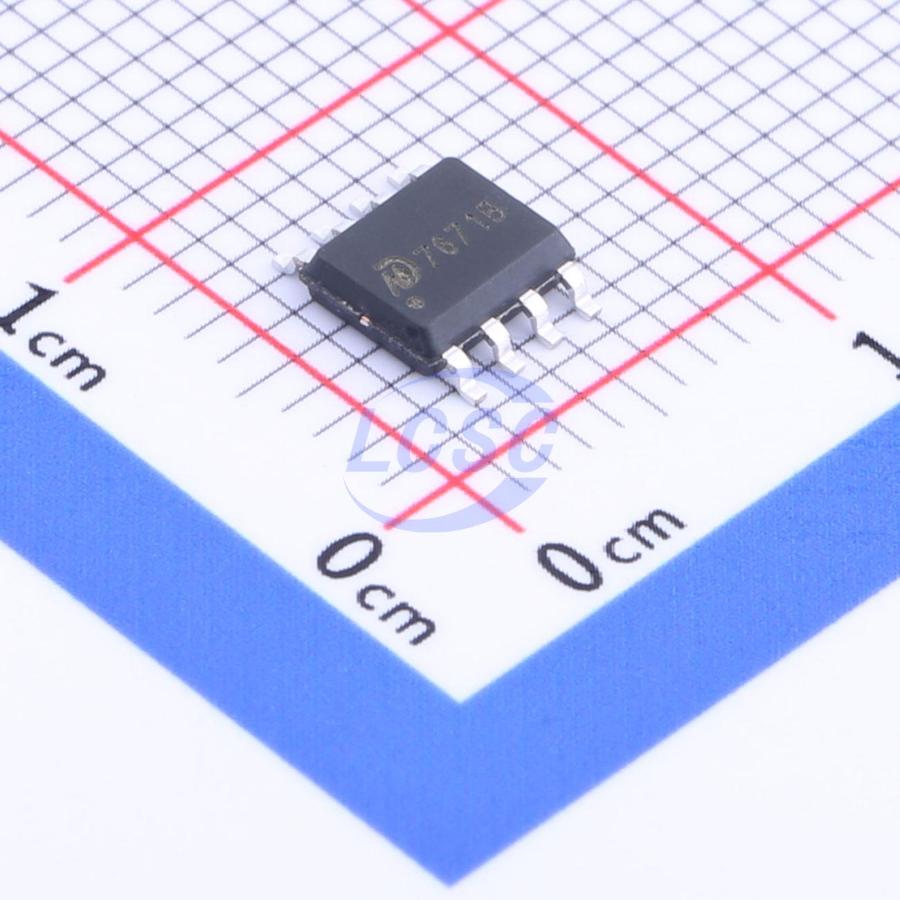

MD7671B50SF4

MD7671 series are highly accurate, low noise, high power supply rejection ratio (PSRR), low-dropout voltage regulator (LDO) with high output current capability manufactured in CMOS processes. It can deliver up to 1A of current while consuming 40μA of quiescent current. Internal circuitry includes a reference voltage generator, an error amplifier, driver transistor, over-current protection circuit, short-circuit protection circuit, thermal shutdown circuit and a phase compensation circuit. The MD7671 operates by default as a fixed output voltage regulator (default output voltage: 5V) while usage of an external resistor divider allows adjustable out voltages as low as 0.7V. Additional features include enable function, power good flag and output noise reduction pin.

Applications

• Smart wearer
• Long-life battery-powered devices
• Portable mobile devices, such as mobile phones, cameras, and so on
• Wireless communication equipment

Key features

• Highly Accurate: ±2%
• Low Quiescent Current: 40μA
• Dropout Voltage: 160mV@1A
• Maximum Output Current: 1A
• Input Voltage Range: 2~6V
• Output Voltage Noise: 115μVrms@VOUT=3.3V
• High PSRR: 70dB@1kHz
• Temperature Stability: ±50ppm/℃
• ON/OFF Logic = Enable High
• Power Good and Enable Functions
• Standby Current: 10nA
• COUT Discharge Circuit when EN Disable is Active
• Protections Circuits: Current Limit, Short Circuit, and Thermal Protections
• Output Capacitor: Low ESR Ceramic Capacitor Compatible
• RoHS compliant “Green”/Halogen Free
• 8-pin Exposed pad SOIC (ESOP8) packages
