MICRONEDatasheet (PDF)

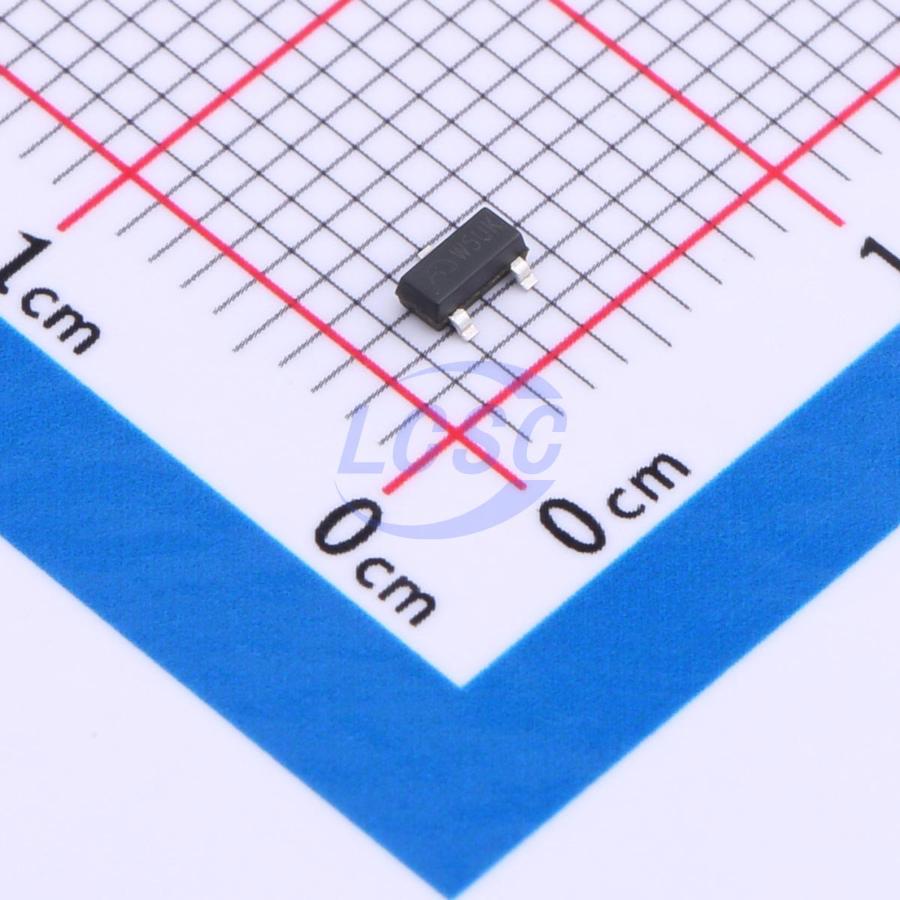

ME2188A30XG
Boost Switching Regulator IC 3V 1 Output 300mA SOT-23
SOT-23RoHSActive
High-efficiency PFM synchronous boost DC-DC conversion chip
- Manufacturer
- MICRONE
- Manufacturer part #
- ME2188A30XG
- Store part #
- C2835777
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,810 in stock
#C2835777
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.64 | ₹96.40 |
| 100+ | ₹7.67 | ₹767.00 |
| 300+ | ₹6.68 | ₹2,004.00 |
| 3,000+ | ₹5.74 | ₹17,220.00 |
| 6,000+ | ₹5.15 | ₹30,900.00 |
| 9,000+ | ₹4.84 | ₹43,560.00 |
10 × ₹9.64
₹96.40
excl. GST
₹113.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME2188A30XG
₹96.40 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 320kHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Light load efficient mode
- Output Type
- Fixed
- Topology
- Boost
- Operating Voltage
- 900mV~5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 3V
- Output Current
- 300mA
- Quiescent Current
- 7uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.044 g
Overview
ME2188 is a series of PFM synchronous boost DC-DC converter ICs featuring high conversion efficiency, low power consumption, and high operating frequency. The IC employs a PFM control circuit that automatically adjusts the duty cycle based on load current, delivering low ripple, high efficiency, and a wide output voltage range across the product series. The integrated synchronous switches and low quiescent current effectively improve DC-DC conversion efficiency and extend device operating life. With only three external components, the IC can boost a low input battery voltage up to the required operating voltage.
Applications
- Electronic devices powered by 1~2 dry-cell batteries
- Digital cameras
- LED flashlights
- LED lighting
- Blood pressure monitors
- Remote-controlled toys
- Wireless headphones
- Wireless mice and keyboards
- Medical devices
- Automotive anti-theft systems
- Chargers
- VCR
- PDAs and other handheld electronic devices
Key features
- High efficiency: 93%
- Low startup voltage: 0.9V @IOUT=1mA
- Low quiescent current: 7uA
- Frequency: 320KHz
- Selectable output voltage: 1.9V~5.0V
- Output accuracy: ±2%
- Output current: 300mA
- Low ripple, low noise
- Synchronous rectification
